Isolationen beskytter både computer og måleresultaterne mod fejl, grundet forskelle i stelpotentialer.

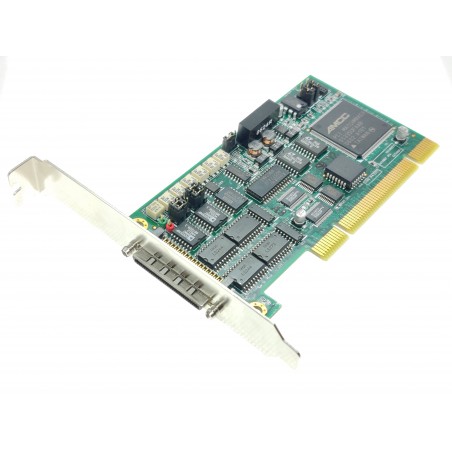

Supports a 32-bit 5 V PCI bus
12-bit A/D resolution
Up to 100 kS/s sampling rate
32-CH single-ended or 16-CH differential inputs
On-board 1 k-sample A/D FIFO
Bipolar or unipolar analog input ranges
Programmable gains of x1, x10, x100
Automatic analog inputs scanning

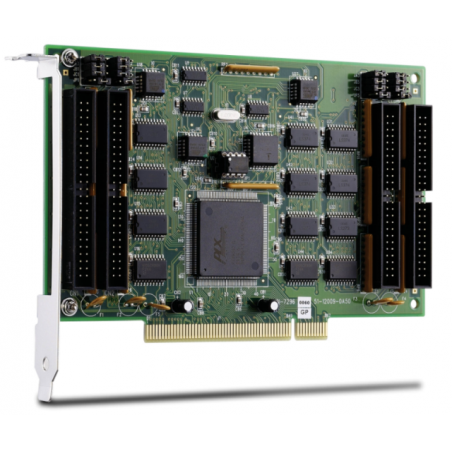

PCI interface 96-CH digital TTL/DTL inputs/outputs Emulates 4/2/1 industry standard 8255 PPI (mode 0) Direct interface with OPTO-22 compatible I/O modules Output port status read back On board 8254 timer/counter chip Programmable interrupt source Adlink PCI-7296

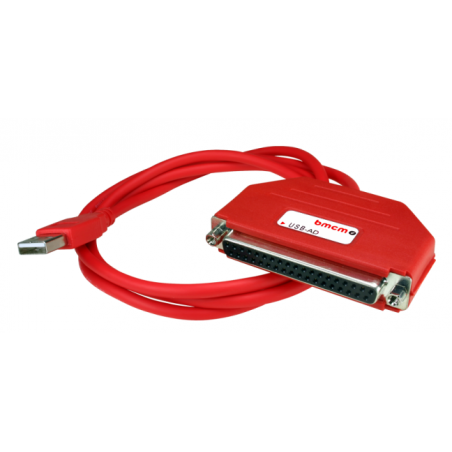

16 analog inputs via USB port, 10-100S / S
Resolution: 12 bit
Sample-speed: 10Hz per channel
1 Analog output +/- 5V
4 digital outputs TTL ( CMOS
4 digital inputs TTL / CMOS
Power supplied from the USB port
DAQ Software: Purchase NextView

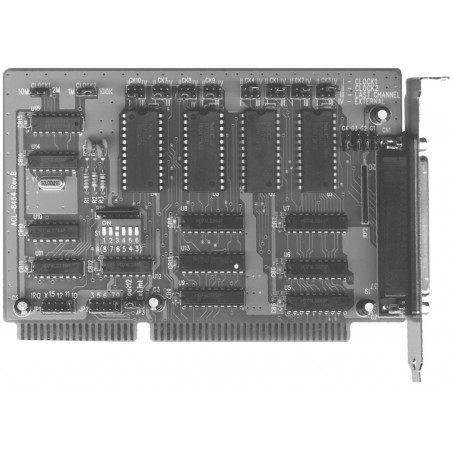

8-CH timers/counters
2-CH cascaded 32-bit timer with 1 MHz base clock
On-board multiple base clocks ranging from 100 kHz to 2 MHz
External gate control and clock inputs for each counter
Inverted gate signals for 4-CH synchronized frequency measurement
Multiple interrupt sources from counter outputs, timer outputs and external interrupt inputs
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

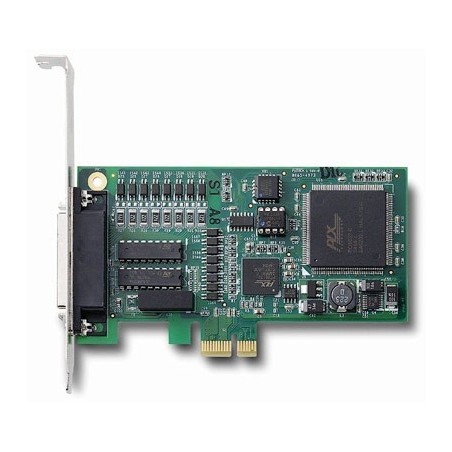

Supports a 32-bit 5 V PCIe Express bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
PCI Express card with 96 TTL I/O channels and 3 counters
X1 PCI Express interface 96-CH digital TTL/DTL inputs/outputs Emulates 4/2/1 industry standard 8255 PPI (mode 0) Direct interface with OPTO-22 compatible I/O modules Output port status read back On board 8254 timer/counter chip Programmable interrupt source Support Windows 7/8 X64/X86 and Windows 2008 R2
Support a 32-bit 3.3 V or 5 V PCI bus (LPCI-7200S)
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports handshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

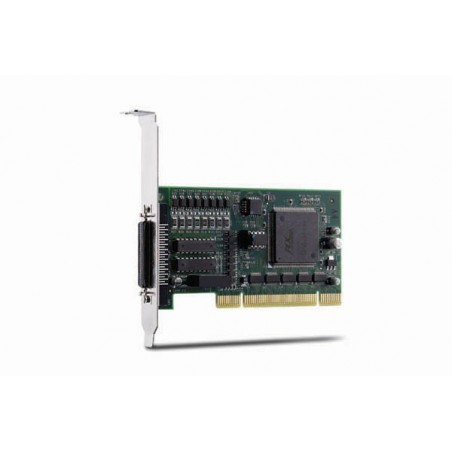

Supports a 32-bit 5 V PCI bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

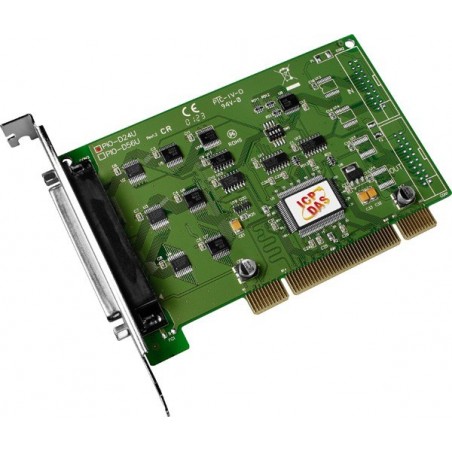

Universal PCI interface til +5 V and +3.3 V PCI bus.
Op til 24 digitale I/O kanaler
Programmerbare I/O porte
DIO response time 0.77 μs (1.3 MHz max.)
WIN Vista,98/NT/2000 and XP/2003 32-bit version OS

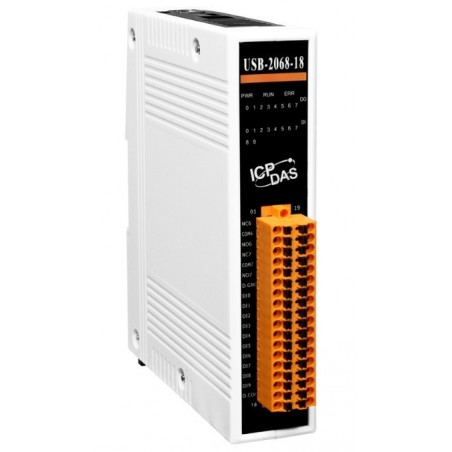

I/O modul 10 x digitale input 8 x relæ output (Type C) Forsynes via USB Alle DI kan bruges som 32-bit tæller 8kV ESD beskyttelse Udvidet temperatur -25 til +75 ° Isolation: 3000 VDC Watchdog Benytter ikke driver

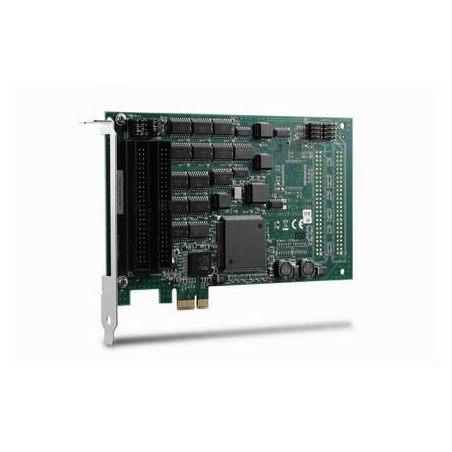

Supports a 32-bit 5 V PCI Express bus
24/48/96-CH digital TTL/DTL inputs/outputs
Emulates 2 industry standard 8255 PPI (mode 0)
Support Windows 7/8 X64/X86 and Windows 2008 R2
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
12V and 5V power supply to OPTO-22 (Direct interface with OPTO-22)
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

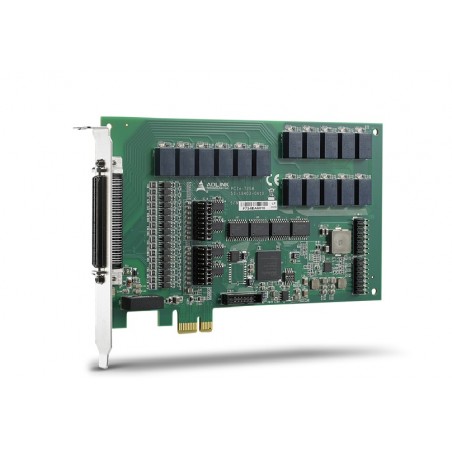

Supports a PCI Express x1, Plug and Play (PCIe-7256)
16-CH latching SPDT relay outputs
Power saving on relay actuation
Output status unchanged when power-off
On-board LED indicators for relay status
16-CH isolated DI
Change-of-status (COS) interrupt
Board ID

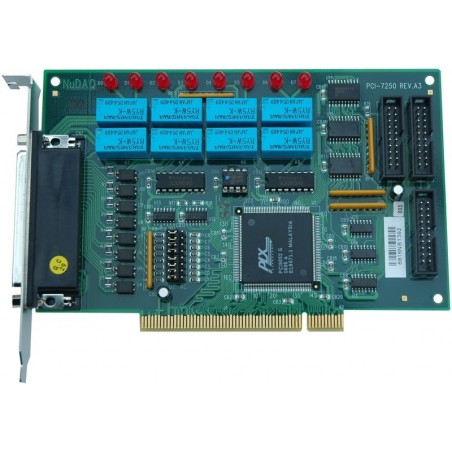

Supports a 32-bit 5 V PCI bus
8-CH relay outputs
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI
Extendable up to 32-CH relay outputs
8-CH high power relay outputs (5A @ 250VAC or 30VDC)
8-CH isolated digital inputs with AC-filter
1-CH emergency shutdown input
Pluggable connector for high current input
Supports universal 32-bit 3.3V and 5V PCI bus
Initial state and safety state setting by DIP switches
Built-in watchdog timer
Supporterer 3.3 V eller 5 V PCI bus
12-bit A/D og sampling rate op til 110kS/s
16-CH single-ended or 8-CH differential inputs
On-board A/D FIFO
Bipolar eller unipolar analog input område
16-CH TTL DI og 16-CH TTL DO
2-CH 12-bit multiplying analog outputs

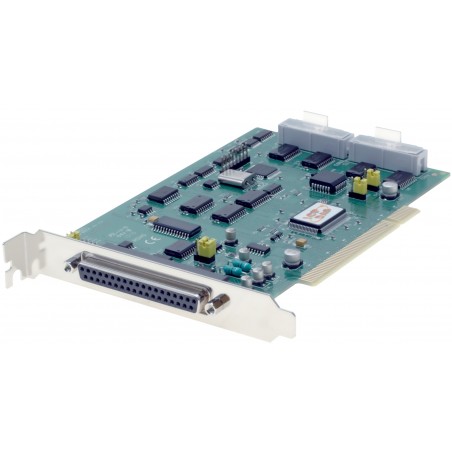

12 bit A / D card with programmable gain
16 "single-ended" or 8 differential
45Khz for sharing between active channels (Conversion time: 8 μs)
D / A output: 1 output with 12 bit resolution
Area: 0-5 V and 0-10 V; linearity: ½ bit; stabilization time: 0.6 μs
Didital I / O: 16 TTL input and 16 TTL outputs
12 bit ver. incl. drivers for DOS and Win.
Connectors: DB37 female connector for analogue inputs and outputs
2 x 20 pin IDC connectors for 16 digital inputs and outputs and counters
