Convert copper cable data communications to optical fiber cable data communication and display versa with a media converter.
A media converter is a simple network device that makes it possible to connect two different types of media, in this case copper network cable with fiber optic cables.
When selecting a media converter, it is very important that the converters at each end of the fiber cable are identical . It just means that they have to run at the same speed, eg. 100Mbit or 1000Mbit Gigabit media converter. They must also fit the fiber cable and the fiber plug. There are 3 standard fiber cable types. Single Mode: 9 / 125my. Multi Mode is either 62.5 / 126my or 50 / 125my.
Media converters can be with fiber connectors - ST, SC, LC mm. Almost everyone has transmitter and receiver plugs (RX / TX) and the data stream is simultaneous - called duplex. Most media converters are with insert slot for SFP module (GBIC) available in many variants, and here the choice must be considered with care. Some media converters can communicate over 1 fiber (simplex), and here the SFP module must be of the WDM type (Wavelength Division Multiplexing), which means that the transmitter (TX) is a (light) wavelength 1310nm and the receiver (RX) is on 1550nm. The WMD Media converter at the other end of the fiber cable has TX of 1550nm and RX of 1310nm. This means that the 2 data streams in this simple fiber do not interfere with each other. It also means that there can be twice as many media converters as normal. Fiber cables is available from a single fiber to fiber cables with an incredible number of single fibers.
Media converters are also available with PoE on the RJ45 connector and can power an IP camera via the network cable. Media converters are also available with 2 fiber ports and an RJ45 port. The purpose is to be able to connect a Single Mode fiber network with a Multi Mode fiber network and at the same time have an RJ45 connection to one device.
Media converters are available as un-managed - only standard function to connect RJ45 with a fiber cable.
Media converters available as managed - have the ability to customize.
Industrial Single Mode Media Converter
100Mbit FX
Single Mode fiber (9/125)
SC - duplex
10/100Mbit RJ45
IEEE802.3U
Fiber: 15 km
RJ45 100 meters
Supply voltage: 5VDC
Temperature: 0-50°C
Dimensions: 94 x 70 x 26 mm
Weight: 0.2kg
Converts the AUI port to the fiber cable connection.
Only intended for mounting directly on the network card or HUB
part for isolating the PC from the network or against the frame potential; differences between different supply networks
Max. cable lengths: AUI 50 meters, fiber optic 2000 meters
Power supplied from the AUI port that delivers 10 - 15 VDC / 200 mA
Plugs: DB15 male connector for AUI port and ST connector for fiber optic cable
Media Converter for 10Gbit Fiber
1 x RJ45 10Gbit/5Gbit/2.5Gbit/1Gbit/100Mbit Base-T
1 x 10GBase-X SFP+ Slot
For 50/125my and 62.5/125my, Single Mode or Multi Mode
SFP Module is by default for LC connectors, Duplex, Single Mode / Multi Mode.
Purchase SFP Module
Supply voltage: 5VDC
Power supply included
Operating temperature 0 to +50°C
Dimensions: 94 x 70 x 26 mm
10Gbit fiber the RJ45 Media converter
For Single Mode or Multi Mode SFP module
Extended temperature range
1 x RJ45 10G/5G/2.5G/1G/100M BASE-T
1 x 10GBASE-SR/LR SFP slot
The SFP module is standard with an LC connector
Additional SFP module
Supply voltage: 12 - 48VDC
PSU not included
Operating temperature -40 to +75°C
YOUR bracket
AUI converter to UTP cable, external supply
1 x DB15 AUI female 10 Base-5 (AUI)
1 x RJ45 female 10 Base-T
Max. cable length: max. 500 m per (thick Ethernet), max. 100 m per UTP cable
LED: POWER, COL, LINK, TP / RCV
IEEE 802.3 10Base-T / AUI Ethernet
IEEE 802.2 10Base-T/10Base-2
FCC Class A Subpart B or Part15 Requirements
AUI converter to UTP cable
1 x DB15 male to 10 Base-5 (AUI)
1 x RJ45 jack for 10 Base-T
Max cable length: 100m max per UTP cables
LED: POWER, COL, LINK, TP/RCV
IEEE 802.3 10Base-T/AUI Ethernet
FCC Class A Subpart B of Part15 Requirement
No need for external power supply
For the interconnection of single mode and multimode fiber networks
1000Base-SX to 1000Base-LX, SM, 850/1310 nm
only to Gigabit fiber networks.
IEEE 802.3 / u / ab 10/100 / 1000BaseT
IEEE 802.3z 1000BaseX
Jumbo Frame (9K bytes)
Store-and-Forward Switching Mechanism
Auto-Crossover for MDI / MDIX in TP Port
Auto Negotiation in TP Port
Flow Control
Link Alarm
Auto & amp; Force Mode Configuration
Dimensions: 71 x 94 x 26 mm for DC5 V, 1.5 A
1 x 10/100/1000Mbit RJ45
1 x 1000Mbit SFP (only for Gigabit SFP modules)
up to 80km with Single Mode fiber
up to 550m with Multi Mode fiber
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
BIDI with LC or with SC (Simplex fiber)
Purchase additional Gigabit SFP modules.
up to 100m with Cat.5e or Cat.6
5% to 95% humidity
5VDC power supply included
-0°C to +70°C

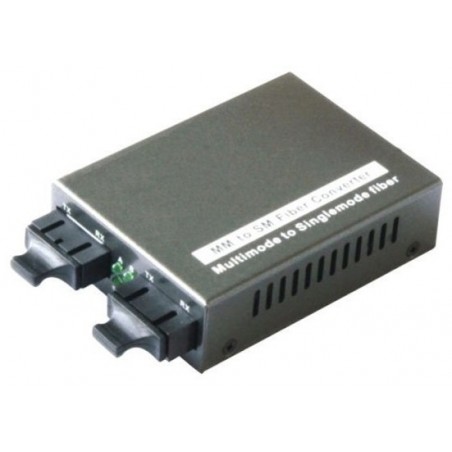

Connect Multimode fiber network with single mode fiber network
1 x 100Mbit Single Mode SC
1 x 100Mbit Multimode SC
Wavelength: 1310 / 1310nm
100Base-SX / LX fiber network
5VDC / 2A adapter included
Media Converter 100Mbit Multimode ST duplex - 2km
1 x RJ45 10 / 100Mbit
1 x ST 100Mbit
1310nm
5VDC
Dimensions: 97 x 69 x 26 mm
Media converter for 100Mbit Multi Mode Fiber SC
RJ45 10/100Mbit
Fiber 100Mbit 62.5/125my and 50/125my
-40 to +75°C
12 - 48 VDC Redundant PSU input
10 / 100Base-T to 100Base-FX duplex multi mode
Multi mode up to 2km
SC - 50my and 62,5my - 1310nm
Temperatur: -40 - +75°C
5VDC PSU included.
WDN media converter for 1-core fiber, Singlemode SC.
1 x RJ45 10/100 / 1000Base-TX | 1 x 1-core (simples) single mode fiber with SC
Must be used with ETH-RJ45G-WDM SA
Up to 15 km
WDM wavelenght-division-multiplexing - only for simplex fiber cable
Must be WDM converter at both ends of the fiber
10/100 / 1000Base-TX to 1000Base-LX single mode, 15 km
WDM Wavelength Division Multiplexing - Simplex fiber cable only
Must be WDM converter at both ends of the fiber.
100/1000Mbit fiber media converter RJ45
1 x RJ45 10/100/1000Mbit BASE-T
1 x SFP slot 100 / 1000Mbit BASE-X dual mode
Supports WDM SFP modules (Bi-Directional data 1 on fiber)
WDM SFP module have wavelengths 1310nm and 1550nm
IEEE 802.3 / 802.3u / 802.3ab / 802.3z
IP30 metal housing
DIN rail and wall mounting design
Supply voltage: 12VDC to 48VDC polarity protected
AC supply voltage: 24VAC / 50Hz
PSU not included
Operating temperature: -40°C to +75°C
Media converter for 100/1000Base-X SFP module
Can power equipment with PoE+
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
10/100/1000Base-TX
56VDC PSU included.
Mid-span PoE (PSE) (4.5/7.8)
PoE power is max. 30 Watt
Alarm in case of link failure
100 / 1000Mbit Media Converter with extended temperature
1 x RJ45 10/100 / 1000BASE-T
1 x SFP slot 100 / 1000Mbit
SFP module is as standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
Supply voltage: 9 - 48VDC redundant power
Can also be connected to 24VAC
consumption: 2Watt
Power not supplied
Dimensions: 104 x 70 x 30 mm
IP30 metal housing
DIN rail and wall mounting
Weight: 251G
operating temperature -40 to +75°C
