Intel® Celeron® J6412 CPU Elkhart Lake (2.0GHz/2.6GHz)
1 x SDRAM DDR4 3200 MHz (max. 32G)
4 x Gigabit LAN, 1 x Intel I210AT GbE controller, 3 x Intel I226-V 2.5GbE controllers
2 x USB 2.0
2 x USB 3.1
1 x HDMI up to 4096x2160 @ 24 Hz
1 x DP up to 4096 x 2160 @ 60 Hz
SIM slot for 3G/4G
Supports M.2 SSD
M.2 Wi-Fi
1 x MPCIe (PCIe/USB 2.0 signal supported)
1 x E-Key m.2 2230 slot (PCIe/USB2.0 signal supported)
1 x m.2 2242 SSD slot (SATA signal supported
165 x 125 x 45mm (W x HXD)
DC 12-24V, 2-pin phoenix connector
Windows 10, Ubuntu 20.04

Industry AI computing platform
Supports NVIDIA RTX 3070 or dual Tesla T4 GPUs
Supports 10th Gen Intel® Xeon®/Core ™ processor
Intel Gen. W480E Chipset
2 x DDR4 SO-DIMM, supports ECC/non ECC type up to 2666 MHz, 64GB
2x USB 3.2 Gen2, 1x internal usb dongle.
2 x RJ-45 ports for GbE/2.5GbE
6 x RJ-45 ports for PoE (60W)
DC power input: 12 - 36V
Dimensions: 181 x 320 x 250 mm
Weight: 7.4 kg (16.31 lb)

Intel Gen. 13/12 LGA 1700 35W Processor Core/Pentium/Celeron
Intel R680E
TPM 2.0
Max. 64GB RAM
Quad display: 1xVGA (1920x1200), 3xDP 4096x2160), (3xHDMI 4096x2160 on special inquiry)
9 x USB3.2 (Gen.2)
6 x RS232/422/485
2 x 2.5GbE Intel i226-IT
4 x GbE Intel i350-AM4 or 4 x GbE POE+ (Expansion modul on request)
Audio line in/out
8 x Isolated DI and 8 Isolated DO (2 x 9-pin Terminal block)
2x 2.5" Sata III
2 x M.2
2 x SIM socket
-40°C ~ 70°C
240x200x88mm
9-48V DC Input with Ignition Control
CE/FCC Class A
OS Support: Windows 10 IoT, Windows 11 (IoT/Professional), Linux

21.5" TFT 1920x1080
standard 250Nits (on special request 100 or 1500 nits)
PCAB Multi Touch Screen, Support touch with glove/ Rain mode
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) Gen 11.
1 x SO-DIMM DDR4 3200MHz, MAX.32GB
M12 waterproff connectors
2 x Rj45 Intel Ethernet
1 x M.2 2280 NVMe SSD
1 x RS232
1x SATAIII
TPM 2.0
IP67K
VESA: 200x100 M4
Addons: "Optical Bonding", YOKE mount
541x337x56.2mm
10Kg
Stainless Housing SUS 316/ AISI 316
10% to 90% RH, Non­Condensing
Working Temperature 0°C to 45°C
12Vdc (M12 Type)
CE, FCC

1.91 GHz Intel Atom E3845 CPU
Wall mount/VESA mount
1x 204-Pin SO-DIMM DDR3L-1066/1333Mhz, MAX. 8GB
2 x RS232/422/485 (M12)
2 x USB 2.0 (M12)
2 x 10/100/1000 Mbps Ethernet Intel i210-IT (M12)
1 x VGA
1 x 2.5” HDD drive bay (max. up 9.5 mm height)
1 x mSATA (enabled in BIOS setting)
1 x CFast™
-30°C to +60°C
210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
9 to 36 VDC power input (M12)
OS Support: Win 10 IoT, WE8S, WES7, Linux

15.6" PanelPC TFT-LCD with 1920x1080 resolution.

300 cd/m² (nits) luminance.

Contrast ratio: 500:1

Resistive Touch (USB)

Intel Celeron J1900 SoC

Option: i3,i5,i7 price reservation (when ordering, contact our sales department)

DDR3L/DDR4 (depends on CPU)

2 x USB port

1 x Gigabit Ethernet.

Robust stainless steel housing

6 pages IP65 rating for industrial environments.

VESA mounting 100/75 mm

Wall mounting bracket included

422 x 272 x 47mm (WxHxD)

Supply voltage: 24VDC

Power supply included

i7 Haswell i7 4578U 3.0GHz, Dual Core, 4 Threads 4MB Cache
2 x SO-DIMM DDR3L, Max. 16GB
TPD 28W
Intel Irus Graphics 5100
2 x Intel Gbit RJ45, Wake on Lan, PXE
6 x RS232/422/485 (2 is BIOS select RS422/485)
8 x USB (4xUSB3.0, 4x USB2.0)
SIM card slot
GPIO
HDMI, VGA (dual display support)
1x MSATA3.0, 1x mini PCIe
-20 ~ +75 Centigrade (requires special RAM)
OS Support: windows 7, 8, Windows 10, Linux
212,5x149,5x52mm
12Vdc

Fanless design (embedded heat pipe cooling solution)

12/13 generation CoreTM i9/i7/i5/i3 processor (Alder Lake-S/Raptor Lake-S)

Up to 60W GPU MXM module expansion

802.3af (15.4W)/802.3at(25.5W) Gigabit PoE ports

DP x2 + HDMI x 1 and DVI x 1 (supports 4 independent displays)

On/off delay control / configurable ignition current control

Supports TPM 2.0 and Time-Sensitive Networking (TSN)

Two mPCIe for optional WiFi/3G/4G/GPS or I/O expansion supported

Front-accessible I/O

1 x M.2 B for storage or 5G/LTE +1 x M.2 E-key for WiFi/BT

1 x M.2 M for NVMe SSD

285x230x 90 mm (9.84" x11.50" x 3.54"), fanless 285x230x110 mm (9.84" x11.50" x 4.33"), w/ FAN

DC 9~36V input

CE, FCC Class A, E-mark

optional extras

19" TFT-LCD Panel PC
IP65 front
Resolution: 1280*1024
250 nits
5-wire resistive touch screen (capacitive touch on request)
Intel Celeron J4125/J6412 CPU / Core i5 /i7
RAM: 1x SO-DIMM DDR4 (celeron) max 16 GB, i5/i7 2x SO-DIMM DDR4 max 32 GB
1 x M.2 2242/2260/2280 SATA
1 x SATA (2.5'' SATA)
1 x M.2 2280 NVME
MPCIe: M.2 3042/3052 for 3G/4G/5G with built-in SIM slot, M.2 2230 WiFi & BT
2x RJ45 Intel i225V (on special request 2 more can be added)
USB: Celeron version: 4*USB2.0+2*USB3.0 (J4125/J6412), i5/i7 version 4*USB3.0+2*USB2.0
COM: 2x DB RS-232/422/485 port, 4*RS232 in expansion port
GPIO: 1* 10 bit GPIO Inside the expansion port
Power supply: 9-36V DC plug
Working temperature: With air flow -10 ~ 60° C
Anti-vibration with SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hour/axis
Anti-shock with SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
437.27x361.27x68.8mm
OS Support: Windows 10 / Ubuntu, CentOS

15.5" TFT LED Touch screen Display
Screen resolution of 1920 x 1080
Brightness 600 cd/m²
Multi PCAP touch
Intel Core i3-8145U 2.1 GHz
4GB DDR4L RAM, expandable to 32GB
HDMI, DisplayPort
2 x LAN I211-AT GbE LAN
4 x USB 3.0
IDEC switch Start/Reset/Key/Stop switch (optional)
IP65-full: Water and dust resistant
OS - supports: Windows 7/8/10, Linux, Unix, QNX
Optional: WiFi and Bluetooth
Robust construction
Operating temperatures from -10 to +70°C
External I/O switch
Dimensions: 400 x 315 x 130 mm
Weight: 16kg
Supply voltage: 9-36VDC
Power consumption: <35W

17" TFT LED Touch screen Display
Screen resolution of 1280 x 1024
Brightness 400 cd/m²
Resistive touch
Intel Celeron Quad Core, 2.0 GHz
4GB DDR3L RAM, expandable to 8GB
VGA, HDMI
1 x LAN Intel 82583V 1000Mbps
3 x USB 2.0, 1 x USB 3.0
1 x COM port
IDEC switch Start/Select/Reset/Key/Stop switch (optional)
IP65 rated water and dust resistant
OS - supports: Windows 7/8/10, Linux, Unix, QNX
Optional: WiFi and Bluetooth
Robust construction
Operating temperatures from -10 to +60°C
External I/O switch
Dimensions: 400 x 390 x 155 mm
Supply voltage: 12-24VDC
Purchase extended supply voltage +9V-36V

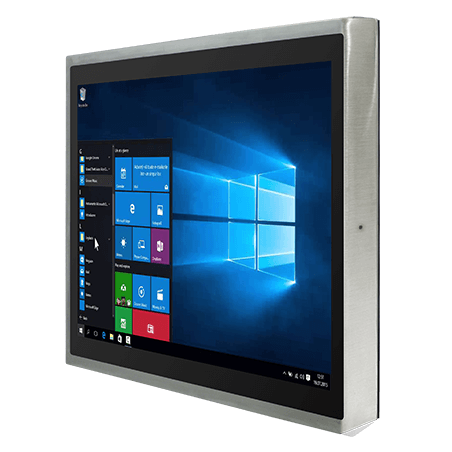

11th Gen of Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
17" 1280x1024, PCAP touch
1000 nits (Optical bonding)
1 x SO-DIMM, DDR4 up to 3200 MHz
M.2 M-Key SATA SSD or NVMe SSD
2x USB 2.0
1x RS232
1x RJ45-10/100/1000 LAN
Full IP65
Fanless
VESA mounting, stainless steel
Operating temperature -10°C to 45°C
337.920x270.336 mm
12VDC power input

24” TFT-LCD with Ultra-high Brightness up to 1,500 nits
Reolution 1920 x 1080
Onboard 8th Generation Intel® Core™ U Series Processor
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Supports Triple Independent Display
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (with optional CFM module)
Supports 2x PoE+ Function (with optional CFM module)
1x PCI or 1x PCIe Slot for Add-on Card Expansion: Max. Length 180mm including Bracket (with optional riser card)
Wide Range Operating Temperature -20°C to 70°C
Designed with Rugged Aluminum Die-casting Front Bezel
True Flat IP65 Compliant Front Panel Protection
Supports Panel / VESA / Rack Mounting

Intel Celeron® J6413, Quad Core 1.8 GHz processor
1x 260-pin DDR4 SODIMM. Max. up to 32 GB
Dual independent screen with 2x screen port
1x 2.5 GbE, 1x GbE supports (Wake-on-LAN and PXE)
1x 2.5" SATA HDD bay, 1x mSATA
1x M.2 (B-KEY, 2242/3042/3052, supports 4G/LTE)
1x full-size mini-PCIe for communication or expansion modules
2x RS-232/422/485
3x USB 3.2 Gen2, 1x USB 2.0
M.2
SIM socket
watchdog
9 to 36VDC Wide Range Power Input supporting AT/ATX mode
Wide operating temperature -20°C to 50°C
TPM 2.0 supported
With 1x Universal expansion slot
142 (W) x 101.2 (D) x 41.5 (H) mm
UL listed

19" TFT-LCD 250nits
Resolution: 1280x1024
Front panel IP65
Intel® Celeron® J1900,Quad-core, Up to 2.42GHz
4GB RAM onboard
2 x RJ45
1 x HDMI
4 x USB2.0
6 x RS-232 (2x DB9, 4x terminal)
9-36V DC 3 pin terminal block
-20 ~ 60° C working temperature
Panel Mounting/ 75mm VESA mounting
Dimensions 437.27 x 316.27 x 60.3 mm

9"

Resistive ARM/NXP i.MX8MMini 1.6GHz

2GB

RS-232 / RS-485

USB

GLAN

Audio

Mini PCIe

eMMC

microSD

9"

Resistive Capacitive ARM/NXP i.MX8MMini 1.6GHz

1GB 2GB 4GB

RS-232 RS-485

USB

GLAN

Mini PCIe

eMMC

microSD

Supports 10th Gen Intel® Core™ Desktop processors
AI solution for Transportation
Max. 128GB RAM
2x Gbit Lan M12
4x USB
2x SIM Slot
2x 2.5" SSD , RAID 0/1/5
1Xmicro SSD
1x HDMI
1x DVI-D
1 x RS-485, 1 x RS232/485 Isolated
M12 connectores
Up to 10x GbE ports (8x with PoE capability)
10G LAN (need to be ordered special)
Supports Intel® Movidus Vision Acceleration M.2 modules
Supports Wi-Fi 6 CNVi, dual WWAN channels
1x USB Type-C with graphics output for quick setting and diagnostics
EN50155 (2021) / EN45545-2 certified

CPU support gen.6/7 Intel® Xeon® E3/ 6th & 7th generation Core™ i7/ i5/ i3 processor in LGA1151 socket
Fanless design
4 x 802.3af Gigabit PoE ports by M12 connectors
Support RTC battery service window
2 x mPCIe slots for optional Wi-Fi/ BT/ 3G/ 4G/ GPS modules
1 x M.2 (NGFF) M-Key(2242) socket for storage module
1 x SIM card sockets
Dimensions (W x D x H) 225 x 292 x 90 mm
Wide temperature range from -40°C to 70°C
Wide range DC power input (9~36V)
EN-50155 certified

CPU Xeon, i9,i7,i5,i3 Gen.10
2x LAN
6x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI 4096x2160 at 30Hz
2x DisplayPort 4096x2304@60Hz (according to CPU specifications)
1 x VGA
3 x full-size Mini-PCIe connectors
2 x SIM slots
4 x CMI interface: different I/O moduls see picture
1 x CFM IGN Interface need to be ordere separately
2 x PCI/PCIe slots
Vibration/Shock MIL-STD-810G
CE, UKCA, FCC, ICES-003 Class A, EN50121-3-2 (Rail), IEC/EN 62368-1
REQUEST about additional information with details
