2½" embedded PC with HDMI output
Small embedded PC, fanless with Intel Atom CPU
Subcategories
Small embedded PC, fanless with Intel Atom CPU

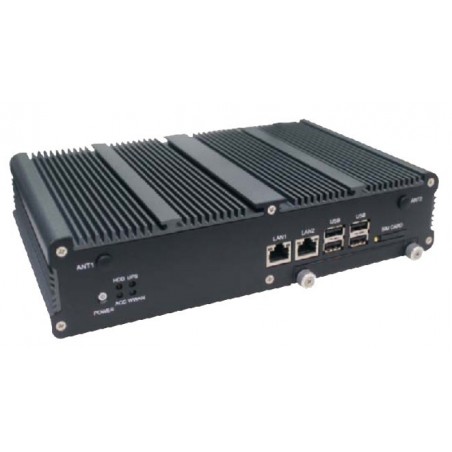

Blæserfri PC m/AMD 1.00 GHz Dual Core CPU.
Fuldt bestykket industri PC, 5 x gigabit netværk, u/OS.

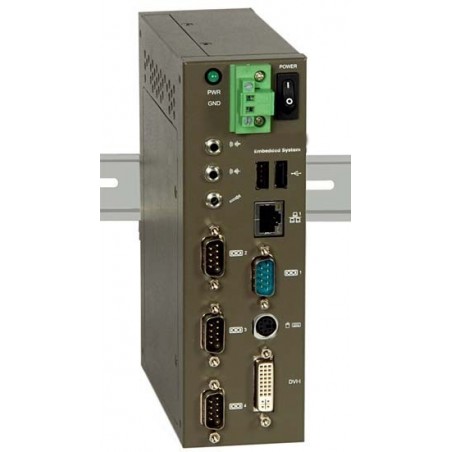

Compact PC Dual Core Atom 1.6 GHz CPU.
Dual Display VGA, DVI.
2GB RAM - not included.
4 x COM.
1 x RJ45 Ethernet
2 x USB.
DIN mount.
DOS / WIN XP / WIN 7 support - purchased separately
12V DC
Ultra compact 150mm x 100mm

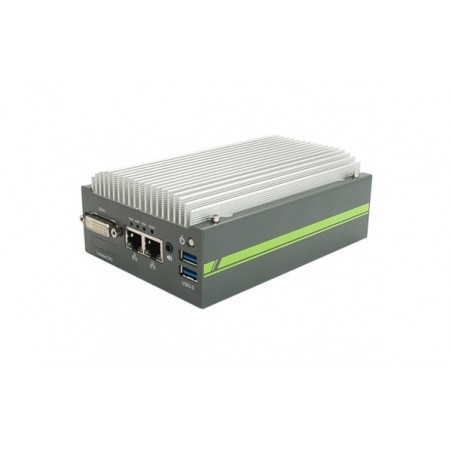

Intel® Atom™ E3845 1.91 GHz Quad-core
Fanless
2 x 802.3at (25.5W) Gigabit PoE ports
3 x USB 3.0
2.5" SATA HDD/SSD
Option: built-in eMMC
Up to two RS-232/422/485 ports and two RS-232 ports
-25°C to 70°C
8~35VDC
The product is EOL, only those in stock
Replacement EPC-N4200-DIN+
VIA C7 nano BGA2 400 pin 1 GHz
Integrated with VIA CN700.
1 x DDR II SDRAM 533/400 (max. 1GB)
SATA
AC-Link for Audio CODEC, AC’97 2.1
2 x USB 2.0(external) + 6 x USB 2.0(internal)
Fanless Design
Wide Range DC Power Input (9~36V)
iAMT supported
Triple Independent Displays (DVI-I + DisplayPort*2) supported
Optional WiFi or HSUPA Wireless Connectivity supported
Rugged Design for Shock / Vibration Protection Memory Support up to 16GB (DDR3)
RAID 0,1 Supported
3xGbit
CPU i5-5350U, 1.8GHz
E-MARK
4x RJ45 Gbit
4GB RAM
4x USB
2x RS232
-20°C ~ 60°C
9 V~36 V
i5-7300U 2.2GHz or Celeron 3965U CPU
Max. 16 GB of RAM
2 x USB (M12)
1 x RJ45 Gbit
1 x VGA (M12)
2 x RS232/422/485 (M12)
Watchdogtimer
1 x 2.5" SATA HDD (max. 9.5mm)
1 x mSATA (enabled in BIOS)
1 x Full-size and 1 x Half-size PCI Express Mini Card slot (USB + PCIe signal)
TPM 1.2
4 x N-jack antenna opening with water proof design
Vibration Endurance 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
-30°C ~ +60°C
210 mm (8.27") x 366.83 mm (14.44") x 83.8 mm (3.27")
9~36VDC Power input (M12)
Support: WIN10IoT & Linux
Udvidet temperatur område -40°C~70°C

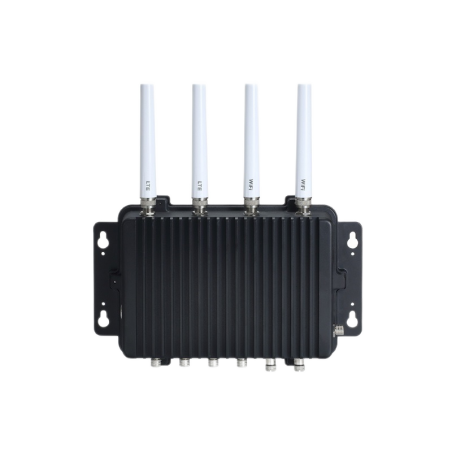

Intel® Atom™ Processor E3845 quad-core 1.91GHz
3 x mini-PCIe sockets
MIL-STD-810G
4 x COM
1 x USB3.0
2 x USB2.0
4-in/4-out GPIO
WIN7 PRO / Emb, Linux 3.1x

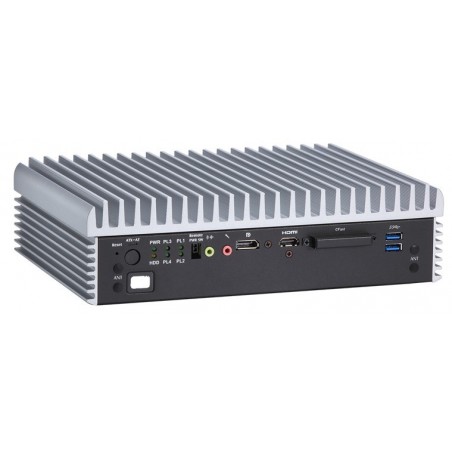

6th/7th Gen. i3/i5/i7 cpu support
Max. 32GB RAM
4x RS232/422/485
6x USB 3.0
2x USB2.0
2x 2.5" SATA HDD (RAID0/1 support)
9-36VDC
Fanless design
Intel® Celeron® processor 1.6 GHz/4-core
1 x DDR3L-1600 SO-DIMM, up to 8GB.
2 RS-232/422/485
4 USB
2 x 10/100/1000 Mbps Ethernet (Intel® i211AT) 1 x PoE PD compliant with IEEE 802.3at standard through LAN 1
1 DIO port
1 mSATA & SATA SSD (or HDD)
12-24 VDC wide range power input
VGA
Barebones
OS Support Windows® 7 Embedded Windows® 8 Embedded Windows® 8, Windows® 10 Linux support package
Option (3G/GPRS & Wi-Fi)
Fanless Design
Intel® Atom ™ Processor E3845, 1.92GHz
Up to 2x 2GB DDR3L-1333 SO-DIMM
M12 plug
1 x USB 2.0, 1 x USB 3.0
1x DVI-D, 1x VGA
2x RS232, 1x RS422 / RS485
EN50155 certified
Optional: Power supply from DC 9v ~ 36V Option: (72V / 110V DC)
Approved for installation on the railway .

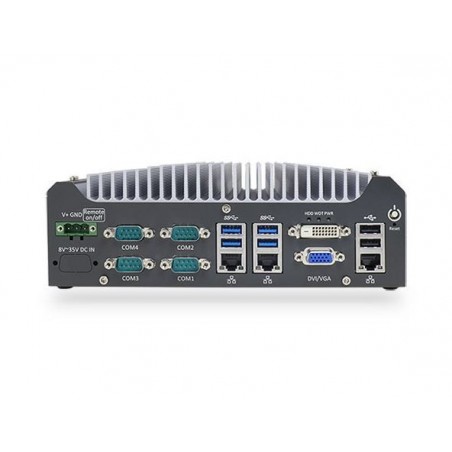

Intel® Core ™ 6th Gen
Supports I3, i5, i7 - CPU Not included in the price
Integrated Intel® HD 530/510 Controller
Up to 16GB DDR4-2133 - RAM NOT INCLUDED IN Price
3xgbit (1x Intel i219-lm, 2xintel i210-it)
4 x USB 3.0
2 x USB 2.0
2 x RS-232 2x Rs 232/422/485
VGA DVI
8 ~ 35vdc
excl. OS and power supply
-25 ° C ~ 70 ° C (requires special SSD and RAM)
DIN-RAIL MOUNT KIT (OPTIONAL)
120W AC / DC Power Adapter (Optional)
8- CH Isolated di and 8-CH Isolated do (optional)

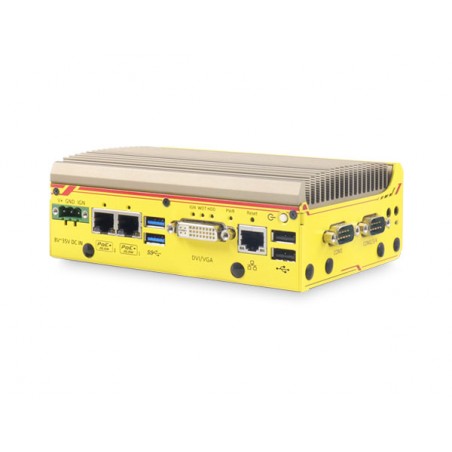

Intel® Apollo Lake Atoms ™ E3950 quad-core processor
4-ch isolated di and 4-ch isolated do
1X isolated CAN bus 2.0
1 x M.2 Socket
3 x Mini-PCie Socks
8 ~ 35V DC Input
Operating Temp: -25 ° C Till 70 ° C
1x DDR3L-1866, up to 8GB
Intel® 6th-Gen Core™ i7/i5/i3
Kompakt 221x173x76mm
3x GbE og 4x USB 3.0
2x RS-232/ 422/ 485 og 2x RS-232
VGA + DVI
1x3.5" HDD eller 2.5" HDD/ SSD
8xDI/DO

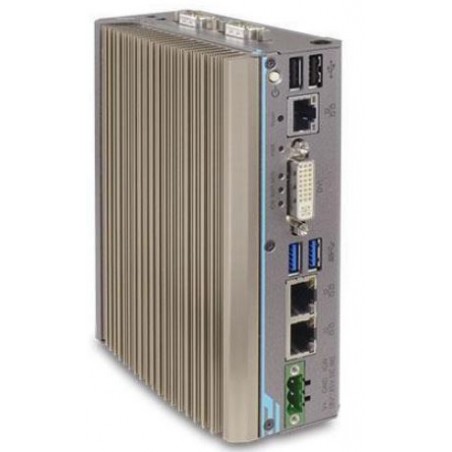

Intel® Apollo Lake Pentium® N4200 quad-core processor
3x Gigabit Ethernet ports by Intel® I210 GbE (2 x PoE + type 2)
1x Software prog. RS232 / 422/485 (COM1)
1x RS-422/485 port (COM2) or option: 3x 3-wire RS-232 ports
2x USB3.1 Gen.1
2x USB2.0
1x DVI-I
1x Mini-PCIe full-size (USIM Socket)
1x mSATA half-size (storage)
Option: 2½ "SSD / HDD mount
DIN-Rail standard (wall mount option)
-25 ° C to 70 ° C
5.6 x 15 x 11 cm

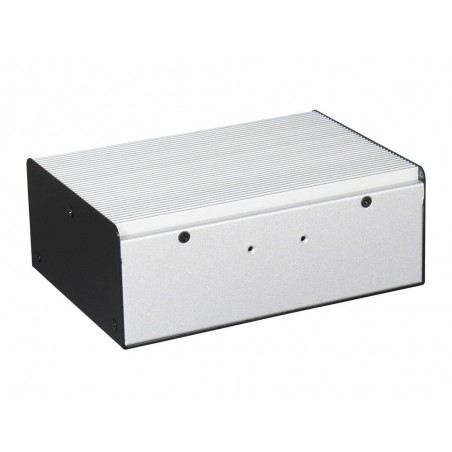

Atom Braswell N3160 2.24GHz
4 GB DDR3L RAM (4GB max)
2 x 10/100/1000 RJ45 LAN
4 x USB 2.0, 1 x USB 3.0
1 x RS232/422/485, 1 x RS232/422/485/CANBUS
1 x 2.5” SATA drive bay, 1 x CFast™ Socket, 1 x SD Socket
1 x PCIe Mini-Card Slot
1 x VGA
DC 9V ~ 32V
-10°C ~ 55°C
Atom Braswell N3160 2.24Ghz
4 GB DDR3L RAM (4GB max)
2 x 10/100/1000 RJ45 LAN
4 x USB 2.0, 1 x USB 3.0
1 x RS232/422/485, 1 x RS232/422/485/CANBUS
1 x 2.5” SATA drive bay, 1 x CFast™ socket, 1 x SD Socket
1 x PCIe Mini-Card Slot
1 x VGA
DC 9V ~ 32V
-10°C ~ 55°C
G-Series T40E Embedded 1GHz
4 GB DDR3L RAM (1 x 8GB max)
2 x 10/100/1000 RJ45 LAN
4 x USB 2.0
1 x RS232/422/485, 1 x RS232/422/485/CANBUS
1 x 2.5” SATA drive bay, 1 x CFast™ Socket
1 x PCIe Mini-Card
1 x VGA, 1 x Display Port. Dual Display
DC 9V ~ 32V. 46VA
-10°C ~ 55°C
Fanless
Support Intel® i3/i5/i7/Celeron Processor
Intel® H61 Chipset
1 x VGA
2 x USB 1.0
1 x RS232
IP67 Fanless operation design
RAM Max. up to 16 GB
One 2.5" SATA HDD drive bay
Option (WiFi / 3G / Bluetooth Optional)
OS Support Windows XP, 7, CE6.0, Linux

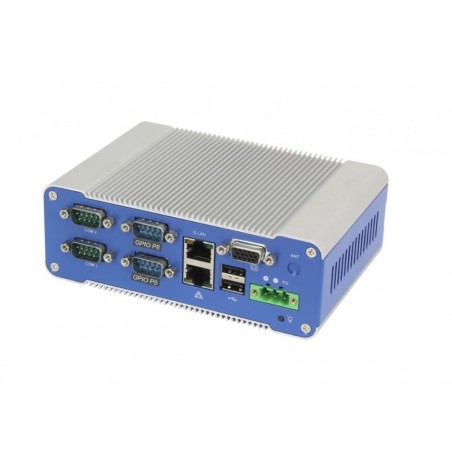

2 x RS232, 2 x RS485
2 GBRAM
CPU: Vortex86DX3 (1GHz).
DIN rail
1 x 10 / 100Mbps LAN, 1 x 10/100 / 1000Mbps LAN.
1 x 2.5 "SATA (hard drive not included)
1 x RS232.1 x RS485, 2 x 8bit GPIO
2GB RAM
CPU: Vortex 86DX3 (1GHz)
DIN rail mount
1 x 10 / 100Mbps LAN, 1 x 10/100 / 1000Mbps LAN
1 x 2.5 "SATA (hard drive not included)
8 to 24Vdc supply
-20 to 70 degrees
Fanless Design
CPU Socket LGA 1151 Gen. 6 & 7
Max. 32GB RAM
2 x RS232 / 422/485
4 x RS232
6 x USB 3.0 / 2.0
3 x RJ45 Gbit
DisplayPort, HDMI, VGA and DVI (Supports 3 screens simultaneously)
Power on / off delay control / Configurable ignition power control
Option:WiFi / 3G / 4G / GPS and I / O Extension
2 SATA SSD (1 x removable, 1 x internal),
Supports RAID 0.1
TPM 2.0 Support
DC power input (9 ~ 36V)
Windows 10 IOT ( For 7th Gen Intel CPU)
Windows 7 / Windows8.1/ Windows 10 IOT ( For 6th Gen Intel CPU)
Linux (Kernal 4.4.x )
& nbsp; Embedded PC with Low Power Saving & nbsp;
Processor: Vortex86DX3
1920 x 1440 Pixels
Network: LAN, WIFI, LTE, 3G
1 x MPCIe & amp; SIM card
1 x SD & nbsp;
3 x USB
1-2 LAN RJ45
GPIO
Up to 2GB RAM DDR3
OS support: (Windows 7, XP, etc.) Linux, and windows embedded us.
Supports Azure IoT Edge & nbsp;
Supports Windows 7, 8, 10, Linux
Adopt Intel® Core I5-4300u Dual Core 1.9Ghz
8GB RAM
128GB Msata
Aluminum cooler for fast heat dissipation
1x Mini-PCIE embedded SIM slot
1 x Mini-PCIE support MSATA, (optional: GPIO and LPT port is optional)
2 x USB3.0 (Back side)
4 x USB2.0 (Front) < br> 2 x RJ-45 LAN
1 x VGA
1 x HD
6 x COM (COM3 optional: RS232 / 422/485)
1 x Mic
1 x Power supply 12V DC
optional: Wi-Fi / 3G / 4G
-10 ~ 60 ° C

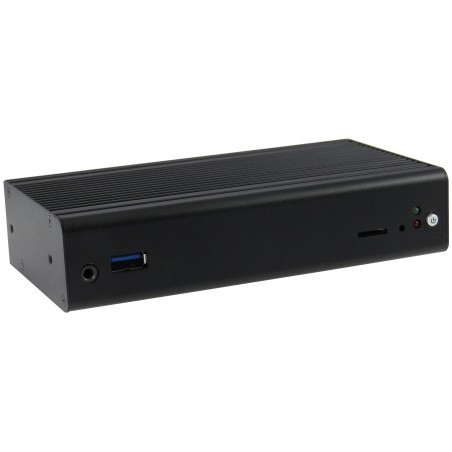

Embedded Intel® Bay Trail-I E3825 CPU 1.91GHz
Onboard 2GB DDR3L 1022MHz
VGA
Audio
4 x COM
2 x Intel GbE LAN
4 x USB 2.0 (2 internal, 2 external)
2 x Mini PCIe + 9V ~ + 36V
DIN rail mount
OS support: WIN 7 (32bit / 64bit) / 8.1 (32 / 64bit) / 10 (64Bit)
Linus support: Ubuntu 14.04, Fedora 19, Fedora 20, Rad hat enterprise linux 7
Extreme cost-effective fanless embedded PC

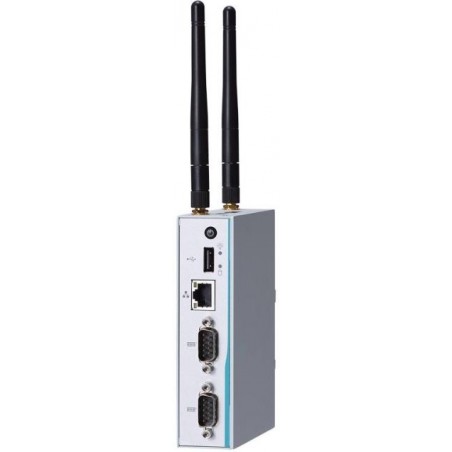

Intel® Celeron® processor N3350 1.1GHz
2 x COM
2 x USB
1 x GbE LAN
8-bit programmable DIO for IoT gateway applications
Wide temperature range from -40°C to +70°C
12 to 24 VDC power input
OVP, UVP, OCP, RPP power protection design
Fanless

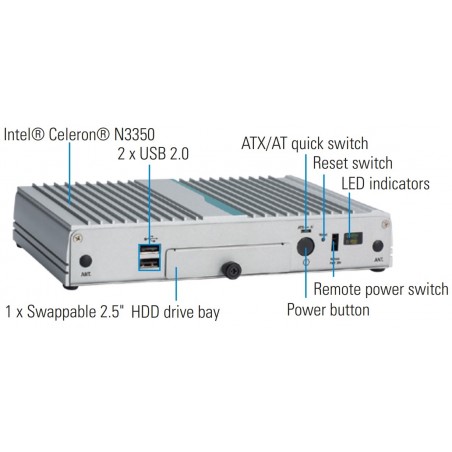

Intel® Celeron® N3350 2.4 GHz
1 x 204-pin DDR3L-1600 SO-DIMM, max. 8GB
2x HDMI
1x COM
6 x USB
2x GbE LANs
2 PCI Express Mini card slots for WLAN and WWAN
A swappable 2.5" SATA SSD
Supports Jumbo Frame (9k), WoL, PXE Remote Boot
Suitable for smart retail and light industrial applications
-5°C to +60°C (+23°F to +140°F) (requires WT DRAM & SSD)
OS Support: Win 10 IoT, Linux

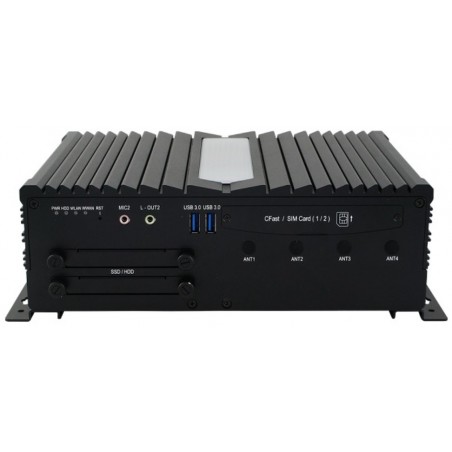

EN50155 certification and IP67 rating
Fanless and ruggedized design
Robust M12 connectors for dual GbE, USB and power input
Dual SIM sockets support WWAN redundancy
Rich I/O interfaces for wireless, SSD, GPS, WWAN
Ignition power control
Wide-range voltage GPIO interface
2.6GHz 7th/6th Generation Intel® Core Processor
2x 4GB DDR4-2133 SO-DIMM (Dual Channel)
Fanless design
M12 Stik
2 x 2.5" Bay til SSD
2 x SIM sokkel
4 x USB
PCI-E udvidelse
M.2 Sokkel
DC 9V~36V OPTION: (72V / 110V)
EN50155:2007, EN50153:2014
EN50121-3-2:2015, CE class A, FCC class A, EN45545
WIN 7, 8 og 10 support (32/64Bit)
Intel® Celeron® N3060, 1.6GHz
2 x 204 pin DDR3L SO-DIMM Socket.
1600MHz SDRAM up to 8GB (2GB DDR3L SO-DIMM pre-installed)
Chipset: SoC Integrated, Intel® HD Graphics 400
Hard drive: mSATA, MicroSD socket
1 x Serial ATA port with 600MB / s HDD transfer rate
2 x Realtek 8111HS GbE controllers (LAN chipset)
1 x Micro -B RS232 half-duplex
4 x USB 3.0 ports, 1 x Micro-B USB 2.0, 2 x RJ-45 ports for GbE
2 x HDMI, Max. resolution: 3840 x 2160
1 x 3.5mm stereo headphone jack
Supports 2/4 / 5.1 / 7.1 channel configurations via HDMI
Operating temperature: -10 ~ 55 ° C, Moisture: 0% -85% RH @ 55 ° C
0.86 KG, 141 x 34.8 x 107.6
OS Support: Windows® 7 / Windows® 10 / Linux (Kernel: 3.1X)
Intel® Haswell & Core™ i3-5010U Broadwell ULT SoC
204-pin DDR3L-1600 SO-DIMM, up to 8GB
Fanless operation design with compact size
1 RS-232/422/485 and 1 RS-232 port
One 2.5” 9.5mm SATA HDD drive bay and mSATA interface
1 PCI Express Mini Card slot and 4 USB 3.0 ports
DisplayPort and HDMI with dual-view supported

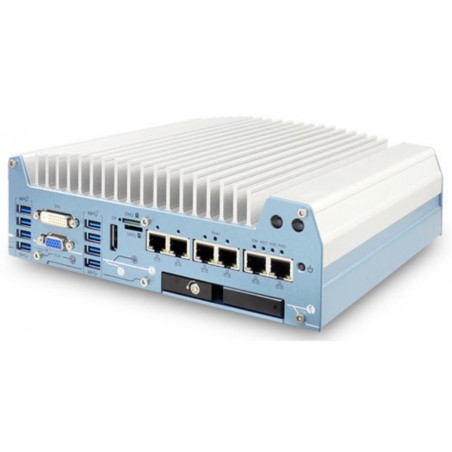

Intel® 8th-Gen Core™ i hexa-core 35W/ 65W LGA1151 CPU
Max. 64GB RAM
Intel Q370 Chipset
Intel UHD 620 Graphics
XLow-profile chassis with hot-swappable 2.5" HDD/ SSD tray
Rugged,
4x COM port (2x RS232, 2x RS232/422/485)
2x GigE ports, supporting 9.5 KB jumbo frame
M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
VGA/DVI/DP triple independent display, supporting 4K2K resolutionwide
Temperature range from -25°C to 70°C fanless operation
Cost effective with fanless and cableless design

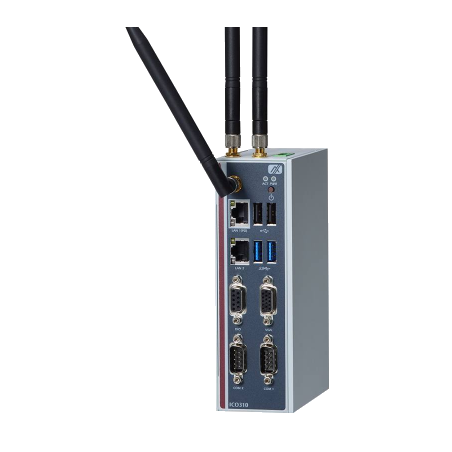

Intel® Celeron® processor N3160 (1.6 GHz / 4-core)
2 x RS-232/422/485 ports
4 x USB ports
2 x isolated 10/100/1000 Mbps Ethernet ports
1 x PoE PD compatible with IEEE 802.3at standard LAN 1
1 x DIO port
2 x PCI Express Mini Card slots (3G / GPRS & Wi-Fi Fi)
1 x mSATA & amp; SATA SSD (or HDD)
12 to 24 VDC
Weight: 1.50 KG
Dimensions: 48 x 110 x 155 mm
DIN rail and wall mounting
OS support: Windows® 7 Embedded, Windows® 8 Embedded, Windows® 8, Windows® 10, Linux support package
Intel® 8th-Gen Core™ i hexa-core 35W/ 65W LGA1151 CPU
Max. 64GB RAM
Intel Q370 Chipset
Intel UHD 620 Graphics
XLow-profile chassis with hot-swappable 2.5" HDD/ SSD tray
Rugged,
4x COM port (2x RS232, 2x RS232/422/485)
2x GigE ports, supporting 9.5 KB jumbo frame
M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
VGA/DVI/DP triple independent display, supporting 4K2K resolutionwide
Temperature range from -25°C to 70°C fanless operation
Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x or 8x 802.3at Gigabit PoE + ports via M12 or RJ45 connectors (To be specified when ordering)
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control
Supports Intel® 8th / 9th-Gen Core ™ i7 / i5 / i3 LGA1151 socket-type CPU
4x 802.3at Gigabit PoE + ports via RJ45 connectors
Isolated CAN bus for vehicle communication
4-CH isolated DI and 4-CH isolated DO
2x SATA ports with a hot-swappable HDD tray supports RAID 0/1
2x M.2
3x mini full size PCIe
EN 50155 certificate and E-mark
8 ~ 35V broadband DC input, ignition control
EN 50155 certificate (Railway) and E-brand Embedded PC
Supports Intel® 8th / 9th Gen Core ™ I7 / I5 / I3 LGA1151 Socket-type CPU
Up to 64 GB DDR4 2666/2400 SDRAM (Two Sodimm slots)
4 x 802.3at Gigabit PoE + ports Via RJ45 connector (must be specified by order)
Isolated CAN bus for vehicle communication
4 CH isolated di and 4-CH isolated do
2 x SATA ports with a hot-swapbar HDD hill supports RAID 0/1
2 x M.2 Slot
3 x Mini PCIe in full size
8 ~ 35VDC input, ignition control
Fanless
Intel Celeron 2955U
Chipset Intel QS77 Express Chipset High Speed
RAM: 1 x SO-DIMM DDR3L 1333/1600, 1333/1600 LPDDR3 MAX. 8GB
Intel® HD Graphics 4400 1920 x 1080 HD
2 x RJ45 Gbit Intel
2 x HDMI
4x USB 3.0
4 x USB3.0
4 x USB 2.0
6 x RS232
WIFI: OPTION!
Supply DC12
234 * 150 * 50MM
Support: Windows 7 / Windows 8 / Windows 10 / Linux
Fanless design
CPUi5-8250
RAM 2x SO-DIMM slot 32GB max
2 x RJ45 Gbit to 6 x RS232 / 422/485 (BIOS select)
1x HDMI
1xVGA
1x GPIO 0-7
1x M-SATA 3.0 SSD
1x SATA 3.0
SIM sokel to 4G (full port 3G / 4G module mini PCIE)
Wifi 1 x mini PCIE-half gate module
12Vdc
83x228x83 (hxWxD)
Compact 255 x 173 x 76 mm footprint
Intel® 9th/ 8th-Gen Core™ 35W LGA1151 CPU
Rugged, -25°C to 60°C fanless operation
2x GbE and 4x USB3.0
2x RS-232/422/485 and 2x RS-232 ports
VGA + DVI dual display outputs
Supports 1x M.2 2280 SSD (SATA signal)
Supports 1x 3.5" or 2.5" SATA HDD/ SSD
CPU support Intel® 9th/ 8th-Gen
Up to 64 GB DDR4 2666/ 2400 SDRAM
2x SATA, 1 x M.2 NVMe, 1x full-size mSATA
Working temp. -25°C ~ 60°C
1x PCIe x16 Gen3, 1x full-size mPCIe
6x Gigabit Ethernet ports
4x USB 3.1 Gen2, 4x USB 3.1 Gen1
1x VGA, 1x DVI-D, 1x DisplayPort
8V to 35V DC input
Pentium® processor N4200
Option: Intel® Celeron® processor N3350
1 x SO-DIMM DDR3L-1866, up to 8GB
4 x DB9 Isolated RS-232/422/485
4 x USB 3.0
1 x HDMI (up to 1920 x 1200 @60Hz)
2 x RJ-45 isolated 10/100/1000 Mbps
1 x DB9 8-bit programmable DIO
Wide operating temperature range from -40°C to +70°C
12 to 24 VDC wide range power input
Dimensions 48 x 110 x 155 mm
Intel Celeron Processor N3350
1 x 1866 DDR3L-SO-DIMM, up to 8GB non-ECC memory
4 x 10/100/1000 Mbps Ethernet
1 x RS 232, 2 x USB 3.0
1 x HDMI
Dimesion 33.5 x 146 x 118.2 mm
1 x mSATA (Half size)
1 x mSATA (Full size)
12VDC via DC connector
Fanless system
Continuous operation
Celeron 3860U, Option: i3, i7
6x Intel i201/i211 Gigabit RJ45 LANs
2x RS232 COM ports
1x mSATA SSD+1x 2.5'' SSD/HDD
Option: 1x SIM slot, 3G/4G/WiFi
Applied in Firewall, Network Server, Network Security, VPN Router etc.
Full Aluminum Alloy
Slim design 209x150x57MM.
Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
OS Support:Windows® 7/8/10, Pfsense, WES 7/10, LINUX
Fanless Design
CPU Socket LGA 1151 Gen. 6 & 7
Max. 32GB RAM
2 x RS232 / 422/485
4 x RS232
6 x USB 3.0 / 2.0
3 x RJ45 Gbit
DisplayPort, HDMI, VGA and DVI (Supports 3 screens simultaneously)
Power on / off delay control / Configurable ignition power control
Option:WiFi / 3G / 4G / GPS and I / O Extension
2 SATA SSD (1 x removable, 1 x internal),
Supports RAID 0.1
TPM 2.0 Support
DC power input (9 ~ 36V)
Windows 10 IOT ( For 7th Gen Intel CPU)
Windows 7 / Windows8.1/ Windows 10 IOT ( For 6th Gen Intel CPU)
Linux (Kernal 4.4.x )
Intel Core i7-8550U (option i5)
Kabylake Chipset
2x SO-DIMM DDR4 max. 32 GB of RAM
1x 10/100/1000Mbit Gigabit Ethernet., WIFI
2x RS232
3x USB3.0, 4xUSB2.0
1x VGA, 1xHDMI
mSATA 3.0 slot, 1xM.2
Audio (MIC,SPK)
Supports Auto Power On and Wake on LAN
Dimensions: 234x150x43mm
Cabinet: Aluminum
Desktop or wall mounting
OS Support: Windows 10
Fanless design
CPU i7-7500 2.7GHz
RAM 2x SO-DIMM slot max 32GB
2 x RJ45 Gbit
6 x RS232/422/485 (BIOS select)
1x HDMI
1 x VGA
1x GPIO 0-7
1x M-SATA 3.0 for SSD
1x SATA 3.0
SIM socket for 4G (full port 3G/4G module mini PCIE)
Wifi 1 x mini PCIE half port module
12Vdc
83x228x83 (hxwxd)
OS support Windows 8, Windows 10, Linux, Ubuntu, CENTOS
I5 4200U
2 x Intel I213 Gbit RJ45
1 x SO-DIMM DDR3L Slot, Support 4GB/8GB
GPIO
2x Mini PCIe (support WiFi, 4G Module)
LPT
6x Com (2 x RS232/422/485 BIOS select)
HDMI, VGA
8 x USB
Material Aluminum
TPD: 15W
OS Support: Win7, Windows 8, Windows 10, Linux
Auto Power On
230x175x50
Pentium® Processor N4200
1x DDR3L SO-DIMM max. up to 8GB
Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
1x 2.5” SATA Drive Bay, 1x mSATA Socket
Rich I/O (2x LAN, 4x USB, 4x COM, 8x Isolated DIO)
2x Full Size Mini-PCIe Expansion Socket
Supports 2x PoE+ Function (with optional module)
Supports Ignition Sensing Function (IGN) (with optional module)
Supports CDS Technology for Convertible Panel PC
Built-in Two 2W Internal Speakers
9~48VDC via 3-pin Terminal Block
Supports 9/8th Gen Intel® Xeon® and Core™ Octa/Hexa-core CPU
1x HDMI /1x DP /1x DVI-I (4K/2K UHD Resolution)
2x 2.5" Hot Swap SATA HDD/SSD Tray, 3x mSATA Socket
2x USB 3.1 (Type-A), 6x USB 3.0(Type-A)
1x M.2 E Key Socket (CNVi), 3x Full-size Mini-PCIe Socket, 1x SIM Card Socket
2x RJ45 GbE LAN Intel® I219-LM and Intel® I210
Wide Operating Temperature -40°C to 70°C
E-Mark: E13 No.10R-0515210), LVD EN62368-1, EN50121-3-2
9~48VDC via 3-pin Terminal Block
Supports 9/8. Gen Intel® Core / Pentium® / Celeron® 8 Core 35W / 65W LGA 1151 CPUs
2x DDR4 SO-DIMM, supports up to 2666MHz, max 64GB
1x DVI-I and 2X DP (4K resolution)
1x M.2 2280 M Key Socket, auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
2x Front available SIM slot
2X PCIe slots (standard) / 2X PCI (option) for add-on cards (maximum length: 235 mm)
Operating temperature -40 ° C to 70 ° C
EN50121-3-2 Certified / LVD EN62368-1
9 ~ 48VDC via 3-pin Terminal Block
Onboard Intel® Atom™ Processor E3845 Quad Core 1.91GHz
One DDR3L SO-DIMM Support DDR3L 1333MHz Up to 8G
Dual Intel® I210 GbE LAN Ports, Support WoL, Teaming, Jumbo Frame, PXE
Ultra Compact Size (150x105x56.02mm)
Dual Display, Output from One DVI-I Port
-25˚C~70˚C Operating Temperature
9~48VDC Input, Support AT/ATX Power Mode
Various Mounting Options (VESA, DIN-Rail, Side/Wall Mounting)
ISMART Intelligent energy-saving technology with Power On / Off Scheduling and Power Resume Functions
11th Gen Intel® Core ™ U-Series Processor
4x HDMI 2.0 with independent audio output
Built-in hardware Edit Emulation function
HDMI-CEC and display monitoring functions
2x DDR4-3200 SO-DIMM, Dual Channel, Max. 64DK
1x M.2 B-Key (3042) for 4G LTE
1x M.2 E-Key (2230) for WiFi, Bluetooth or Capture Card Selection
TPM 2.0, VPRO and WatchDog Timer
Industrial-Grade Robust Fanless and Compact Design
8th gen Intel® Core™ i7/i5/i3 Celeron® ULT processor (Whiskey Lake-U)
Dual-channel DDR4 2400 SO-DIMM up to 64GB memory
2x HDMI, 1x VGA
3x GbE LAN
4x COM
6x USB
Fanless -40°C to +70°C* operating temperature
9 to 36 VDC wide range DC power input
OPTION: DIN, Wall
Intel® Core ™ I5-7300U 2.6 GHz / i3-7100U 2.4 GHz Celeron® 3965U 2.2 GHz
2x Com
2x GBE LAN
4x USB 3.0
One Swappable 2.5 "HDD Drive Bay
2 HDMI med dual-view støttet
Ultra-kompakt kabinet design
12VDC
-10 ° C til + 50 ° C
Onboard 8th Generation Intel® Core™ U Series Processor
Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) (standard)
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Supports Triple Independent Display
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (with optional CFM module)
Supports 2x PoE+ Function (with optional CFM module)
Supports CDS Technology for Convertible Panel PC
Built-in Two 2W Internal Speakers
Intel Atom D510 1.66GHz
2GB RAM onboard
2x ethernet
254x59x152mm
6x USB 2.0 (not all cabled out)
8x RS232 (not all cabled out)
Input Voltage DC: 9 ... 36 V, 16 W
OS Support: Windows CE 6.0, Windows XP, Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 2009, Linux OS, QNX, WIN10 iot
Intel® Atom® x6414RE/x6212RE Processors (formerly Elkhart Lake)
GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
1x M.2 B-Key 3052 support 5G module
Optional 1x 2.5’’ SSD (needs to be ordered)
3x 2.5G Ethernet port
3x full-size Mini PCI-E sockets
4x COM (RS232/422/485)
2x USB 3.1 & 2x USB 2.0
Supports DIN-rail mount, wall mount
TPM 2.0
Extended operating temperature from -20°C to 70°C
9V~36V DC wide-range power input Over/Under/Reverse voltage protection
Intel® Atom X5-E8000 Quad Core
8GB RAM
2X LAN, 2x RS232, 4x USB 3.0
Indgangsspænding: + 8V til + 26VDC
Driftstemperatur: 0 ~ 60 ℃
Montering: VESA100
Option: WiFi/BT Module, DIN montering
OS support: Win 10, Win 10 IoT, Win 7, WES7, Linux Ubuntu, Debian
Celeron® J1900
4GB DDR3L
2 x GbE, 4 x COM, VGA, 2 x USB
Wide Range 9~36V DC input
mSATA, HDD / SSD*
DIN Rail mountable (with optional Kit)
Dimensions 140 x 92 x 64 mm
Operaiting Temp. 20°C to +60°C
11th Gen. Intel® i3 CPU (Optional: i5, i7)
2 x 260-pin DDR4 SO-DIMM (64GB Max)
1 x M.2 M-Key, 1 x 2.5” HDD/SSD
16 x I/O
4 x COM
3 x LAN(2xPoE)
4 x USB3.1
Remote PWR
Video output: DVI-D, HDMI, DP
Mounting: Wall-mount (Option: DIN-rail or VESA)
Power Input: 9~36 VDC
Dimensioner: 210x180x70mm (WxDxH)
Operating Temp.-20 ~ 60 °C
I5 8265U 2.5-3.1Ghz
Intel HD620
2x DDR3L DO-DIMM max. 16 GB of RAM
1x 2.5" HDD/SSD
1x msata 3.0 (ssd support)
4x USB 3.0
3x USB 2.0
1x Ethernet 10/100/1000 RTL 8168E
1xVGA, 1x HDMI (Dual display support)
DC12Vdc (jack plug)
Wall mount
Auto power on, Wake On Lan
0~50 degrees
1.3Kg
Dimensions: 234x150x50mm (WxDxH)
OPTION: WIFI 2 antennas
OS support: Windows 7 / 8 / 10, Linux Compatible (64 bit)
Fanless
Intel i5 gen.7, 3.1 til 3.5GHz
2x RS232 (1x DB9, 1x RJ45)
4x USB 3.0
TDP 15W/28W
1x SO-DIMM DDR3K MAX 8GB RAM
Support PXE
Audio
6x Eth Intel(r) i210/i211 10/100/1000Mbp BaseT LAN
1x HDMI
1x SIM slot
1x Mini PCIE Full/mini for 3G/4G/Wifi modul
1x Msata 3.0 SSD 6Bb/s
1x 2½ support HDD/SSD SATA 3.0
Wifi
209x150x57mm (WxDxH)
Arbejds temp. -20/+60 Centigrade
DC +12V~+19V, recommend 12V/5A
2x DDR4 RAM slot, Max. 64GB of RAM
2x RJ45 Gbit RTL 8111
2x RS232
1x HDMI 2.0, 1x HDMI1.4, 1x DP (3 screen support)
MSATA SSD support
M.2 slot for NVME 2280 SSD
1x 2½" SSD sata 3.0
TDP 15W
Audio
PXE, Auto Power ON, RTC
OPTIONAL! Vesa mount
OPTIONAL! WiFi
Us support: Windows 8/10/11, WES10, Linux
12DC supply
Weight 2kg
Material aluminum
Dimensions 178.3x127.5x55mm
-20 to 60 degrees (requires special RAM/SSD must be stated when ordering)
DC power cable with ferrite
1 meter
3-pin terminal block at one end, cable lugs at the other end
14AWG (2.08mm)
Accessories for high power embedded PCs
Intel® Apollo Lake Pentium® N4200 quad-core processor
3x Gigabit Ethernet ports Intel® I210 GbE
1x Software prog. RS232/422/485 (COM1)
1x RS-422/485 port (COM2) or option: 3x 3-wire RS-232 ports
2x USB3.1 Gen.1
2x USB2.0
1x DVI-I
1x Mini-PCIe full-size (USIM Socket)
1x mSATA half-size (storage)
Option: 2½" SSD/HDD mount skal bestilles specielt
DIN-Rail standard (wall mount option)
-25° C to 70° C
5.6 x 15 x 11 cm
1x 3-pin terminal block for 8~35V DC input
ONLY CARD NO ACESSORIES!
Intel Atom® x5-E3940 on board
204-pin DDR3L-1866 SO-DIMM for up to 8 GB of memory
Supports 2 GbE LAN
3 COM
6 USB
Supports one 2.5” SATA drive bay and mSATA
Trusted Platform Module (TPM) 2.0
2 PCI Express Mini Card slots and 1 SIM slot
-40°C to +60°C operating temperature range
Hailo-8™ AI acceleration modules compatible
Additional accessories: Must be ordered alongside: Wall mounting kit, VESA mounting kit, DIN rail kit
OS support: Win10 IoT, Linux
9 to 36 VDC
Intel® i7 Gen7 CPU (optional: i3, i5)
1x DDR4 2133, Max 16GB
4x RS2323 (RS422/RS485 optional)
4x LAN Intel 1Gbps (Port 1 & 2 with POE)
4x USB3.0, 2x USB 2.0
Video output: 1x VGA,1x HDMI
Power input: 9~36 VDC
Dimensions: 232.5mmx 197.7mmx 66.5mm (W×D×H)
Operating temperature: -20 ~ 60°C
Industrial Fanless Celeron, i3/i5,i7 CPU support (LGA 1151)
Gen. 8/9
1x RS232/422/485. OPTIONAL! ISOLATED RS232/422/485, Must be ordered separately!
4 USB 3.1 Gen. 1
2 x USB2.0
1 x USB (internal, 180D type A for License Key, up to 30mm)
2 x ETH Intel i211-AT & i219-LM (Option! more can be ordered)
VGA, HDMI output
19~30Vdc
OPTION: wall mount or DIN mount
83.4x192x230mm (WxHxD)
Working temperature -10°C to +60°C, NOTE REQUIRES RAM AND SSD also specified for -10°C to +60°C Order separately!
OS support Windows 10 and Linix
Industrial Fanless Celeron, i3/i5,i7 CPU support (LGA 1151)
Gen. 8/9
Chipset Q370
1x RS232/422/485. OPTIONAL! ISOLATED RS232/422/485, Must be ordered separately!
4 USB 3.1 Gen. 2
2 x USB2.0
1 x USB (internal, 180D type A for License Key, up to 30mm)
2 x ETH Intel i211-AT & i219-LM (Option! more can be ordered)
VGA, HDMI output
19~30Vdc
OPTION: wall mount or DIN mount
83.4x192x230mm (WxHxD)
Working temperature -10°C to +60°C, NOTE REQUIRES RAM AND SSD also specified for -10°C to +60°C Order separately!
OS support Windows 10 and Linix
11th Gen. Intel® i7 CPU (Optional: i3, i5)
2 x 260-pin DDR4 SO-DIMM (64GB Max)
1 x M.2 M-Key, 1 x 2.5” HDD/SSD
16 x I/O, 4 x COM, 3 x LAN(2xPoE), 4 x USB3.1, Remote PWR
Video output: DVI-D, HDMI, DP
Mounting: Wall-mount (Option: DIN-rail or VESA)
Power Input: 9~36 VDC
Dimensioner: 210x180x70mm (WxDxH)
Operating Temp.-10 ~ 60 °C With airflow
11th generation Intel® i5 CPU (can be ordered with other CPU: i3, i7)
2 x 260-pin DDR4 SO-DIMM (max. 64 GB)
1 x M.2 M-Key
1 x 2.5” HDD/SSD
16 x I/O
4 x COM
3 x LAN(2xPoE)
4 x USB3.1, Remote PWR
Video output: DVI-D, HDMI, DP
Mounting: Wall mounting (Option: DIN rail or VESA)
Power input: 9~36 VDC
Dimensions: 210x180x70mm (WxDxH)
Operating temperature -10 ~ 60 °C With air flow
Intel® 12/13 th-Gen Core™ 35W/ 65W LGA1700 CPU up to 16 cores/ 24 threads
4x GbE and 4x USB3.2 Gen 1 with screw-lock
1x hot-swappable HDD tray
1x M.2 2280 Gen4 x4 NVMe
2x full-size mPCIe sockets
4-CH isolated DI and 4-CH isolated DO
VGA + DP
TPM Support
Rugged, -25°C to 60°C fanless operation
212 x 165 x 63 mm low-profile design
1x 3-pin pluggable terminal block for 8-48V DC input with optional ignition power contro
Supports Intel® 12th Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
Patented cassette for PCI/PCIe add-on cards
2 x DDR5 4800 SO-DIMM slot (up to 64 GB RAM)
Robust, -25°C to 70°C fanless operation
Up to 5x 2.5 GbE and 1x GigE ports with optional PoE+ supporting 9.5 KB jumbo frame
1 x USB 3.2 Gen 2x2 Type-C and 6 x USB 3.2 Gen 2x1 Type-A ports
Supports M.2 Gen4 x4 NVMe and 2x SATA ports
Extension interface for easy feature extension
VGA/DVI/DP triple independent display that supports 4K2K resolution
Lots of versions, contact our sales department
IP67-rated design, specifically for outdoor environments
NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
High AI computing performance for GPU accelerated processing
8GB RAM
1 x C3 USB 2.0
1 x M12 Ethernet
1 x C3 HDMI
4 N-jack antenna openings with water-proof design
Features M12 lockable I/Os
1 IEEE 802.3at GbE PoE (30W)
-30°C to +50°C operating temperature range
100 to 240 VAC wide range power input with 10kV surge protection
OS support Linux Ubuntu 18.04
IP67 waterproof GPU computer with NVIDIA® RTX A2000/ Tesla T4/ Quadro P2200
Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
Patented waterproof 2U 19" chassis for rack or wall-mount*
Guaranteed non-throttling GPU performance up to 62°C ambient
Up to eight 802.3at Gigabit PoE+ ports via M12 X-coded connectors
VGA, USB 2.0 and COM ports via M12 A-coded connectors
8~48V wide-range DC input with built-in ignition power control
MIL-STD-810G and EN 50155 certified
*R.O.C Patent No. I697759, *CN Patent Pending
Built-in fanless PC with a focus on vision solutions
9th generation Intel Core i7/i5/i3 processors
Q370 Chipset
2 x RJ45 Gbit
Supports DDR4 (2666MHz) SO-DIMM up to 64GB
2 x 2½" SATA3 HDD/SSD
VGA, HDMI
1x GPU extension max 75Wattx
Supports comprehensive GPU card (75W) expansion
Wall bracket / DIN bracket
Flexible expandability through I/O module design
Power input 9~36DC
Dimensions 222x190x77 (depending on model/version)
Other models are available with PCIex expansion and PCI expansion
Fanless
Core i5 LOW POWER
Chipset QS77
AMI BIOS ACPI support
1x SO-DIMM RAM DDR3L max 8GB
TDP 15W
Grafik HD4400 1920x1080 HD
2x HDMI
2 x RJ45 Intel Gbit Lan PXE support
6 x RS232
4 x USB2.0
4 x USB3.0
1 x M-SATA
1 x mini PCIE half for Wifi/3G/4G
1 x SATA til 2½"HDD/SSD
0~+70 Centigrade (32°F~140°F)
12Vdc
234x150x50mm
Aluminum
OPTION: Wifi
OPTION: SIM SLOT
OS Support: WIN 7, WIN 8, WIN10, Linux
CE, ROHS
Intel® Elkhart Lake Atom® x6425E Processor 4-Core
1x DDR4 SO-DIMM, MAX. 32GB
1x M.2 Key E Type 2230 Socket for Intel® CNVi/Wireless Module
Support triple independent display
3x RS232/422/485
2x 1GbE LAN
3x USB 3.2 GEN.2 (10Gbps)
1x USB 2.0
8x Isolated DIO (4xDI, 4xDI)
1x SIM
1x M.2 Type 2230 socket
1x Full Size Mini-PCIe socket
CFM Technology for Power Ignition Sensing Function and PoE Function
EMC Emission / Immunity Standard for Industrial Environment : EN61000-6-4, EN61000-6-2
Safety Certification: UL, cUL, CB 62368-1
Working temperature -40°C to 70°C (needs special WT RAM)
Dimension 204.5x149x41.5mm
Wall/VESA/CDS/Option: DIN RAIL mount
9 ~48Vdc 3 pin terminal
Intel Celeron J6412 Quad Core 2.0GHz
1x DDR4L 3200MHz Max up to 32GB
3x GbE LAN Intel® 225-V
2x RS-232/422/485
1x M.2 SATA, 1x 2.5" SATA
1 x DP, 1 x HDMI
WiFi/Bluetooth/4G/5G optional
DC input 9V~36V
Working tempeture -20°C ~70°C
Windows 10 / 11, Linux
Intel® 13th/12th-Gen Core™ 35W/ 65W LGA1700 CPU
SODIMM MAX. 32GB DDR4 3200
2x 2.5GbE
4x USB3.2 Gen 1 with screw-lock
1x M.2 2280
Gen4 x4 NVMe
1x 3.5"/2.5" SATA HDD/SSD storage
4-CH isolated DI and 4-CH isolated DO
TPM 2.0
VGA + DP dual display outputs
-25°C to 60°C fanless operation (Need special RAM and SSD)
Compact 212 x 165 x 80 mm
Can be wall and DIN mounted needs to be ordered special
1x3-PIN terminal 8~35Vdc remote ON/OFF
Intel® 12th Gen Alder Lake-S Core™ i9/i7/i5/i3 CPU's (max 65 W TDP)
2 x DDR5 SO-DIMM Up to 64GB RAM
HDMI / DP / DVI-I
2x 1GbE LAN
4x RS-232/422/485
2x 2.5" SATA HDD/SSD Bay
1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
Optional I/O Module Expansion
Optional Power Ignition Sensing & PoE Function
DC input 9 - 48VDC, 3-pin Terminal Block
Wide Operating Temperature -40°C to 70°C
Railway approved
Certification: CB, IEC, EN 50155 (EN 50121-3-2 Only)
CPU Xeon, i9,i7,i5,i3 Gen.10
2x LAN
6x USB 3.2
2x USB 2.0
2x COM
1x PS/2
1x HDMI 4096x2160 at 30Hz
2x DisplayPort 4096x2304@60Hz (according to CPU specifications)
1 x VGA
3 x full-size Mini-PCIe connectors
2 x SIM slots
4 x CMI interface: different I/O moduls see picture
1 x CFM IGN Interface need to be ordere separately
2 x PCI/PCIe slots
Vibration/Shock MIL-STD-810G
CE, UKCA, FCC, ICES-003 Class A, EN50121-3-2 (Rail), IEC/EN 62368-1
REQUEST about additional information with details
CPU support gen.6/7 Intel® Xeon® E3/ 6th & 7th generation Core™ i7/ i5/ i3 processor in LGA1151 socket
Fanless design
4 x 802.3af Gigabit PoE ports by M12 connectors
Support RTC battery service window
2 x mPCIe slots for optional Wi-Fi/ BT/ 3G/ 4G/ GPS modules
1 x M.2 (NGFF) M-Key(2242) socket for storage module
1 x SIM card sockets
Dimensions (W x D x H) 225 x 292 x 90 mm
Wide temperature range from -40°C to 70°C
Wide range DC power input (9~36V)
EN-50155 certified
Supports 10th Gen Intel® Core™ Desktop processors
AI solution for Transportation
Max. 128GB RAM
2x Gbit Lan M12
4x USB
2x SIM Slot
2x 2.5" SSD , RAID 0/1/5
1Xmicro SSD
1x HDMI
1x DVI-D
1 x RS-485, 1 x RS232/485 Isolated
M12 connectores
Up to 10x GbE ports (8x with PoE capability)
10G LAN (need to be ordered special)
Supports Intel® Movidus Vision Acceleration M.2 modules
Supports Wi-Fi 6 CNVi, dual WWAN channels
1x USB Type-C with graphics output for quick setting and diagnostics
EN50155 (2021) / EN45545-2 certified
Intel Celeron® J6413, Quad Core 1.8 GHz processor
1x 260-pin DDR4 SODIMM. Max. up to 32 GB
Dual independent screen with 2x screen port
1x 2.5 GbE, 1x GbE supports (Wake-on-LAN and PXE)
1x 2.5" SATA HDD bay, 1x mSATA
1x M.2 (B-KEY, 2242/3042/3052, supports 4G/LTE)
1x full-size mini-PCIe for communication or expansion modules
2x RS-232/422/485
3x USB 3.2 Gen2, 1x USB 2.0
M.2
SIM socket
watchdog
9 to 36VDC Wide Range Power Input supporting AT/ATX mode
Wide operating temperature -20°C to 50°C
TPM 2.0 supported
With 1x Universal expansion slot
142 (W) x 101.2 (D) x 41.5 (H) mm
UL listed
Fanless design ( Embedded heat pipes cooling solution )
12th/13th Gen CoreTM i9/i7/i5/i3 Processor (Alder Lake-S/Raptor Lake-S)
Up to 60W GPU MXM module expansion
802.3af (15.4W)/802.3at(25.5W) Gigabit PoE ports
DP x2 + HDMI x 1 and DVI x 1 (support 4 independent displays)
Power on/off delay control / configurable ignition power control
Supports TPM 2.0 and Time-Sensitive Networking (TSN)
Two-mPCIe for optional WiFi/3G/4G/GPS or I/O expansion supported
Front-accessible I/O
1 x M.2 B for storge or 5G / LTE +1 x M.2 E-Key for WiFi / BT
1 x M.2 M for NVMe SSD
285x230x 90mm (9.84” x11.50” x 3.54”),Fanless 285x230x110mm (9.84” x11.50” x 4.33”),w/ FAN
DC 9~36V input
CE, FCC Class A, E mark
i7 Haswell i7 4578U 3.0GHz, Dual Core, 4 Threads 4MB Cache
2 x SO-DIMM DDR3L, Max. 16GB
TPD 28W
Intel Irus Graphics 5100
2 x Intel Gbit RJ45, Wake on Lan, PXE
6 x RS232/422/485 (2 is BIOS select RS422/485)
8 x USB (4xUSB3.0, 4x USB2.0)
SIM card slot
GPIO
HDMI, VGA (dual display support)
1x MSATA3.0, 1x mini PCIe
-20 ~ +75 Centigrade (requires special RAM)
OS Support: windows 7, 8, Windows 10, Linux
212,5x149,5x52mm
12Vdc
1.91 GHz Intel Atom E3845 CPU
Wall mount/VESA mount
1x 204-Pin SO-DIMM DDR3L-1066/1333Mhz, MAX. 8GB
2 x RS232/422/485 (M12)
2 x USB 2.0 (M12)
2 x 10/100/1000 Mbps Ethernet Intel i210-IT (M12)
1 x VGA
1 x 2.5” HDD drive bay (max. up 9.5 mm height)
1 x mSATA (enabled in BIOS setting)
1 x CFast™
-30°C to +60°C
210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
9 to 36 VDC power input (M12)
OS Support: Win 10 IoT, WE8S, WES7, Linux
