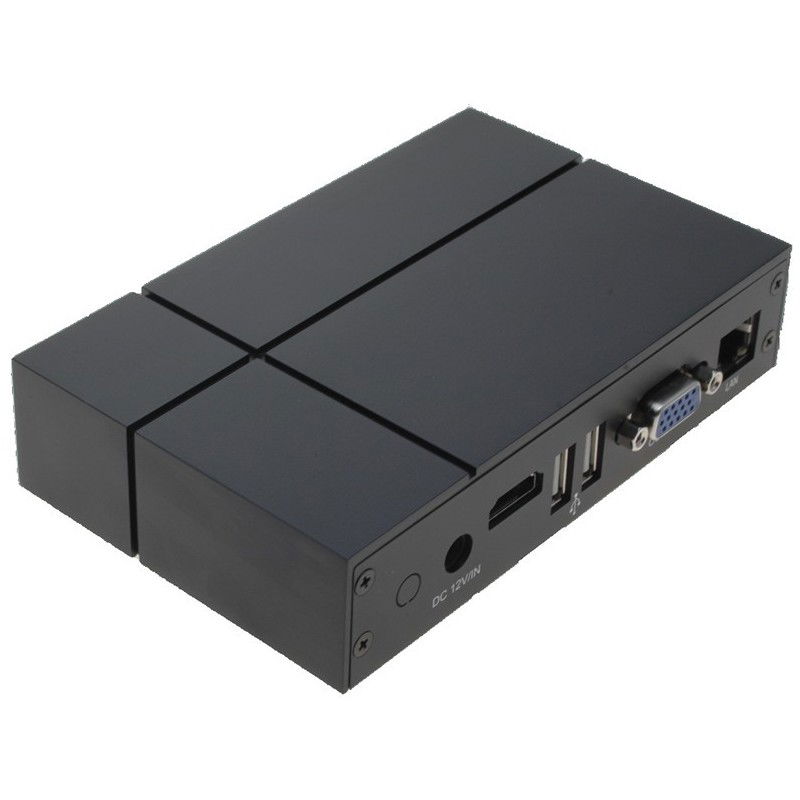

2½" embedded PC with HDMI output

Small embedded PC, fanless with Intel Atom CPU

Reference: EPC-ATOM-HDMI

2,888.00 DKK

Tax excluded

Quantity

Physically in stock

Download PDF
Downloads

Ask a question

Description
Product Details

Supplied with Intel ATOM CPU, which is a low-energy type that can be used without a fan if the cooling is in order. And it is this one, because the solid aluminum enclosures ensure ample heat dissipation for passive cooling – i.e. a completely silent PC without rotating parts that wear out.

The PC has a solid case and is good for demanding applications, e.g. in trucks or lorries.

Can have built-in 3G via Mini PCI card or as standard or Wi-Fi radio and SSD flash drive so it resists shaking.

CPU: Intel Atom N2600 1.6GHz Dual Core
Chipset: Intel Atom N2600 og NM10
Driftstemperatur: 0 – 60° C med CF-kort, 0 – 45° C med 2½” harddisk, 5 - 95 % fugt, ikke kondenserende
Forsyning: 12 VDC maks. 2,5 A, Strømforsyning medfølger
Hukommelse: 2 GB DDR3 onboard 800/1066 MHz
Lyd: Intel High Definition Audio, Line-out / Mic-in / Line-in
Netværk: 1 x 10/100/1000 Mbit Ethernet m/RJ45-stik
Skærm: Integreret HDMI og VGA
Udvidelser: 1 x mSATA (halv størrelse) og 1 x miniPCIe slot
Understøtter: Windows XP, 7 og 8
USB: 2 x USB 2.0, 3 x via pins
