8 x Digital input over Ethernet / MQTT
8 x Digital output over Ethernet / MQTT
Input voltage: up to +50VDC
Built-in Web Server
Modbus TCP/UDP and MQTT protocols
2 port Ethernet switch (LAN Bypass) for Daisy-Chain
Double watchdog (programmable
I/O-pair connection (Push and Poll)
Supports web configuration and firmware update via Ethernet
8 x input channels for Wet contact and Dry contact
Wet is active when voltage is applied
Dry is active at closing contact
LED display to show I/O status
Dimensions: 127 x 99 x 33 mm
Supply voltage: 10 - 48VDC / 3W

16 x Digital output over Ethernet / MQTT
Open Collector: op til +50VDC / 650mA per kanal
Indbygget Web-Server
Modbus TCP/UDP- og MQTT-protokoller
2 ports Ethernet-switch (LAN Bypass) til Daisy-Chain
Dobbelt vagthund (programmerbar
I/O-pair forbindelse (Push og Poll)
Understøtter webkonfiguration og firmwareopdatering via Ethernet
16 x udgangskanaler med Safe power up output setting
Safe output setting at lost contact
Wet er aktiv ved spænding ind
Dry er aktiv ved sluttekontakt
LED-display for at vise I/O-status
Mål: 127 x 99 x 33 mm
Forsyningsspænding: 10 - 48VDC / 3W

16 x digital input over Ethernet / MQTT
input voltage: Up to + 50VDC
Built-in Web server
Modbus TCP / UDP and MQTT protocols
2 Ports Ethernet switch (LAN Bypass ) To Daisy-Chain
Double watchdog (programmable)
I/O-Pair connection (push and poll)
support web configuration and firmware update via Ethernet
16 x input channels for Wet switch and DRY switch
Wet is active at voltage in
Dry is active at closing contact
LED display To display I / O status
Dim: 127 x 99 x 33 mm
Supply voltage: 10 - 48VDC / 3W

NMT Canopen Slave
Modbus RTU Master
Error Control: Node Guarding Protocol
Node ID: Setting CAN_MRU Utility Software or LSS Protocol
PDO modes: Eventless, externally requested, cyclic and acyclic Sync
Bob Mapping: Variable
Number of SDOs: 1 Server, 0 Client
Canopen Version: DS-301 V4.02
Device Profile: DSP-401 V2.1
CIA DSP -305 V1.1
Can Baud Rate: 10K - 1M BPS
Modbus Baud Rate 1200 - 115,200 BPS
LED indicators Run, Err and Overrun
Max. 10 Modbus RTU I / O Modules
Hiring program for configuration
7-segment LED to display Node ID, Can Baud Rate and RS-485 Baud Rate

Support input voltage 10 ~ 30VDC
Fully compatible with ISO 11898-2 standard
1 x RJ45 Ethernet interface
2 x CAN bus 9-pole D-sub
Mechanical selection of CAN Bus Baud rate
support for CAN bus ID filter function
Support for CAN Bridge
CAN Bus Monitoring
CAN Baud Rate from 10Kbps to 1Mbps
Modbus TCP Client / Server function Via Configuration
Support for TCP / UDP CAN Pair Connection
Bootloader for firmware updates
Supply voltage: 10 - 30VDC
Operating temperature: -25 to +75°C
Dim: 147 x 107 x 26 mm

PROFINET / MODBUS konverter Gateway
PROFINET klasse B og RT klasse 1
1 x RJ45
Cyklisk tid: 1ms (min)
Generisk GSDML-fil (version 2.25)
Max længde af input/output data er 512/512 bytes
Understøtter Modbus Master og Slave mode
Understøtter Modbus RTU- og ASCII -format
RS232 or RS422 or RS485
Baud rate for COM1 fra 1,2 til 460,8 kbps
LED-indikatorer
4 kV kontakt ESD-beskyttelse til enhver terminal
Strømforsyning: +10 til +30 VDC
Driftstemperatur: -25 til +75°C

Supports 2 different Baud Rates on port 1 and port 2

3 x RS485 ports

Supports Modbus RTU/ASCII protocol

Supports 2 Master devices sharing 1 slave port

Data cache for each master port

RAW data mode for most request-response protocols

Built-in web server for easy configuration (HTTP)

Redundant Power Input: POE (IEEE 802.3AF, Class 1) and DC Jack

Allows automatic RS-485 management control

Tiny Form-Factor and Low Power Consumption

Read cache ensures faster response

Expansion module for the X-400 / X-600 Controller series
8 x precise analogue inputs
Voltage Input: ±1.28V, ±2.56V, ±5.12V, ±10.24V
Current input, 4 - 20mA
Removable terminal plug
Driven via expansion bus - no power supply
High input impedance
Great for monitoring applications including:
Temperature
Electric current
Pressure
Fluid levels
With DIN bracket

Expansion module for X-400-I and X-600M-I
4 x C relay 125VAC / 30VDC 2.5AM
C / SPDT Relay
10 pole interconnection flat cable for controller
RS485 communication Between the units
supply voltage: 9 - 28VDC from controller
Dim: 99 x 78 x 36 mm

Expansion module for X-400-I and X-600m-I
4 x Endelæ 125vac / 30vdc 2.5AM
4 x digital in, opto-insulated with common frame
10 pole interconnection flat cable For controller
RS485 communication between the devices
supply voltage: 9 - 28VDC from Controller
Dim: 99 x 78 x 36 mm

Expansion module for X-400-I and X-600M-I
8 x digital inputs - High is from 3 - 26VDC
Opto-Isolated Inputs, Common GND
Counter Input: Max. 200Hz
10 Polet interconnection flat cable for controller
RS485 Communication between the devices
Supply voltage: 9 - 28VDC from controller
Dim: 99 x 78 x 36 mm

Mediekonverter fra seriel til optisk fiber
Point til Point transmission
RS232 eller RS422 eller RS485
Op til 40 km med single-mode
ST stik - duplex
Til 9/125my single mode fiber
Reducerer signalinterferens
Beskytter mod elektrisk interferens
Baud rate op til 921,6 kbps
Temperaturområde: -40 til+75°C
Forsyningsspænding: 12 - 48VDC
Mål: 100 x 90 x 22 mm

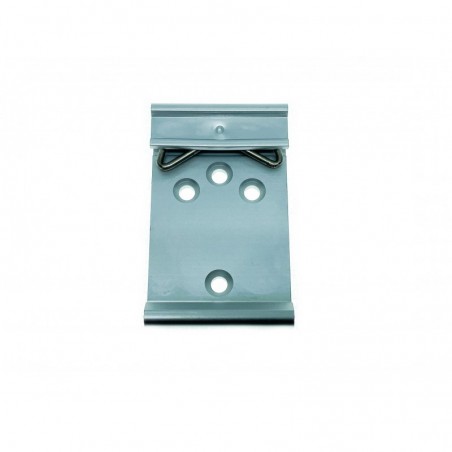

DIN beslag som tilbehør

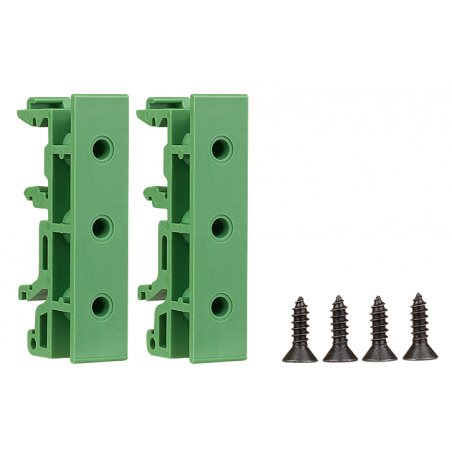

DIN kit for Teracom devices
2 x Bracket + 4 screws

Expansion module for X-400, X-600 Controller
with Daisy Chain for several I/O modules
16 x Dry Spst Form c relay - Signal relay
Relays can be grouped in common
Activation of Relays Can switch individual
16 x digital input - optoisolated, 4 - 28VDC
4 x analog inputs - 12bit, 0 - 5VDC, common gnd
LED Indication - Relay and DI status
Supply voltage: 9 - 28VDC ( Preferably 24VDC)
Dim: 219 x 126 x 50 mm
Weight: 342g
DIN mount

1-wire adapter box for K Thermopler element
acquire K-thermocoupler sensor
adapter with built-in DS18B20 Chip
interface is + 5VDC, GND, data
screw terminal for K-Thermoføler

Digital temperature sensor with 1-wire interface
Sensor diameter: 5.5mm
Sensor length: 50mm
Cable: 1 meter
3-wire cable: + 5VDC, GND, data
Max distance from feel to controller is 185 meters
IP66
stainless steel sensor

8 x analog inputs - Sample Rate 25 times per second
8 x input - Single ended: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
input 1 - 4 Can be 4-20mA
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Tasks
50 schedule planned
50 Conditional
20 overroubed
Email Alarms by Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Logging - Graph Presentation
static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: PoE or 9 - 28VDC

Module B - Serial for Fiber - Fiber for Serial Link
Automatic RS-485 Directional Control
Optical Fibers Allows Transmission Up to 15 km to the A module
avoiding lightning and EMI / RFI interference
Supports +10 VDC ~ +30 VDC
ESD protection for data line RS-232/422/485
DIN rail mounting
support operating temperatures from -25 ° C ~ +75 ° C

Module A - Serial for Fiber - Fiber for Serial Link
Automatic RS-485 Directional Control
Optical Fibers Allows Transmission Up to 15 km to B Module
Avoid lightning and EMI / RFI interference
Supports +10 VDC ~ +30 VDC
ESD protection for data line RS-232/422/485
DIN rail mounting
support operating temperatures from -25 ° C ~ +75 ° C

Module to Can 2.0a and B
ISO 11898-2 standard
Baudrate 10Kbps for 1M bps
software for setting CAN and RS232 / 422/485
Transparency between RS-232 / 485/422 Via CAN bus
Full duplex on RS-232/422 units are not supported
CAN Bus Baud Rate Configuration
CAN Accept Filter Configuration
CAN 2.0A or 2.0B Specific Choice
RS-232 / 485/422 Baud rate and data file setting
RS-232/485/422 Respond Options
Setting: Normal or pair connection
