In this category you will find our analog and digital I / O modules. And a lot of other things including temperature sensors, Smart I / O modules, PLC and protocol converters. See blah. our 3 channel Quadrature counter with encoder for measuring eg. distance traveled.
Supports 2 different Baud Rates on port 1 and port 2
2 x RS232 1 x RS485 ports
Supports Modbus RTU/ASCII protocol
Supports 2 Master devices sharing 1 slave port
Data cache for each master port
RAW data mode for most request-response protocols
Built-in web server for easy configuration (HTTP)
Redundant Power Input: POE (IEEE 802.3AF, Class 1) and DC Jack
Allows automatic RS-485 management control
Tiny Form-Factor and Low Power Consumption
Read cache ensures faster response
Includes firmware for "Addressable RS-485 to RS-232 converter"
Supports Dual-Watchdog commands
Supports startup value and safe value for DO
Supports real-time monitoring/control for the built-in DI/DO
Includes a 1KB queue buffer for each RS-232 interface
Low power consumption
Supply: +10 - +30VDC
PROFINET to Modbus Master Converter
4kV isolation between PROFINET and Modbus
Vibration and shock resistant metal housing
Operating temperature: -40°C to 105°C
1x RS485 up to 115200 bps for RS485
1x Ethernet ports 10/100 Base-T Autosensing
DIN rail mountable
Power input: 10-40VDC, 8-26VAC
Configuration via software
Dimensions: 76mm x 86mm x 40mm
Weight: 250g
In Plastik/Metal
For 35mm DIN Rail
Dimensions: 60x18mm
Leveres uden skrue
RS-485 interface
DCON, Modbus RTU, Modbus ASCII
4 x Analog inputs (+/- 20 mA, 0 ~ 20 mA, 4 ~ 20 mA)
DIN rail / wall mounting
Dimensions 52 x 98 x 27
10 ~ 30 VDC supply voltage
-25 to + 75°C operating temperature
AC and DC voltage meter with true RMS
Resolution: 24 bits
0-264VAC 0-60Hz (3 phases)
L1, L2, L3, N
0-+/-370VDC
Input impedance greater than 2.4Mohm
Modbus RTU (2-wire RS485)
Built-in RS485 termination (120 ohms)
Up to 63 units per RS485 Bus
LED for communication status
Response time: less than 50mS
Temperature: -20 - +60°C
Supply voltage: 5 - 28VDC
Dimensions: 86 x 59 x 35 mm
Thermal resistance current transmission module for Pt1000
Power supply: 16 - 36VDC (two-wire loop power supply)
Output: 4 - 20mA
Connect I+ and GND I- to A/D input.
If A/D input is 0-10V, connect 125ohm across input
It will give 0-10V across the 125ohm resistor
For 2 - 3 lead platinum resistance PT1000 temperature sensor
Additional Pt1000 temperature sensor
Accuracy: 0.2% FS Related to the accuracy level of the connected platinum resistor
Dimensions: see drawings
Automatic RS-485 Direction Control
3-way 3000 VDC Isolation Protection
Transmission Speed of up to 115200 bps
ESD Protection for RS-485 Data Line
Protocol converter from M-BUS devices to PC/PLC which is Modbus Master
Up to 20 M-BUS units (meters)
RS485 Modbus interface for Modbus master
Free setup software
Supply voltage: 18 - 35VDC, 15 - 21VAC
Max. power consumption: 4 Watt
Baud rate: 1200 - 115,200 baud
Galvanic isolation
Temperature: -40 - +70°C
Dimensions: 71 x 60 x 60 mm
either 128kb or 2mb buffer
DC 9v/200mA with 3mm DC plug
Baud rate from 50 to 115K
7 or 8 data bits, ODD EVEN or NONE parity
Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-SR is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate
Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-ST is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate
Industrial and IT room monitor unit
1 x RJ45 Ethernet 10/100 Mbps
USB port For USB camera
USB memory for logging, max. 64GB SD
Built-in USB hub
4 x Analog ports for sensors (can be expanded)
2 x Digital input (dry contact)
1 x CAM port (max. 10 sensors, can be expanded)
2 x Relay output
Desktop, Wall, (Option: DIN and 19" brackets as extensions)
Dimensions: 150 x 140 x 28 mm
Water detector with normally closed relay output
Supply voltage: 5VDC / 10mA
Relay contact: max. 30VDC/500mA
Red: +5VDC
Black: GND
Green: Relay contact
White: Relay contact
REMEMBER: Relay contact opens when water is removed.
Built-in web server
Web HMI
Supports Modbus TCP and MQTT protocols
2-port Ethernet switch (LAN Bypass) for Daisy-Chain Wiring
Double watchdog
Digital input: 16 channels
Wet contact input
Input high = +10 - 50VDC (ON)
Input low = < +4VDC
Supply voltage: 12 - 48VDC
Temperature: -25 - +75°C
Dimensions: 120 x 97 x 42
Built-in web server
Web HMI
Supports Modbus TCP and MQTT protocols
2-port Ethernet switch (LAN Bypass) for Daisy-Chain Wiring
Double watchdog
Digital input: 16 channels
Dry contact input
Input to Gnd = High (ON)
Input open = Low (OFF)
Supply voltage: 12 - 48VDC
Temperature: -25 - +75°C
Dimensions: 120 x 97 x 42
Web based Data Collector module with built-in WebServer
Supports MQTT 3.1.1 protocol
4 x digital input Dry - external contact without voltage
4 x analogue inputs with 0 to 10VDC, 0-20mA
4 x powerful relay outputs with NO/NC contacts
RS485 port
MODBUS RTU up to 24 registers (sensors)
Modbus TCP/IP support
Data logger with memory for 70,000 loggings
SNMP v3 support with trap alarm
4 schemes for real-time control of relays
Up to 24 independent alarms
Secure email
XML/JSON and HTTP API commands for client-server
Dynamic DNS support for DynDNS, No-IP and DNS-O-Matic
NTP time sync
Supply voltage: 10 - 28VDC - purchase PSU
Dimensions: 145 x 90 x 40 mm
3 wire PT 100 sensor
100 ohms at 20°C
With 1 compensation cable (yellow)
Metal housing ø5 x 50mm
304 stainless steel
3 meter cable
Temperature range: - 50 – +100°C
Thermostat 0 to 60°C
Snap-Action switch
Dimensions 60 x 33 x 43
Max. starting current AC 10
Max. switching capacity NC: 10 A resistive / 2 A inductive @ AC 250 V
(Special specifiction are welcome)
Compact design
Wide adjustment range
DIN Rail mountable 35mm
Thermostat 0 to 60 °C
Snap-Action Contact
Housing plastic, UL 94V-0, light gray
Max. inrush current AC 16 A for 10 seconds
Max. switching capacity NC: 10 A resistive / 2 A inductive @ AC 250 V, NO: 5A resistive / 2A inductive@250V 15A resistive/2A inductive@AC120V DC30W(DC24-72V)
IP20
Dimensions 60 x 33 x 43
16 pcs. Digital output 200mA/channel
User-definable Modbus TCP Slave addressing
Supports RESTful API for IIoT applications
Supports peer-to-peer communications
Max. Client Connections
Saves time and wiring costs with daisy-chain topologies
Active communication with WIN-OPC UA Server
Supports SNMP v1
Easy mass deployment and configuration with Device
Search utility, configuration via web browser
Temperature: -20 to +70°C
Supply: 12 - 36VDC
Size: 124 x 84 x 28 mm
User-definable Modbus TCP Slave addressing
Supports RESTful API for IIoT applications
Supports peer-to-peer communications
Max. Client Connections
Saves time and wiring costs with daisy-chain topologies
Active communication with WIN-OPC UA Server
Supports SNMP v1
Easy mass deployment and configuration with Device
Search utility, configuration via web browser
Temperature: -20 to +70°C
Supply: 12 - 36VDC
Size: 124 x 84 x 28 mm
MODBUS TCP/IP module with analogue in- and output
User-definable Modbus TCP Slave addressing
Max. 10 clients connected
Supports RESTful API for IIoT applications
Supports peer-to-peer communications
Saves time and wiring costs with daisy-chain topologies
Active communication with WIN-OPC UA Server
Supports SNMP v1
Easy mass deployment and configuration with Device Search utility
Friendly configuration via Web browser
Temperature range -20 to +70°C
DIN Mount
Phoenix contacts
Supply 12 - 36VDC/ 3 Watt
Size: 124 x 84 x 28 mm
MODBUS TCP/IP module with analogue in- and output
User-definable Modbus TCP Slave addressing
Max. 10 clients connected
Supports RESTful API for IIoT applications
Supports peer-to-peer communications
Saves time and wiring costs with daisy-chain topologies
Active communication with WIN-OPC UA Server
Supports SNMP v1
Easy mass deployment and configuration with Device Search utility
Friendly configuration via Web browser
Temperature range -20 to +70°C
DIN Mount
Phoenix contacts
Supply 12 - 36VDC/ 3 Watt
Size: 124 x 84 x 28 mm
Pt100 transmitter from sensor to 4-20mA
Working voltage: 24VDC
Accuracy: +/- o.2% full scale
Temperature range: -50 - +200°C
Dimensions: Ø45 mm
Plastic
Weight: 25g
Clamping: Center hole
Zero point adjustment
Adjustment of amplitude
Supports Modbus TCP/UDP master and slave
Supports Modbus RTU/ASCII master and slave
Max. TCP connections (masters) per serial port: 32
1 x RJ45 Ethernet
3 x RS485 ports
Max. 254 notes
Max. baud rate: 115.2kbps
12 - 48VDC / 1.7 Watts
Dimensions: 95 x 52 x 27 mm
Temp: -25 - +75°C
Static IP or DHCP
Web server for configuration (HTTP)
Automatic RS-485 direction control
Terminal blocks
Cost-effective Modbus gateway
1-axis vibration measurement
Frequency range: 10 Hz to 1K Hz
Amplitude range: ±8g
Data Format:
Acceleration(mg): RMS, Maximum, P-P
Velocity(mm/s): RMS
Top 10 spectrum values(Amplitude/Frequency)
Crest Factor
Supported Modbus RTU Slave protocol
Size: 51 x 30 x 19mm
Supply voltage: 10 - 30VDC
Temp: -25 - +75°C
6 RTD Inputs for Temperature sensor
Lead Resistance Elimination for 3-wire Connection
High Resolution: 16-bit
Open Wire Detection
Built-in Dual Watchdog
RS485 MODBUS RTU
Baud rate: 1200 - 115,2kbps
Supply voltage: 10 - 30VDC
Temp: -25 - +75°C
Dim: 123 x 72 x 36 mm
DIN-mount
8x Analog Inputs to RS485
16-bit Readout
Power: 10 - 30 VDC
Dimensions: 123mm x 72mm x 35mm
Modbus RTU and DCON
8-channel True RMS Input
±0.15% factory calibrated accuracy
The RMS input range can be from +150 mVrms to +10 Vrms
Designed for standard operation with frequencies of 45 Hz to 10 KHz
Channels can be individually configured
Aluminum
80.4x47mm
Supplied without screws
number of channels 2
Coil Voltage 24Vdc
Load 10A, AC 250/125V, DC30V/28V
4.3 x 4.3 x 2cm/1.7" x 1.7" x 0.78"(L*W*H)
8 Potential-free relay outputs - 230Vac / 16 A, 24VDC / 10 A
Relay outputs are individually via HTTPS, SNMP or Command
Startup delay from 0 to 9999 seconds. Adjusted individually
Inrush Delay is set to 1 second
Programmable on / off sequence
Activating relays can be controlled from sensor or inputs
8 channel watchdog via ICMP / TCP Ping
8 signal entrances From NO and NC units, door contacts, etc.
Entrance to sensors Temperature, humidity and air pressure
Messages via e-mail, Sylog and SNMP Trap MQTT
Depending on thresholds for sensor measurement and signal input
LED display for overall power, IP address, sensor data and error reports
Android app and iOS app

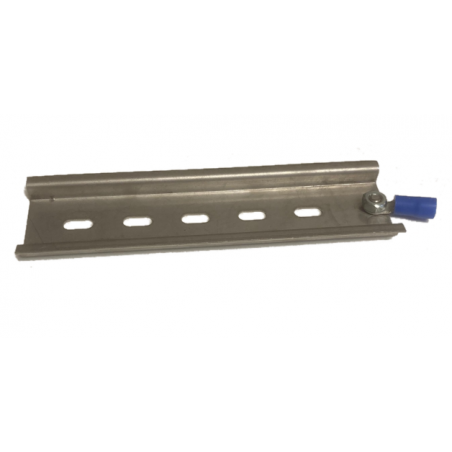

DIN bracket
12.4 cm DIN rail with GND
stainless steel
8 x Digital input over Ethernet / MQTT
8 x Digital output over Ethernet / MQTT
Input voltage: up to +50VDC
Built-in Web Server
Modbus TCP/UDP and MQTT protocols
2 port Ethernet switch (LAN Bypass) for Daisy-Chain
Double watchdog (programmable
I/O-pair connection (Push and Poll)
Supports web configuration and firmware update via Ethernet
8 x input channels for Wet contact and Dry contact
Wet is active when voltage is applied
Dry is active at closing contact
LED display to show I/O status
Dimensions: 127 x 99 x 33 mm
Supply voltage: 10 - 48VDC / 3W
16 x Digital output over Ethernet / MQTT
Open Collector: op til +50VDC / 650mA per kanal
Indbygget Web-Server
Modbus TCP/UDP- og MQTT-protokoller
2 ports Ethernet-switch (LAN Bypass) til Daisy-Chain
Dobbelt vagthund (programmerbar
I/O-pair forbindelse (Push og Poll)
Understøtter webkonfiguration og firmwareopdatering via Ethernet
16 x udgangskanaler med Safe power up output setting
Safe output setting at lost contact
Wet er aktiv ved spænding ind
Dry er aktiv ved sluttekontakt
LED-display for at vise I/O-status
Mål: 127 x 99 x 33 mm
Forsyningsspænding: 10 - 48VDC / 3W
16 x digital input over Ethernet / MQTT
input voltage: Up to + 50VDC
Built-in Web server
Modbus TCP / UDP and MQTT protocols
2 Ports Ethernet switch (LAN Bypass ) To Daisy-Chain
Double watchdog (programmable)
I/O-Pair connection (push and poll)
support web configuration and firmware update via Ethernet
16 x input channels for Wet switch and DRY switch
Wet is active at voltage in
Dry is active at closing contact
LED display To display I / O status
Dim: 127 x 99 x 33 mm
Supply voltage: 10 - 48VDC / 3W
NMT Canopen Slave
Modbus RTU Master
Error Control: Node Guarding Protocol
Node ID: Setting CAN_MRU Utility Software or LSS Protocol
PDO modes: Eventless, externally requested, cyclic and acyclic Sync
Bob Mapping: Variable
Number of SDOs: 1 Server, 0 Client
Canopen Version: DS-301 V4.02
Device Profile: DSP-401 V2.1
CIA DSP -305 V1.1
Can Baud Rate: 10K - 1M BPS
Modbus Baud Rate 1200 - 115,200 BPS
LED indicators Run, Err and Overrun
Max. 10 Modbus RTU I / O Modules
Hiring program for configuration
7-segment LED to display Node ID, Can Baud Rate and RS-485 Baud Rate
Support input voltage 10 ~ 30VDC
Fully compatible with ISO 11898-2 standard
1 x RJ45 Ethernet interface
2 x CAN bus 9-pole D-sub
Mechanical selection of CAN Bus Baud rate
support for CAN bus ID filter function
Support for CAN Bridge
CAN Bus Monitoring
CAN Baud Rate from 10Kbps to 1Mbps
Modbus TCP Client / Server function Via Configuration
Support for TCP / UDP CAN Pair Connection
Bootloader for firmware updates
Supply voltage: 10 - 30VDC
Operating temperature: -25 to +75°C
Dim: 147 x 107 x 26 mm
PROFINET / MODBUS konverter Gateway
PROFINET klasse B og RT klasse 1
1 x RJ45
Cyklisk tid: 1ms (min)
Generisk GSDML-fil (version 2.25)
Max længde af input/output data er 512/512 bytes
Understøtter Modbus Master og Slave mode
Understøtter Modbus RTU- og ASCII -format
RS232 or RS422 or RS485
Baud rate for COM1 fra 1,2 til 460,8 kbps
LED-indikatorer
4 kV kontakt ESD-beskyttelse til enhver terminal
Strømforsyning: +10 til +30 VDC
Driftstemperatur: -25 til +75°C
Supports 2 different Baud Rates on port 1 and port 2
3 x RS485 ports
Supports Modbus RTU/ASCII protocol
Supports 2 Master devices sharing 1 slave port
Data cache for each master port
RAW data mode for most request-response protocols
Built-in web server for easy configuration (HTTP)
Redundant Power Input: POE (IEEE 802.3AF, Class 1) and DC Jack
Allows automatic RS-485 management control
Tiny Form-Factor and Low Power Consumption
Read cache ensures faster response
Expansion module for the X-400 / X-600 Controller series
8 x precise analogue inputs
Voltage Input: ±1.28V, ±2.56V, ±5.12V, ±10.24V
Current input, 4 - 20mA
Removable terminal plug
Driven via expansion bus - no power supply
High input impedance
Great for monitoring applications including:
Temperature
Electric current
Pressure
Fluid levels
With DIN bracket
Expansion module for X-400-I and X-600M-I
4 x C relay 125VAC / 30VDC 2.5AM
C / SPDT Relay
10 pole interconnection flat cable for controller
RS485 communication Between the units
supply voltage: 9 - 28VDC from controller
Dim: 99 x 78 x 36 mm
Expansion module for X-400-I and X-600m-I
4 x Endelæ 125vac / 30vdc 2.5AM
4 x digital in, opto-insulated with common frame
10 pole interconnection flat cable For controller
RS485 communication between the devices
supply voltage: 9 - 28VDC from Controller
Dim: 99 x 78 x 36 mm
Expansion module for X-400-I and X-600M-I
8 x digital inputs - High is from 3 - 26VDC
Opto-Isolated Inputs, Common GND
Counter Input: Max. 200Hz
10 Polet interconnection flat cable for controller
RS485 Communication between the devices
Supply voltage: 9 - 28VDC from controller
Dim: 99 x 78 x 36 mm
Mediekonverter fra seriel til optisk fiber
Point til Point transmission
RS232 eller RS422 eller RS485
Op til 40 km med single-mode
ST stik - duplex
Til 9/125my single mode fiber
Reducerer signalinterferens
Beskytter mod elektrisk interferens
Baud rate op til 921,6 kbps
Temperaturområde: -40 til+75°C
Forsyningsspænding: 12 - 48VDC
Mål: 100 x 90 x 22 mm
DIN beslag som tilbehør
DIN kit for Teracom devices
2 x Bracket + 4 screws
