Industrial monitoring and control / Automation - I/O over network, USB or serial

ICP DAS I-7231-D-G-CR

18 Pin male Connector

4 x Digital input and 4 x relay output
Form A and Form C Power relay
Source and Sink type of D/I
D/I the entries is also 16-bit counter
Configurable Power-on settings
Configurable Safe Value setting
Dual Watchdog
Temperature range -25 to + 75 ° C
Supply voltage: 10 - 30VDC
DIN bracket

Baud rate (bps): 10K - 1M
Terminator Resistor: 120 Ohms
3000VDC DC-to-DC isolation 2500Vrms for photo-couple
ISO 11898-2, CAN 2.0A and CAN 2.0 B
SC single mode, 1310 nm
RS-232 COM1
+10 - + 30VDC unregulated
-25 - + 75 degree driftemperatur
10-90% humidity

High resolution Color Touch screen
Poe (power over Ethernet)
RS232 Port, RS485 Bus
USB Download Port
RTC (Real Time Clock)
Gui Design
Free HmiWorks Development Tool
Supports C language and ladder designer
Modbus / TCP, Modbus / RTU and DCON protocol
Size: 126 x 92 x 29 mm
Operating temperature: -20 ~ 50 ° C
supports custom third-party protocol (C-language)

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
2 x RJ45 Ethernet - Daisy chain
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair-link - input is mirrored to the other's output
8 x Relay power - electromechanical, COM NO
Relæskiftetid: on: 10ms, off: 5ms
Relay contact voltage and current: 24VDC / 250VAC / 5A
Electromechanical: Avoid inductive load
Supply voltage: 12 - 48VDC

I / O box with RS485 port for PC
8 digital input channels and 3 relay output channels
Form A Power relay output
Sink & nbsp; and source type for digital input
Digital input channels can be used as 16-bit counters
Configurable Power-on value settings
Configurable Safe Value Settings
Dual Watchdog
Wide operating temperature range: -25 ~ + 75 ° C

Multi-Network Output Module with Galvanic I / O
10/100 Mbit Ethernet Connection
Password Protected WEB Server
2 Analog Outputs with Voltage and Power Generator
0 - 20mA, 4 - 20mA, 0 - 24mA
0 - 5V or 0 - 10V voltage output
4 digital (open drain) outputs with ON / OFF or PWM
2 relays with COM, NO and NC contacts
4 scheduled actions, 1 time or weekly
NTP, SNMP v2, SNMP trap for up to 5 recipients
MODBUS TCP / IP
HTTP upload with current status in XML or JSON remote server file
HTTP API commands in server and client mode
HTTP Post can be sent to 3 servers
DIN rail / wall mounting
Supply voltage: 10 - 32VDC / max 250mA

2-pole relay switch with 230V AC
DIN rail mounting
Power: 12A
screw connection
coil resistance: 19,465 kΩ
Dimensions: 77 x 27,2 x 78,3 mm
operating temperature: -40 ° C + 70 ° C
Flushing effect: 1W

RS-485 Interface
DCON Modbus/RTU Protocol
8 x Analog Inputs
4 x Relay Outputs
DIN rail / wall mount
Temperature: -25 to +75°C

ARM Cortex - A53 CPU , 1.2 GHz
RAM 1Gb SDRAM
16GB of memory
2 x RS232/422/485
8 x DI and 4 x relay outputs
DC input 9-32V
4G module
OS : Linux Raspbian
User need knowledge of linux and programing
Documentation for DI/O and 4G module

DIN rail

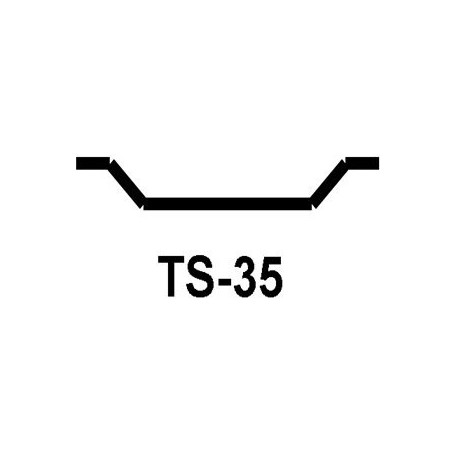

2 meters
Width: 3.5 cm
Height: 1.5 cm
TS35 Standard
Steel

Built-in Web server
Web HMI
2 x RJ45 - Daisy Chain
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ +75 ° C
I / O connection input pair is mirrored to the other's output
3 x Analog input +/- 10VDC, 0 - 20mA (differential)
6 x Digital input with counter
3 x Relay outputs COM, NO

Double-lane recognition
Up to 60 fps at 1920 × 1080
Standalone database
IR distance up to 30 m
Day and Night function
Digital I/O (2 in / 2 out)
SD card slot for data
Built-in heater and fan
Recognize vehicles with speeds up to 100 km/h
Powered via POE / 12VDC
IP67 , Defog
31 languages on Web interface
CE, FCC, LVD, RoHS compliant

8 single ended input +/- 10V analog, +/- 5V
200kS / s (200 kHz) for each channel sampling rate
FIFO 2000 is sampled - the memory of 30 million data samples
16bit solution
Trigger mode: SW, Ext. clock, digital falling edge (post, pre, delay), analog
1 x 32-bit counter, max. 30 kHz
4 x digital input (wet) up to + 30VDC
4 x digital output (Open Collector) up to + 30VDC, 100mA
Overload protection up to 1.3A
1 x Ethernet port RJ45
Security: ID, password and IP filter
Powered by the PoE or 12 - 48VDC, 2,6W
Dimensions: 120 x 76 x 38 mm
Housing: Metal, with DIN bracket
Operating temperature: -25 - + 75 ° C

4 single ended input +/- 10V analog, +/- 5V, +/- 2.5V ... +/- 20mV
128kS / s for each channel sampling rate
FIFO: 4000 samples - memory 30 million data samples
24bit resolution
2 x analog output +/- 10V, +/- 5V, 0-5 / 10V
analog output 12bit resolution
Trigger mode: SW, Ext analog
1 x 32bit counter, max. 30kHz
1 x Encoder input: Qadrant / CW / CCW and pulse
3 x digital inputs (wet) up to + 30VDC
4 x digital output (Open Collector) up to + 30VDC, 100mA
Overload protection up to 1.3A
1 x Ethernet port RJ45
Security: ID, password and IP filter
Powered by the PoE or 12 - 48VDC, 2,6W
Dimensions: 120 x 76 x 38 mm | Housing: Metal, with DIN bracket
Operating temperature: -25 - + 75 ° C

Ethernet I/O module for the measurement of analog high-voltage differential inputs
8 x Analog input: +/-50V, +/-150V
4 x Digital output - Isolated Open Collector, max. 50VDC, 700mA per channel
16bit solution
Sample frequency: Normal mode 10 samples per second
Sample frequency fixed mode: 50 samples per second
Supports MODBUS TCP and UDP
Integrated Web Server - access with ID, password and IP filter
Power up and safe levels can be programmed
2 x RJ45 10 / 100Mbit ports - daisy-chain
Pair-connection - mirror one input to others output
Supply voltage: 12 - 48VDC 4,2Watt
Dimensions: 120 x 76 x 38 mm
Housing: plastic with DIN bracket

RS485 / RS422 / RS232 converter for Meter-Bus meters, actuators, etc.
Supports up to 100 Meter-Bus meters (slaves)
Selecting the serial port, only one can be selected to be active
2 x Baud rate (M-bus and COM port can be selected at different speeds)
Baud rate: 300 to 115,200 bps
Transparant data - no protocol conversion
M-bus connection is 2-wire , max. 350meter.
larger distance up to 5km requires a number of M-bus repeaters
Supply voltage: 10 - 30VDC, 1.8 - 12Watt
Dimensions: 122 x 72 x 33 mm | Removable terminal blocks
Operating temperature: -25 - + 75 ° C
DIN bracket
Robust plastic housing

RS485 / RS422 / RS232 Master Gateway to Meter-Bus Slaves (sensors, actuators, etc.)
Supports up to 100 Meter-Bus meters (slaves)
MODBUS RTU function codes: 0x03 and 0x04 readdata
Selection of serial port, only one can be selected to be active
Baud rate x 2 (M-bus and COM port can be selected at different speeds)
Baud rate M-bUS: 300-2400 bps
Baud rate COM port: 300-115200 bps
Transparent data - no protocol conversion
M-BUS connection, 2-wire, max. 350meter.
Greater distance up to 5km requires a number M-bus repeaters
Supply voltage: 10 - 30VDC, 1.8 - 12Watt
Dimensions: 122 x 72 x 33 mm
Removable terminal blocks
Operating temperature: -25 - + 60°C
DIN mount
Robust plastic case

Supports M-Bus Standard: EN-13757, CJ / T -188
1 x RJ45 Modbus TCP
1 x M bus for maximum 100 slaves
M-Bus Power limiter
1 X RS232 for firmware update
Modbus TCP / RTU Function code 0x03 and 0x04 To read measurement data
Baud rate: DIP switch to M-Bus and serial port from 300 to 115200 BPS. Standard M-Bus port- Data format: data bit 8, parity straight, stop bit 1
supports up to 100 m bus slaves
m-bus power protection
short circuit protection on M-bus
Firmware updates via serial port
gives PWR, MTX and MRX 3 LED Indicators
Wall Mounting
Dim: 123 x 102 x 40 mm
Supply voltage: 10 - 30VDC

Compact Modbus / TCP for RTU / ASCII Gateway with PoE
must not be programmed
1 x RJ45 10 / 100Mbps
1 x RS232 (DB9 Han)
Supports Modbus TCP / UDP Master and Slave
Supports Modbus RTU / ASCII Master and Slave
Baud Rate Up to 115,200 BPS
Self-Tuner for RS232
IEEE 802.3af - PoE (PD)
Supply voltage U / Poe: 12 - 48VDC 2Watt
Goal: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - + 75 ° C

Compact Modbus / TCP to RTU / ASCII gateway with PoE
not to be programmed
1 x RJ45 10 / 100Mbps
1 x RS485 / 422 (screw terminal)
baud rate up to 115,200 bps
Self-tuner for RS485 / 422
Automatic transmission / reception direction of RS485
IEEE 802.3af - PoE (PD)
Supply voltage u / PoE: 12 - 48VDC 2Watt
Dimensions: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - +75°C

Compact Modbus / TCP to RTU / ASCII gateway with PoE
not to be programmed
1 x RJ45 10 / 100Mbps
1 x RS232 / RS485 / RS422 (terminal block)
Choose only one COM port as interface
3-pin RS232 (RX, TX, GND)
baud rate up to 115,200 bps
Self-tuner for RS232
IEEE 802.3af - PoE (PD)
Supply voltage u / PoE: 12 - 48VDC 2Watt
Dimensions: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - +75°C

Compact Modbus / TCP to RTU / ASCII gateway with PoE
not to be programmed
1 x RJ45 10 / 100Mbps
1 x RS232 (terminal block) - 5-pin
1 x RS485 (terminal block ) - 2-pin
baud rate up to 115,200 bps
Self-tuner for RS232
IEEE 802.3af - PoE (PD)
Supply voltage u / PoE: 12 - 48VDC 2Watt
Dimensions: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - +75°C

Ethernet Gateway for CANopen networks and Modbus RTU
1 x RJ45 10 / 100Mbps
Protocol: Modbus TCP Server
1 x RS232 / RS485 port (non-isolated)
Modbus RTU slave
Baud rate: 1200-115200
1 x CAN port
CANopen
CAN Baud rate: 10K - 1M
Built-in 120 ohm termination
Dimensions: 122 x 72 x 33 mm
Supply voltage : 10 - 30VDC, 2,5Watt
Operating temperature: -25 - + 75 ° C
DIN bracket

1 channel detection of fluid leakage with MODBUS
Shutter local alarm of detection of water leakage
Acoustic alarm - adjustable
RS485 2-wire MODBUS RTU
2 x LED indicators for power and alarm
Relay output for alarm for water leakage - 30VDC / 2A
Monitor cable for liquid detector
Sensor cable can be up to 500 meters
Sensitivity is adjustable
Supports DCON and Modbus RTU protocols
Embedded Dual Watchdog
Operating temperature: -25 to + 75 ° C
Small form factor with DIN bracket
Dimensions: 83 x 70 x 29 mm
Operating voltage: 10 - 30VDC

The motion sensor light detection, temperature sensor for energy management
Connects energy management, local-lighting control via RS485 port
With powerful built-in relay for simple light activation 250VAC (1500 Watt T8 )
360 ° motion detection - up to 8 m in diameter and 4 meters height
Time delay / Sensitivity is adjustable
temperature sensor, - measuring the room temperature or fire alarm
Relay output to turn on the light via the PIR / light-strength and temperature sensors
RS485 2-wire communication bus
DCON and Modbus RTU protocols
ceiling surface mounted design
Supply voltage: 10 - 30VDC ca. 2W
Dimensions: Ø121 x 52 mm | IP20

Industrial / outdoor robust environment-measuring station
Partikkelstørrelser down from 0.3μm to 10 μm
CO2 0-9999 ppm - electrochemical sensor
temperature of -20 - +50°C
Humidity of 0 - 100% RH
Dewpoint measurement based on the temperature and moisture
Up to 180,000 logs with date and time stamps
Web-based configuration interface
Effective software: iOS APP and Android APP (free)
DCON, Modbus RTU / TCP and MQTT protocols
RS-485 / Ethernet / PoE
Relay output for local alarm or building management
Power supply: PoE and 12 - 48VDC ca. 3.5Watt
IP43 sealed enclosure (CO2 + temperature sensor)
Dimensions: 211 x 130 x 70 mm
DIN or wall mounting bracket

The indoor light-gauge, temperature and humidity sensor 3 in 1
For energy optimization and building automation systems
Measuring range of illumination: 0 to 20,000 lux
Temperature Range: -20 to + 60 ° C
humidity Measuring range: 0 to 100% RH
Supports DCON and Modbus RTU / TCP protocols
Supports MQTT protocol Ethernet interface
With RS485 / RJ45 Ethernet communications interface
Relay output - 6 Amp @ 250VAC
Power supply: PoE and 10 - 48VDC, ca. 2 Watt
Operating temperature: 0 - + 75 ° C
web configuration and firmware update via Ethernet
Ceiling Mounting

CO2 - CO - temperature - humidity
measurement of carbon monoxide and carbon dioxide
alarm device at high concentration
color LCD display with touch
CO 9-1000 ppm
CO2 0-9999 ppm
Electrochemical sensors (NDIR CO2 sensor)
temperature of -10 - + 50 ° C, humidity 0 to 100% RH
Up to 450,000 logs with date and timestamps
APP: iOS APP and Android APP, powerful software
DCON, Modbus RTU / TCP and MQTT protocols
RS-485 2-wire / Ethernet RJ45
Relay output for local alarm or building management
Power supply: PoE and 12 - 48VDC ca. 3.5Watt
IP43 sealed enclosure (CO2 + temperature sensor)
Dimensions: 114 x 106 x 56 mm
DIN or wall mounting bracket

Expansion bus - up to 32 I/O modules or remote modules up to 100 I/O
Peer-to-Peer communication (P2P)
1-wire bus: Up to 16 sensors for temp / moisture : -55°C - +125°C
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Task Builder:
50 Scheduled Tasks
50 Conditional Tasks
20 Restart tasks
20 Override Schemes
Email Alarms by User Terms
RTC with NTP synchronization
configuration of almost all I/O
No software Required
Basic Script Support for Advanced flexibility
Data logging, graphs (logged data)
Static or DHCP IP address
Modbus, SNMP, Remote Service, IP Filtering

Controlbyweb I / O module with digital in and relay Out
No programming required
Full control of web browser or XML messages
is also a Modbus / TCP slave
password protected
30vdc , 240vac, 12a relay switch
on / off or pulsed relay states
optically isolated digital input
suitable for monitoring / relation management
Remove-Reloading (peer-to-peer)
Auto-restart
Selectable TCP ports
Removable terminal connector
DIN rail or wall mounting
Power supply: 9-28VDC / 0.5a

Controlbyweb I / O module with digital in and relay Out
No programming required
Full control of web browser or XML messages
is also a Modbus / TCP slave
password protected
30vdc , 240vac, 12a relay switch
on / off or pulsed relay states
optically isolated digital input
suitable for monitoring / relation management
Remove-Reloading (peer-to-peer)
Auto-restart
Selectable TCP ports
Removable terminal connector
DIN rail or wall mounting
Power supply: 9-28VDC / 0.5a

Wireless network-based digital I / O module with 1-wire port
1 x Power Relay 12amp, com No, NC
1 x Digital Input Optoisolated 0 - 26VDC
1-wire bus for 4 Temp / Moisture Sensors
Wi-Fi 802.11b/g/n
Antenna inclusive
Range up to 100 meters
Logging of input, counter value
Temperature, Moisture, relay mode and volt in
Basic script for advanced flexibility
Send email alarms (up to 8 email addresses)
Static or DHCP IP address
RTC with NTP server synchronization
No software required
XML, Modbus / TCP and Remote Services
On-site updates
Removable terminal connector

Network-based Digital I/O Module
2 x Power Relay 3 Amp, COM NO, NC
2 x Digital Input Optoisolated 0 - 26VDC
Memory for 50,000 Loggings
Logging of Input, Counter value
Relay state and Volt in
Basic script for advanced flexibility
Send email alarms (up to 8 email addresses)
Static or DHCP IP address
RTC with NTP server synchronization
No software required
XML, Modbus / TCP and Remote Services
On-site updates
Removable terminal connector
Supply voltage: 9 - 28VDC

Network-based Digital I/O Module
2 x Power Relay 3 Amp, COM NO, NC
2 x Digital Input Optoisolated 0 - 26VDC
Memory for 50,000 Loggings
Logging of Input, Counter value
Relay state and Volt in
Basic script for advanced flexibility
Send email alarms (up to 8 email addresses)
Static or DHCP IP address
RTC with NTP server synchronization
No software required
XML, Modbus / TCP and Remote Services
On-site updates
Removable terminal connector
Supply voltage: POE or 9 - 28VDC

Web based controller with I/O, 1-wire bus
4 x digital inputs (Common GND)
1-wire bus, max. 16 sensors (temp / moisture etc.)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
16 Automatic Restart
20 Over Rule Terms
E-mail Alarms by defined conditions
Supports encrypted e- Mail servers such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Configurable Logging
Graph (Logged Data)
HTTPS / TLS encrypted
Static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC

Web based controller with I/O, 1-wire bus
4 x digital inputs (Common GND)
1-wire bus, max. 16 sensors (temp / moisture etc.)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
16 Automatic Restart
20 Over Rule Terms
E-mail Alarms by defined conditions
Supports encrypted e- Mail servers such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Configurable Logging
Graph (Logged Data)
HTTPS / TLS encrypted
Static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: PoE or 9 - 28VDC

4 x analog inputs with common GND
input voltage: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
Input current: 4-20mA - 200 Ohm Shunt resistance
2 X digital inputs / outputs: 0 - 5VDC
Digital I/O and Counter set up via the web server
1-wire bus for a maximum of 16 sensors
Temp/moisture/ultrasound, etc.
ermissions: Administrator, Manager , User
Tasks
50 Schedule Scheduled
50 Conditional
20 Torrect Scheduled
Email Alarms Based on Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
Basic script support for advanced flexibility
Logging and graph view
static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering

4 x analog inputs with common GND
input voltage: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
Input current: 4-20mA - 200 Ohm Shunt resistance
2 X digital inputs / outputs: 0 - 5VDC
Digital I/O and Counter set up via the web server
1-wire bus for a maximum of 16 sensors
Temp/moisture/ultrasound, etc.
ermissions: Administrator, Manager , User
Tasks
50 Schedule Scheduled
50 Conditional
20 Torrect Scheduled
Email Alarms Based on Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
Basic script support for advanced flexibility
Logging and graph view
static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering

Network-based I/O module control
For all ControlByWeb modules
Powerful built-in web server
Logging and automatic drawing of log files
Built-in Ethernet switch with two Ethernet connections
Expansion bus - Direct connection with up to 64 modules *
Supports USB WiFi adapters/USB flash
For 1-wire bus for temp/humidity sensors
Custom email alerts
Logical scripts or programs with Lua
Advanced planning in full calendar
Protocols: HTTP, HTTPS, SSL, SMTP, Modbus/TCP
Remote Services ™ server and client etc
Email alerts based on user defined conditions
Static or DHCP IP address configuration
XML, Modbus/TCP and SNMP interface options

8 x analog inputs - Sample Rate 25 times per second
8 x input - Single ended: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
input 1 - 4 Can be 4-20mA
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Tasks
50 schedule planned
50 Conditional
20 overroubed
Email Alarms by Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Logging - Graph Presentation
static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC

Network-based analog output Module
5 x Separate analogue output channels
Output signals: 0-5V, 0-10V, ± 5V, ± 10V, 4-20MA
The output signals are software configured
output signals are independently programmable and scalable
built in isolated DC-DC Supply
Voltage supply: 9 - 28VDC / 5WATT
No special software or device drivers Required
Password Protected Web setup and control pages
Static or DHCP IP address
XML and Modbus / TCP
can be updated on site
removable terminal connector

Modbus Master Controller for max. 32 Modbus RTU devices
1-wire bus for a maximum of 16 sensors (temp / moisture etc.)
Tasks:
50 schedule planned, 50 conditional
20 Terrul Terms
Email Alarms by defined conditions
Supports encrypted email servers, such as Gmail
RTC with NTP server synchronization
No software required
Configurable logging
Graph (logged data)
HTTPS / TLS encrypted
static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Robust cabinet for DIN rail / wall
Supply voltage: 9 - 28VDC

Web-based temperature and moisture data loggs
1-wire bus for a maximum of 16 sensors (Temp / Moisture)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
20 Override Schemes
Email Alarms, Custom (Encrypted Email Servers, such as Gmail)
Real Time Clock With NTP Server Synchronization
No Software Required
Basic Script Support for Advanced Flexibility
Configurable logging
Graph (logged data)
HTTPS / TLS encrypted
static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtration
On-site updates
Robust cabinet for DIN rail / wall
Supply voltage: 9 - 28VDC, 134MA

Web-based temperature and moisture data loggs
1-wire bus for a maximum of 16 sensors (Temp / Moisture)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
20 Override Schemes
Email Alarms, Custom (Encrypted Email Servers, such as Gmail)
Real Time Clock With NTP Server Synchronization
No Software Required
Basic Script Support for Advanced Flexibility
Configurable logging
Graph (logged data)
HTTPS / TLS encrypted
static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtration
On-site updates
Robust cabinet for DIN rail / wall
Supply voltage: POE or 9 - 28VDC, 134mA

Liquid depth measurement with RS485 interface
measuring depth: 0 - 12 meters
Operating temperature: -30 - + 140 ° C
House: PC / PBT, Cream transducer
Supply voltage: 8 - 24VDC < Br> Objective: Tip Ø 5cm
setup with RST-3002 programming module

1-wire combi sensor for temperature and humidity
3 connections: +5VDC, Gnd, data
Max. length of cable to controller: 180 metres
Mounting bracket for wall
Mounting bracket for penetration
Temperature range: -40 - +80°C
Accuracy: ± 0.4°C (0°C to 80°C)
Humidity range: 0 - 100% RH
Not suitable for environments with repeated or prolonged condensation
Accuracy: ± 2%
Sensor type: Digital 1-wire (Maxim DS18B20)
Cable length: 3 meters
Probe length: 100 mm
Probe diameter: 17.5 mm

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair - Input Mirrors at the second's output
8 x Digital input (counter): 0 - + 50VDC (500Hz) - Wet / Dry
8 x Digital output: Open Collector 0 - + 40VDC / 650MA per Ch
2 x RJ45 Ethernet - Daisy Chain
Supply voltage: POE or 12 - 48VDC / 4Watt

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I / O Pair - Input - Input Mirrors in the second's exit
16 x digital input (counter): 0 - + 50VDC (100Hz) - Wet
2 x RJ45 Ethernet - Daisy Chain
Supply voltage: POE or 12 - 48VDC / 3.2 Watt

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
2 x RJ45 Daisy Chain, only data is continued Further to Dual Watchdog
Operating temperature range: - 25 ~ + 75 ° C
I / O Pair Connection - Input Mirrors to another's output
8 x Power relay - electromechanical, COM NO
Rel becoming: On: 10ms, Off: 5ms
Relay Contact voltage and current: 24VDC / 250VAC / 5A
Electromechanical: Avoid inductive load
supply voltage: POE or 12 - 48VDC

10 pcs. Independent high voltage 15A relays - SPDT (Form C)
Relay spade terminals. COM, NO, NC
Web Server for Browser-based setup and control
No software or device drivers required
XML status and control page make PC applications simple
Can function as a Modbus/TCP slave
On / Off and Pulses
DIN rail Mountable - Open Board
LED Indicates the current relay mode
Ideal for industrisal applications
Power supply: 9 - 28 VDC / 1.5A
UL Approved relays (E197852).

Expansion modul med 2 kraft-relæer op til 20Amp
250VAC ved NO, 30VDC ved NC
10 polet fladkabel til Controller
Daisy chain til næste Expansion modul
RS485 kommunikation mellem modulerne
Forsyningsspænding: 9-28VDC
Mål: 99 x 78 x 36 mm

Expansion Modul til X-400-I og X-600M-I
8 x slutterelæ 125VAC / 30VDC 2,5Amp
10 polet interconnection fladkabel til Controller
RS485 kommunikation mellem enhederne
Forsyningsspænding: 9 - 28VDC fra Controller
Mål: 99 x 78 x 36 mm

Expansion module for X-400-I and X-600M-I
2 x Thermocouple connections for K-type Temperature sensor
10 pole interconnection flat cable for controller
RS485 communication between the devices
Supply voltage: 9 - 28VDC from Controller
Dim: 99 x 78 x 36 mm

Remote controlled 4 x relay outlets from 868MHz transmitter
4 x Shiftelle (COM, NO, NC)
Animal Relay Switching or Pulse
Secure Communication Protocol
IP67
Supply voltage: 6 - 32VDC
Temperature range: -10 - + 50 ° C
Measure: 90 x 54 x 27 mm

1 channel transmitter to receiver with relay outputs 868MHz
1 Contact
Momentary or Pulse
Safe Communication Protocol
IP66
Supply voltage: 3 x AAA batteries
Temperature range: -10 - + 50 ° C
Measure: 176 x 68 x 25 mm

Compact open board with 4 relay outputs
250VAC / 30VDC / 10A resistive load only
Controlled from USB via HID (E.g. usb-relay-hid )
Supply voltage: 5VDC
Supply via DC jack or terminal block
No cabinet
Please note no software is included
Get info on USB-RELAY-HID software online.

Compact open board with 4 relay outputs
250VAC / 30VDC / 10A resistive load only
Controlled from USB via HID (E.g. usb-relay-hid )
Supply voltage: 12VDC
Supply via DC jack or terminal block
No cabinet
Please note no software is included
Get info on USB-RELAY-HID software online.

Compact open board with 1 relay output
250VAC / 30VDC / 10A resistive load only
Controlled from USB via HID (E.g. usb-relay-hid )
Supply voltage: 5VDC via USB
No cabinet
Please note no software is included
Get info on USB-RELAY-HID software online.

WEB-based data logger for temperature and humidity sensors
Can be programmed to 3 second sample time
-55 - + 125°C, -40 - + 80°C 0 - 100%rH
4 pcs. 1-Wire bus for 16 sensors, each
Max. 64 pcs. temperature or temperature/humidity sensors
Max. distance to sensors: 180 meters
Tasks: 50 scheduled, 50 Conditional, 20 override
Email alerts, custom (encrypted email servers, such as gmail)
Real-time clock with NTP server synchronization
No software required
Configurable logging
Graph (logged data)
HTTPS/TLS encrypted
Static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtering
On-site is updated
For DIN rail / wall
Supply voltage: 9 - 28VDC, 134mA
Dimensions: 98 x 78 x 36 mm

WEB-based data logger for temperature and humidity sensors
Can be programmed to 3 second sampling time
-55 - + 125°C, -40 - + 80°C 0 - 100%rH
4 pcs. 1-Wire bus for 16 sensors, each
Max. 64 pcs. temperature or temperature/humidity sensors
Max. distance to sensors: 180 meters
Tasks: 50 scheduled, 50 Conditional, 20 override
Email alerts, custom (encrypted email servers, such as gmail)
Real-time clock with NTP server synchronization
No software required
Configurable logging
Graph (logged data)
HTTPS/TLS encrypted
Static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtering
On-site is updated
For DIN rail / wall
Supply voltage: PoE or 9 - 28VDC, 134mA
Dimensions: 98 x 78 x 36 mm

Web based controller with 8 digital inputs
Digital High is: +4 - +26VDC
8 x digital inputs Opto-isolated
Common ground
200Hz Counter - 24bit
Tasks: 50 Schedule Planned, 50 Conditional, 20 Tuffer Terms
Email Alarms by defined conditions
Supports encrypted e-mail servers such as Gmail
RTC with NTP server synchronization
No software required
Graph (Logged data)
HTTPS / TLS encrypted
Static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC
Dim: 98 x 78 x 36 mm

Web based controller with 8 digital inputs
Digital High is: +4 - +26VDC
8 x digital inputs Opto-isolated
Common ground
200Hz Counter - 24bit
Tasks: 50 Schedule Planned, 50 Conditional, 20 Tuffer Terms
Email Alarms by defined conditions
Supports encrypted e-mail servers such as Gmail
RTC with NTP server synchronization
No software required
Graph (Logged data)
HTTPS / TLS encrypted
Static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC
Dim: 98 x 78 x 36 mm

RS485 module for 6 Temperature sensors
6-channel RTD input
3-wire RTD input with elimination of wire resistance
Resolution: 16-bit
Individual channel configuration
Disconnected sensor detection
Double Watchdog
Supply: 10 - 30vdc
Operating temperature: -25 to + 75 ° C

Module to Can 2.0a and B
ISO 11898-2 standard
Baudrate 10Kbps for 1M bps
software for setting CAN and RS232 / 422/485
Transparency between RS-232 / 485/422 Via CAN bus
Full duplex on RS-232/422 units are not supported
CAN Bus Baud Rate Configuration
CAN Accept Filter Configuration
CAN 2.0A or 2.0B Specific Choice
RS-232 / 485/422 Baud rate and data file setting
RS-232/485/422 Respond Options
Setting: Normal or pair connection

Module A - Serial for Fiber - Fiber for Serial Link
Automatic RS-485 Directional Control
Optical Fibers Allows Transmission Up to 15 km to B Module
Avoid lightning and EMI / RFI interference
Supports +10 VDC ~ +30 VDC
ESD protection for data line RS-232/422/485
DIN rail mounting
support operating temperatures from -25 ° C ~ +75 ° C

Module B - Serial for Fiber - Fiber for Serial Link
Automatic RS-485 Directional Control
Optical Fibers Allows Transmission Up to 15 km to the A module
avoiding lightning and EMI / RFI interference
Supports +10 VDC ~ +30 VDC
ESD protection for data line RS-232/422/485
DIN rail mounting
support operating temperatures from -25 ° C ~ +75 ° C

8 x analog inputs - Sample Rate 25 times per second
8 x input - Single ended: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
input 1 - 4 Can be 4-20mA
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Tasks
50 schedule planned
50 Conditional
20 overroubed
Email Alarms by Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Logging - Graph Presentation
static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: PoE or 9 - 28VDC

Digital temperature sensor with 1-wire interface
Sensor diameter: 5.5mm
Sensor length: 50mm
Cable: 1 meter
3-wire cable: + 5VDC, GND, data
Max distance from feel to controller is 185 meters
IP66
stainless steel sensor

1-wire adapter box for K Thermopler element
acquire K-thermocoupler sensor
adapter with built-in DS18B20 Chip
interface is + 5VDC, GND, data
screw terminal for K-Thermoføler

Expansion module for X-400, X-600 Controller
with Daisy Chain for several I/O modules
16 x Dry Spst Form c relay - Signal relay
Relays can be grouped in common
Activation of Relays Can switch individual
16 x digital input - optoisolated, 4 - 28VDC
4 x analog inputs - 12bit, 0 - 5VDC, common gnd
LED Indication - Relay and DI status
Supply voltage: 9 - 28VDC ( Preferably 24VDC)
Dim: 219 x 126 x 50 mm
Weight: 342g
DIN mount

DIN bracket
Robust black anodized
47x35 mm

DIN kit for Teracom devices
2 x Bracket + 4 screws

Mediekonverter fra seriel til optisk fiber
Point til Point transmission
RS232 eller RS422 eller RS485
Op til 40 km med single-mode
ST stik - duplex
Til 9/125my single mode fiber
Reducerer signalinterferens
Beskytter mod elektrisk interferens
Baud rate op til 921,6 kbps
Temperaturområde: -40 til+75°C
Forsyningsspænding: 12 - 48VDC
Mål: 100 x 90 x 22 mm
DIN beslag som tilbehør
