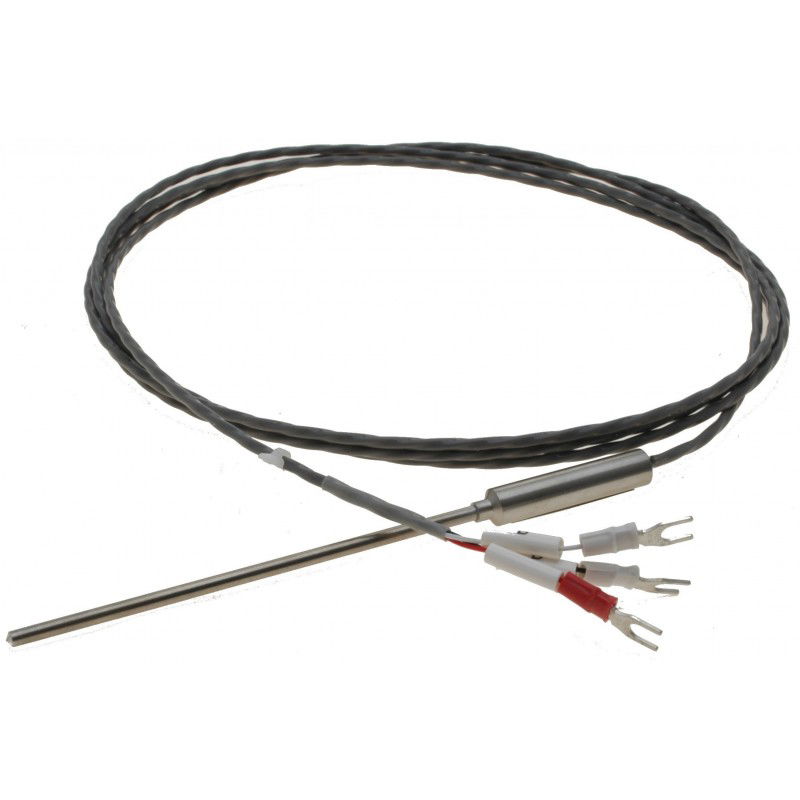

Pt100 sensor with 2 m cable
Steel tip of 100 mm ø3.2
Cable is rated for -80 - +200°C
3 thread PT 100 sensor
metal house 4 x 80mm
2 meter cable
accuracy: +/- 1 ° C
Temperature range: - 20 - +130°C
Pt.100 transmitter for your mounting
2 - 3-wire pt.100 sensor (red to 16, 2 x blue to 18 and A2
24v to 15 and 26
4 - 20 mA power Out of 16 and 26
4 - 20 mA The output gives power to PLC / instrument
Including PT100 feel with 80mm, Ø4MM Steel Tips
2 meter Flex cable
Supply voltage: 24VDC
Dim : H 74 x L 105 x B 22 mm
3 wire PT 100 sensor
100 ohms at 20°C
With 1 compensation cable (yellow)
Metal housing ø5 x 50mm
304 stainless steel
3 meter cable
Temperature range: - 50 – +100°C
