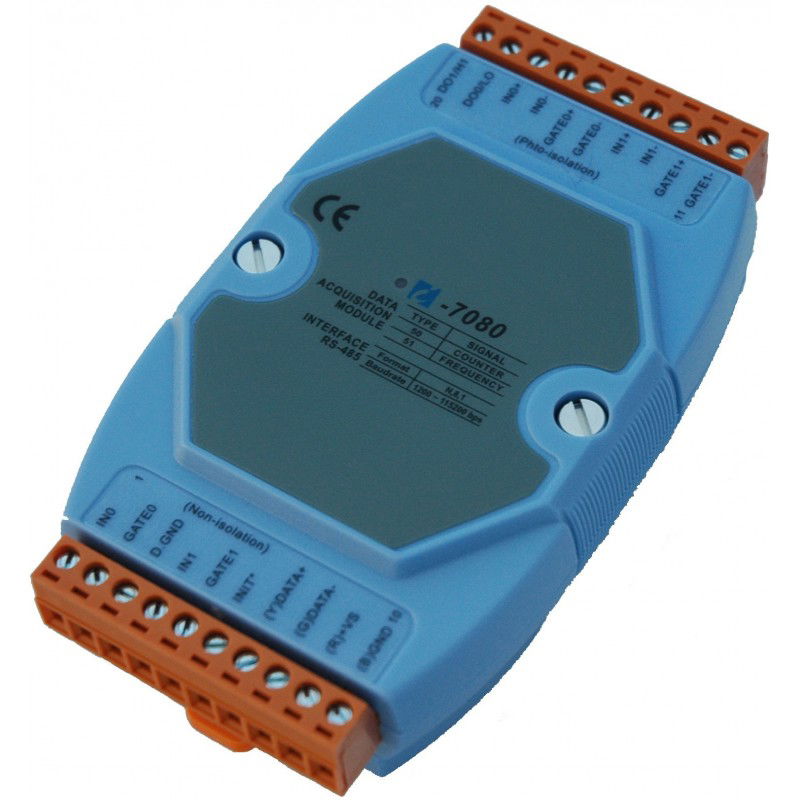

RS485 Frequency counter with 2 digital outputs
2 x counter entrance Max. 100kHz
input is Wet / Sink - Max + 30volt
32 bit counter - count up
for frequency and pulses
2 X Digital Output - Open Collector (OC)
Max. OC voltage: 30VDC / 30MA
Supply voltage: 10 - 30VDC
Dim: 123 x 72 x 35 mm
Operating temperature: -25 - + 75 ° C
M485-Count-I offers 2 high speed counter or frequency input channels and 2 digital output channels. Two types of digital input, one to isolated input, and the other is for non-insulated input. The isolated input provides 3750 VRM's insulation voltage, and the non-isolated input provides programmable threshold level.
The built-in digital filter is valid for both non-isolated and isolated input and can filter noise out how high / low pulse width is less than that digital high / low width.
The maximum number is up to 32-bit, and the maximum frequency is up to 100 kHz. The module also provides programmable alarm output with non-isolated Open Collector ..
Pico ADC-10 PC data acquisition
Intelligent Controller with Webserver
Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I / O module, counter, timer, email
Modbus / TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet to 6 x Analog input: 0 - +/- 10V, 0 - 20mA
A / L solution: 16bit
2 x Analog output: 0 - +/- 10V, 0 - 20mA
A / O resolution: 12bit
2 x Digital outputs: 0 - + 50VDC / 700mA Open Collector
2 x Digital input: Dry / Wet: 0 - + 30VDC < br> D / I count: 16bit, 50Hz
Power supply: PoE or 12 - 48VDC / 4.5Watt
Supports Modbus TCP/UDP master and slave
Supports Modbus RTU/ASCII master and slave
Max. TCP connections (masters) per serial port: 32
1 x RJ45 Ethernet
3 x RS485 ports
Max. 254 notes
Max. baud rate: 115.2kbps
12 - 48VDC / 1.7 Watts
Dimensions: 95 x 52 x 27 mm
Temp: -25 - +75°C
Static IP or DHCP
Web server for configuration (HTTP)
Automatic RS-485 direction control
Terminal blocks
Cost-effective Modbus gateway
RS485 / RS422 / RS232 Master Gateway to Meter-Bus Slaves (sensors, actuators, etc.)
Supports up to 100 Meter-Bus meters (slaves)
MODBUS RTU function codes: 0x03 and 0x04 readdata
Selection of serial port, only one can be selected to be active
Baud rate x 2 (M-bus and COM port can be selected at different speeds)
Baud rate M-bUS: 300-2400 bps
Baud rate COM port: 300-115200 bps
Transparent data - no protocol conversion
M-BUS connection, 2-wire, max. 350meter.
Greater distance up to 5km requires a number M-bus repeaters
Supply voltage: 10 - 30VDC, 1.8 - 12Watt
Dimensions: 122 x 72 x 33 mm
Removable terminal blocks
Operating temperature: -25 - + 60°C
DIN mount
Robust plastic case
