In this category you will find our analog and digital I / O modules. And a lot of other things including temperature sensors, Smart I / O modules, PLC and protocol converters. See blah. our 3 channel Quadrature counter with encoder for measuring eg. distance traveled.
High resolution Color Touch screen
Poe (power over Ethernet)
RS232 Port, RS485 Bus
USB Download Port
RTC (Real Time Clock)
Gui Design
Free HmiWorks Development Tool
Supports C language and ladder designer
Modbus / TCP, Modbus / RTU and DCON protocol
Size: 126 x 92 x 29 mm
Operating temperature: -20 ~ 50 ° C
supports custom third-party protocol (C-language)
2.8" Touch HMI device with Ethernet and PoE
High Resolution color touchscreen
RTC (Real Time Clock)
GUI design
Modbus TCP/RTU protocol
ESD protection: 4 kV
Operating temperature: -20 ° C ~ 70
HMI control with 4.3 "TFT Touch
IP40
interface: 2 x RS485
USB port for download
RTC - Real Time Clock
Free HmiWorks Development software
Supply voltage: 12 - 48VDC
Temperature: -30 - + 50 ° C
Goal: 140 x 87 x 41 mm
Less-Surface-Exposed Housing Design Design
HMI Panel with LCD Display, Ethernet and Com Ports
Can be connected to most of the manufacturer's I / O modules
Power supplied from PoE or 12 - 48VDC / 2.5 Watt
RS-485 (with self-tunes) < Br> RS-232 (RX / TX / GND)
RTC - Real-time tour
GUI design
Free HmiWorks development tools
supports C and Ladder designer
design suggestions from manufacturer
Modbus TCP / RTU protocol
Dim: 140 x 87 x 41 mm
2.8" HMI control panel for I / O modules
can be connected to many RS485 modules from the manufacturer
with TFT display and touch
RS485 Bus, Modbus RTU protocol
USB port for programming
Free HmiWorks Development Software
RTC Real Time Clock
Supply Voltage: 12 - 48VDC
Dim: 119 x 76 x 33 mm
Til mindre styringsopgaver, med TFT display og touch
RS-485 interface
DCON, Modbus RTU, Modbus ASCII
4 x Analog inputs (+/- 20 mA, 0 ~ 20 mA, 4 ~ 20 mA)
DIN rail / wall mounting
Dimensions 52 x 98 x 27
10 ~ 30 VDC supply voltage
-25 to + 75°C operating temperature
Compact design
Wide adjustment range

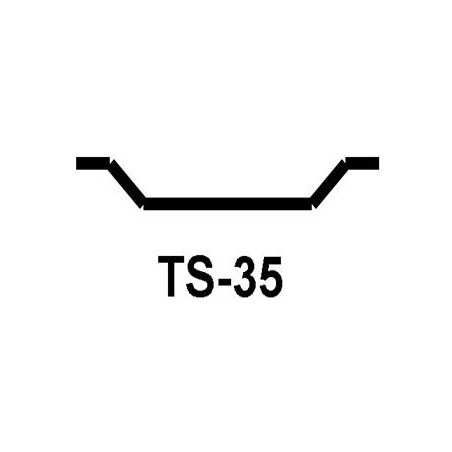

DIN Rail mountable 35mm
Thermostat 0 to 60 °C
Snap-Action Contact
Housing plastic, UL 94V-0, light gray
Max. inrush current AC 16 A for 10 seconds
Max. switching capacity NC: 10 A resistive / 2 A inductive @ AC 250 V, NO: 5A resistive / 2A inductive@250V 15A resistive/2A inductive@AC120V DC30W(DC24-72V)
IP20
Dimensions 60 x 33 x 43
Extra digital inputs and relay outputs via RS485
3 x digital input
3 x relay output
RS485 interface
Supports 2 different Baud Rates on port 1 and port 2
2 x RS232 1 x RS485 ports
Supports Modbus RTU/ASCII protocol
Supports 2 Master devices sharing 1 slave port
Data cache for each master port
RAW data mode for most request-response protocols
Built-in web server for easy configuration (HTTP)
Redundant Power Input: POE (IEEE 802.3AF, Class 1) and DC Jack
Allows automatic RS-485 management control
Tiny Form-Factor and Low Power Consumption
Read cache ensures faster response
Includes firmware for "Addressable RS-485 to RS-232 converter"
Supports Dual-Watchdog commands
Supports startup value and safe value for DO
Supports real-time monitoring/control for the built-in DI/DO
Includes a 1KB queue buffer for each RS-232 interface
Low power consumption
Supply: +10 - +30VDC
3 solid state relæudgange (kun til AC)
4 optoisolerede digitale indgange
Clearance
Ethernet I/O med 12/6 isolerede I/O kanaler.
Med tæller og Integreret WEB-server med nem Javaprogrammering.
12 kanalers DI, 2 kanalers DO, 2 kanalers tæller - Ethernet-based smart I/O
Fjernmonitorering og -styring
Supporterer Modbus, TCP/IP, UDP, HTTP, DHCP
Web-Server: XML, HTML 5, Java Script
PROFINET to Modbus Master Converter
4kV isolation between PROFINET and Modbus
Vibration and shock resistant metal housing
Operating temperature: -40°C to 105°C
1x RS485 up to 115200 bps for RS485
1x Ethernet ports 10/100 Base-T Autosensing
DIN rail mountable
Power input: 10-40VDC, 8-26VAC
Configuration via software
Dimensions: 76mm x 86mm x 40mm
Weight: 250g
In Plastik/Metal
For 35mm DIN Rail
Dimensions: 60x18mm
Leveres uden skrue
New model expected delivery in April 2025
Double-lane recognition
Up to 30 fps at 1920 × 1080
Standalone database / Log Export
IR distance up to 22 m
Day and Night function
Digital I/O (1 in / 1 out)
SD card slot for data
Built-in heater and fan
Recognize vehicles with speeds up to 100 km/h
Powered via POE / 12VDC
IP67 , Defog
31 languages on Web interface
CE, FCC, UKCA, LVD, RoHS compliant
Thermal resistance current transmission module for Pt1000
Power supply: 16 - 36VDC (two-wire loop power supply)
Output: 4 - 20mA
Connect I+ and GND I- to A/D input.

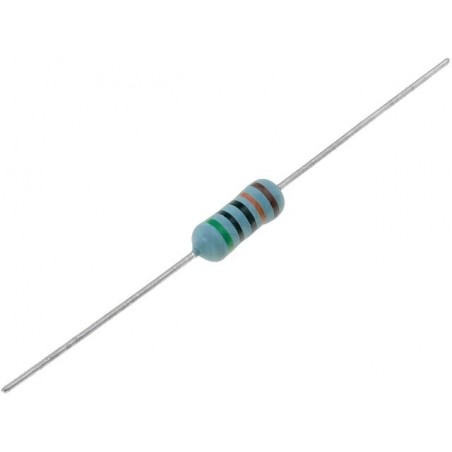

If A/D input is 0-10V, connect 125ohm across input
It will give 0-10V across the 125ohm resistor
For 2 - 3 lead platinum resistance PT1000 temperature sensor
Additional Pt1000 temperature sensor
Accuracy: 0.2% FS Related to the accuracy level of the connected platinum resistor
Dimensions: see drawings
number of channels 2
Coil Voltage 24Vdc
Load 10A, AC 250/125V, DC30V/28V
4.3 x 4.3 x 2cm/1.7" x 1.7" x 0.78"(L*W*H)
AC and DC voltage meter with true RMS
Resolution: 24 bits
0-264VAC 0-60Hz (3 phases)
L1, L2, L3, N
0-+/-370VDC
Input impedance greater than 2.4Mohm
Modbus RTU (2-wire RS485)
Built-in RS485 termination (120 ohms)
Up to 63 units per RS485 Bus
LED for communication status
Response time: less than 50mS
Temperature: -20 - +60°C
Supply voltage: 5 - 28VDC
Dimensions: 86 x 59 x 35 mm
Pigtail Fiber Cable
Multi mode
Simplex
1 x FC connector 50 / 125my
Aqua
0.5m
Discount on larger amounts
Automatic RS-485 Direction Control
3-way 3000 VDC Isolation Protection
Transmission Speed of up to 115200 bps
ESD Protection for RS-485 Data Line
The logger / controller with socket for internal I/O expansion bus (eg. Relay module)
is programmed with simple logic functions
IF-THEN-ELSE, AND and OR simplifies the setup
supports SNMP, SMTP , FTP, Modbus RTU and DCON
Ethernet 10/100/1000Mbit
setup via the integrated Web server
2 x RS232 ports
2 x RS485 ports
4 x relay outputs 2 end and 2 switch
4 x insulated inputs
supply voltage: 10 - 30vdc
1 x RS485 communication port
Protocol converter from M-BUS devices to PC/PLC which is Modbus Master
Up to 20 M-BUS units (meters)
RS485 Modbus interface for Modbus master
Free setup software
Supply voltage: 18 - 35VDC, 15 - 21VAC
Max. power consumption: 4 Watt
Baud rate: 1200 - 115,200 baud
Galvanic isolation
Temperature: -40 - +70°C
Dimensions: 71 x 60 x 60 mm
Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-SR is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate
Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-ST is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate
Industrial and IT room monitor unit
1 x RJ45 Ethernet 10/100 Mbps
USB port For USB camera
USB memory for logging, max. 64GB SD
Built-in USB hub
4 x Analog ports for sensors (can be expanded)
2 x Digital input (dry contact)
1 x CAM port (max. 10 sensors, can be expanded)
2 x Relay output
Desktop, Wall, (Option: DIN and 19" brackets as extensions)
Dimensions: 150 x 140 x 28 mm
Built-in web server
Web HMI
Supports Modbus TCP and MQTT protocols
2-port Ethernet switch (LAN Bypass) for Daisy-Chain Wiring
Double watchdog
Digital input: 16 channels
Wet contact input
Input high = +10 - 50VDC (ON)
Input low = < +4VDC
Supply voltage: 12 - 48VDC
Temperature: -25 - +75°C
Dimensions: 120 x 97 x 42
Built-in web server
Web HMI
Supports Modbus TCP and MQTT protocols
2-port Ethernet switch (LAN Bypass) for Daisy-Chain Wiring
Double watchdog
Digital input: 16 channels
Dry contact input
Input to Gnd = High (ON)
Input open = Low (OFF)
Supply voltage: 12 - 48VDC
Temperature: -25 - +75°C
Dimensions: 120 x 97 x 42
MODBUS TCP/IP module with analogue in- and output
User-definable Modbus TCP Slave addressing
Max. 10 clients connected
Supports RESTful API for IIoT applications
Supports peer-to-peer communications
Saves time and wiring costs with daisy-chain topologies
Active communication with WIN-OPC UA Server
Supports SNMP v1
Easy mass deployment and configuration with Device Search utility
Friendly configuration via Web browser
Temperature range -20 to +70°C
DIN Mount
Phoenix contacts
Supply 12 - 36VDC/ 3 Watt
Size: 124 x 84 x 28 mm
MODBUS TCP/IP module with analogue in- and output
User-definable Modbus TCP Slave addressing
Max. 10 clients connected
Supports RESTful API for IIoT applications
Supports peer-to-peer communications
Saves time and wiring costs with daisy-chain topologies
Active communication with WIN-OPC UA Server
Supports SNMP v1
Easy mass deployment and configuration with Device Search utility
Friendly configuration via Web browser
Temperature range -20 to +70°C
DIN Mount
Phoenix contacts
Supply 12 - 36VDC/ 3 Watt
Size: 124 x 84 x 28 mm
Supports Modbus TCP/UDP master and slave
Supports Modbus RTU/ASCII master and slave
Max. TCP connections (masters) per serial port: 32
1 x RJ45 Ethernet
3 x RS485 ports
Max. 254 notes
Max. baud rate: 115.2kbps
12 - 48VDC / 1.7 Watts
Dimensions: 95 x 52 x 27 mm
Temp: -25 - +75°C
Static IP or DHCP
Web server for configuration (HTTP)
Automatic RS-485 direction control
Terminal blocks
Cost-effective Modbus gateway
1-axis vibration measurement
Frequency range: 10 Hz to 1K Hz
Amplitude range: ±8g
Data Format:
Acceleration(mg): RMS, Maximum, P-P
Velocity(mm/s): RMS
Top 10 spectrum values(Amplitude/Frequency)
Crest Factor
Supported Modbus RTU Slave protocol
Size: 51 x 30 x 19mm
Supply voltage: 10 - 30VDC
Temp: -25 - +75°C
6 RTD Inputs for Temperature sensor
Lead Resistance Elimination for 3-wire Connection
High Resolution: 16-bit
Open Wire Detection
Built-in Dual Watchdog
RS485 MODBUS RTU
Baud rate: 1200 - 115,2kbps
Supply voltage: 10 - 30VDC
Temp: -25 - +75°C
Dim: 123 x 72 x 36 mm
DIN-mount
8x Analog Inputs to RS485
16-bit Readout
Power: 10 - 30 VDC
Dimensions: 123mm x 72mm x 35mm
Modbus RTU and DCON
Aluminum
80.4x47mm
Supplied without screws
DIN kit for Teracom devices
2 x Bracket + 4 screws
RS485 module for 6 Temperature sensors
6-channel RTD input
3-wire RTD input with elimination of wire resistance
Resolution: 16-bit
Individual channel configuration
Disconnected sensor detection
Double Watchdog
Supply: 10 - 30vdc
Operating temperature: -25 to + 75 ° C
10 pcs. Independent high voltage 15A relays - SPDT (Form C)
Relay spade terminals. COM, NO, NC
Web Server for Browser-based setup and control
No software or device drivers required
XML status and control page make PC applications simple
Can function as a Modbus/TCP slave
On / Off and Pulses
DIN rail Mountable - Open Board
LED Indicates the current relay mode
Ideal for industrisal applications
Power supply: 9 - 28 VDC / 1.5A
UL Approved relays (E197852).
CO2 - CO - temperature - humidity
measurement of carbon monoxide and carbon dioxide
alarm device at high concentration
color LCD display with touch
CO 9-1000 ppm
CO2 0-9999 ppm
Electrochemical sensors (NDIR CO2 sensor)
temperature of -10 - + 50 ° C, humidity 0 to 100% RH
Up to 450,000 logs with date and timestamps
APP: iOS APP and Android APP, powerful software
DCON, Modbus RTU / TCP and MQTT protocols
RS-485 2-wire / Ethernet RJ45
Relay output for local alarm or building management
Power supply: PoE and 12 - 48VDC ca. 3.5Watt
IP43 sealed enclosure (CO2 + temperature sensor)
Dimensions: 114 x 106 x 56 mm
DIN or wall mounting bracket
The indoor light-gauge, temperature and humidity sensor 3 in 1
For energy optimization and building automation systems
Measuring range of illumination: 0 to 20,000 lux
Temperature Range: -20 to + 60 ° C
humidity Measuring range: 0 to 100% RH
Supports DCON and Modbus RTU / TCP protocols
Supports MQTT protocol Ethernet interface
With RS485 / RJ45 Ethernet communications interface
Relay output - 6 Amp @ 250VAC
Power supply: PoE and 10 - 48VDC, ca. 2 Watt
Operating temperature: 0 - + 75 ° C
web configuration and firmware update via Ethernet
Ceiling Mounting
The motion sensor light detection, temperature sensor for energy management
Connects energy management, local-lighting control via RS485 port
With powerful built-in relay for simple light activation 250VAC (1500 Watt T8 )
360 ° motion detection - up to 8 m in diameter and 4 meters height
Time delay / Sensitivity is adjustable
temperature sensor, - measuring the room temperature or fire alarm
Relay output to turn on the light via the PIR / light-strength and temperature sensors
RS485 2-wire communication bus
DCON and Modbus RTU protocols
ceiling surface mounted design
Supply voltage: 10 - 30VDC ca. 2W
Dimensions: Ø121 x 52 mm | IP20
1 channel detection of fluid leakage with MODBUS
Shutter local alarm of detection of water leakage
Acoustic alarm - adjustable
RS485 2-wire MODBUS RTU
2 x LED indicators for power and alarm
Relay output for alarm for water leakage - 30VDC / 2A
Monitor cable for liquid detector
Sensor cable can be up to 500 meters
Sensitivity is adjustable
Supports DCON and Modbus RTU protocols
Embedded Dual Watchdog
Operating temperature: -25 to + 75 ° C
Small form factor with DIN bracket
Dimensions: 83 x 70 x 29 mm
Operating voltage: 10 - 30VDC
Ethernet Gateway for CANopen networks and Modbus RTU
1 x RJ45 10 / 100Mbps
Protocol: Modbus TCP Server
1 x RS232 / RS485 port (non-isolated)
Modbus RTU slave
Baud rate: 1200-115200
1 x CAN port
CANopen
CAN Baud rate: 10K - 1M
Built-in 120 ohm termination
Dimensions: 122 x 72 x 33 mm
Supply voltage : 10 - 30VDC, 2,5Watt
Operating temperature: -25 - + 75 ° C
DIN bracket
RS485 / RS422 / RS232 Master Gateway to Meter-Bus Slaves (sensors, actuators, etc.)
Supports up to 100 Meter-Bus meters (slaves)
MODBUS RTU function codes: 0x03 and 0x04 readdata
Selection of serial port, only one can be selected to be active
Baud rate x 2 (M-bus and COM port can be selected at different speeds)
Baud rate M-bUS: 300-2400 bps
Baud rate COM port: 300-115200 bps
Transparent data - no protocol conversion
M-BUS connection, 2-wire, max. 350meter.
Greater distance up to 5km requires a number M-bus repeaters
Supply voltage: 10 - 30VDC, 1.8 - 12Watt
Dimensions: 122 x 72 x 33 mm
Removable terminal blocks
Operating temperature: -25 - + 60°C
DIN mount
Robust plastic case
4 single ended input +/- 10V analog, +/- 5V, +/- 2.5V ... +/- 20mV
128kS / s for each channel sampling rate
FIFO: 4000 samples - memory 30 million data samples
24bit resolution
2 x analog output +/- 10V, +/- 5V, 0-5 / 10V
analog output 12bit resolution
Trigger mode: SW, Ext analog
1 x 32bit counter, max. 30kHz
1 x Encoder input: Qadrant / CW / CCW and pulse
3 x digital inputs (wet) up to + 30VDC
4 x digital output (Open Collector) up to + 30VDC, 100mA
Overload protection up to 1.3A
1 x Ethernet port RJ45
Security: ID, password and IP filter
Powered by the PoE or 12 - 48VDC, 2,6W
Dimensions: 120 x 76 x 38 mm | Housing: Metal, with DIN bracket
Operating temperature: -25 - + 75 ° C
DIN rail
2 meters
Width: 3.5 cm
Height: 1.5 cm
TS35 Standard
Steel
RS-485 Interface
DCON Modbus/RTU Protocol
8 x Analog Inputs
4 x Relay Outputs
DIN rail / wall mount
Temperature: -25 to +75°C
2-pole relay switch with 230V AC
DIN rail mounting
Power: 12A
screw connection
coil resistance: 19,465 kΩ
Dimensions: 77 x 27,2 x 78,3 mm
operating temperature: -40 ° C + 70 ° C
Flushing effect: 1W
I / O box with RS485 port for PC
8 digital input channels and 3 relay output channels
Form A Power relay output
Sink & nbsp; and source type for digital input
Digital input channels can be used as 16-bit counters
Configurable Power-on value settings
Configurable Safe Value Settings
Dual Watchdog
Wide operating temperature range: -25 ~ + 75 ° C
Baud rate (bps): 10K - 1M
Terminator Resistor: 120 Ohms
3000VDC DC-to-DC isolation 2500Vrms for photo-couple
ISO 11898-2, CAN 2.0A and CAN 2.0 B
SC single mode, 1310 nm
RS-232 COM1
+10 - + 30VDC unregulated
-25 - + 75 degree driftemperatur
10-90% humidity
4 x Digital input and 4 x relay output
Form A and Form C Power relay
Source and Sink type of D/I
D/I the entries is also 16-bit counter
Configurable Power-on settings
Configurable Safe Value setting
Dual Watchdog
Temperature range -25 to + 75 ° C
Supply voltage: 10 - 30VDC
DIN bracket
RS485 module with volt / mA output. Digital input
4 x analog output - 0 - +/- 10V and 0-20mA
Resolution: 14bit
5 x Digital input - Active high on contact for frame
RS485 Bus - Module is Slave
Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rate: 1200 ~ 115200 bps
Supply: 10 ~ 30 VDC
Web-baseret I/O modul, Modbus/TCP / UDP
4 x Analog inputs (differential) voltage or current
Resolution: 16bit
Analog Input: +/- 10 V, 0 - 20mA (jumper)
4 x Analog outputs voltage or current
Analog output: +/- 10VDC, 0 - 20mA (jumper)
4 x Digital inputs (dry or wet), max. + 30VDC
I / O Pair-function - the input is mirrored to the second output
10 samples per second (fast: 50 samples)
Protocol: Modbus TCP / UDP
Supply voltage: 12-48 Volt DC / 5Watt
PROFIBUS TO HART Convert, Gateway
4 x HART Canals
Max. 2 pcs. HART Masters
Point-to-Point or Multi-Drop HART Mode
Possibility of connecting 15 HART modules
PWR / RUN / ERR indication LED
Built-in Watchdog
4 kV ESD Protection
Operating temperature -25-75 ℃
for DIN rail mounting
868MHz Transceiver with 2 x Dry input, 2 x Relay
2 relay outputs, 250VAC/5A, 12V/10A
2 contact inputs, end contact so-called dry contact
Up to 1000 meters in range with gain antenna
Rubber antenna included
Watchdog function
Supply voltage: 12 - 32VDC
Isoleret DC Current Input/Output Modul
3- vejs (power/input/output) isolation (1000 VDC)
Udvidet drifttemperatur (-25 ~ +75°C)
Til DINskinne montering
Input og output-stik på den modsatte side
Isoleret DC Voltage Input/Output Modul
3- vejs (power/input/output) isolation (1000 VDC)
Udvidet drifttemperatur (-25 ~ +75°C)
Til DINskinne montering
Input og output-stik på den modsatte side
Serial to HART Convert
Allows 2 pcs. Hart Masters
Point-to-Point or Multi-Drop Hart Mode
Possibility of connecting 15 HART modules
Point-to-point or multi-drop HART mode
for configuration of modules
Isolated COM 1: RS-232 / 422/485
PWR / RUN / ERR INDICATION LED
Built-in Watchdog
4 kV ESD protection
Humidity meter
Humidity / temperature data logger
Long-term monitoring of rooms
With alarm function and interface
Numeric and graphic display
MOXA ioLogik E2210
Ethernet Micro RTU Controller
1 x 10/100 Mbps, RJ45
1.5 KV magnetic isolation
Modbus / TCP, TCP / IP, UDP, DHCP, Bootp, SNMP ( MIB for I / O and Network), HTTP, CGI, SNTP
RS-485-2w Data +, Data-, GND
15 KV ESD
12 x digital input - source type
Digital output: 0 to GND
Logic 1 open
Wet Contact: Logic 0 0:02 3 VDC
Logic 1 10:02 30 VDC (DI COM two DI)
8 x Open Collector sink type: 36 VDC / 200 mA
Power supply: 12-36 VDC
8 channel analog output module, Modbus protocol
Source type power output
8 x 12-bit analog outputs
Individual Channel Configuration
Cable Break Detection at 4-20mA
8kV ESD Protection
Power-on Value Programming
Security Value Programming
Temperature -25 to +75°C
Gateway from Ethernet slave to PROFIBUS master
protocol / hierarchy: DP-V0 Slave
PROFIBUS Speed (Kbps) in 10 step from 9.6 - 12000
speed setting is automatic
Max. Input data length: 240 byte
Max. Output data length: 240 bytes
Address setting: 0 ~ 126 Set by DIP switch or EEPROM
Ethernet protocol: TCP / UDP server / client
Configuration: Web Configuration
Ethernet module with 2 digital inputs and 1 relay output
2 x digital dry contact - active high by connecting contact
1 x Power relay, 250vac / 5a, 30vdc / 5a
Avoid inductive load to relay
P2P Function that reflects an input to other module output
Supports Modbus / TCP and UDP Slave
Power supplied from PoE or 12 - 48VDC
PoE: IEEE802.3af, Class 1
Operating temperature: - 25 - + 75 ° C
Dim: 98 x 52 x 27 mm
DIN bracket
5 kanals analog input
2 kanals analog output
2 kanals digital input
2 kanals digital output
Pt100 sensor with 2 m cable
Steel tip of 100 mm ø3.2
Cable is rated for -80 - +200°C
RS485 module with 2-channel strain gauge gauge
high resolution: 16-bit
excitation voltage range: 0 ~ +10 V.
50 Hz Event counter (digital input)
high / low alarm (Digital Output)
Linear Map Function
3000 VDC Intra Module Isolation
Double Watchdog
Temperature Area: -25 to + 75 ° C
Supply Voltage: 10 - 30vdc
Dim: 123 x 76 x 35 mm
125 Ω Shunt resistance, 1 pc. pr. Channel
RS485 module with 3-axpet Encoder input
1MHz Frequency input
input voltage: Up to 5VDC
Other voltages are with external resistance
32 bit counter
Quadrant, Pulse / Dir, CW and CCW
RS485 port - 1200 - 115.2K Baud
Supply voltage: 10 - 30VDC
Dim: 123 x 72 x 35 mm
RS485 Frequency counter with 2 digital outputs
2 x counter entrance Max. 100kHz
input is Wet / Sink - Max + 30volt
32 bit counter - count up
for frequency and pulses
2 X Digital Output - Open Collector (OC)
Max. OC voltage: 30VDC / 30MA
Supply voltage: 10 - 30VDC
Dim: 123 x 72 x 35 mm
Operating temperature: -25 - + 75 ° C
37-polet terminalkort
16 stk. BNC 3
37 banan 4mm stik
2.4GHz Omni directional antenna - dipole
for pipe montage
N-female connector
1 meter RG58 Coax cable
1 pc. RSMA - Male included
Weight: 1.4KG
Length: 45 cm
Diameter: 35mm
Versatile frequency counter, pulse counter via the USB port
Powered from the USB port
A total of 8 entries, of which:
4 channels for UP/DOWN, DIR/PULSE, Phase AB
8 channels for Count-Up and frequency counter
32 bit resolution
Max. 500kHz (non-isolated)
Input voltage: 0 - +30V
USB 2.0
YOUR assembly
Dimensions: 107 x 102 x 33 mm
Operating temperature: -25 - + 75°C
16 analog inputs with common ground
or 8 differencial inputs.
Up to +/- 10 Volt, 250kHz
16 Bit resolution
Software Support: LabVIEW, Matlab
Software Support : C / C++, Visual Basic, Visual Studio.net
Power from the USB port
RS485 I/O module with 4 digital inputs and 5 relay output
4 x digital input (Wet) active with Volt in
digital input as 16 bit counter - 100Hz
5 x relay output - COM, NO
Supply: 10 - 30vdc
DIN
RS485 I / O Module
7 digital inputs - Contact or volt in
8 digital outputs with connect contact function
Supply: 10 - 30VDC
8 digital outputs and 4 digital inputs
Open Collector Output
Photocouple Isolation
Digital input channels can be used as 16-bit counters
Configurable Power-on Value settings
Configurable settings for sure value
3750 Vrms insulation voltage
Dual Watchdog
Wide operating temperature range: -25 to + 75 ° C
RS485 Module - Slave, with digital input
8 x digital inputs for DC and AC
Voltage monitoring
input voltage: 80 - 250VAC / DC
Supply: 10 -30vdc
RS485 Module with 16 digital inputs
inputs are Dry Contact - High at contact to GND
RS485 The module is slave
supply: 10 - 30vdc
DIN bracket
Power or Voltage Output
0 - +10VDC, 0 - 20mA, 4 - 20mA
Resolution: 12-bit
Software Selectable Power or Voltage Output
Output Cable Detector for Power Output (4 - 20mA)
Backlink Voltage or Current
Configurable Power-on Value
Configurable Safe Value
3000 VDC Intra Module Isolation
Programmable Output Slope
Dual Watchdog
Temperature Range: -25 to +75°C
8 channel analog input module for RS485 Bus
16bit resolution
10 measurements per second (total)
for current measurement - shunt with 125 ohm resistance
Supply voltage: 10 - 30vdc / 1.3 watt
Dim: 123 x 72 x 35 mm
with your bracket
20 channel analog input module for RS485 Bus
16bit resolution
20 Single Ended inputs (common frame) - Only for Volt
10 differential entrances for volts about power
10 measurements per second (Total )
Jumper Setting in the module
Supply voltage: 10 - 30vdc / 1.3 watts
Dim: 123 x 72 x 35 mm
DIN bracket
Intelligent Controller with Webserver
Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I / O module, counter, timer, email
Modbus / TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet to 6 x Analog input: 0 - +/- 10V, 0 - 20mA
A / L solution: 16bit
2 x Analog output: 0 - +/- 10V, 0 - 20mA
A / O resolution: 12bit
2 x Digital outputs: 0 - + 50VDC / 700mA Open Collector
2 x Digital input: Dry / Wet: 0 - + 30VDC < br> D / I count: 16bit, 50Hz
Power supply: PoE or 12 - 48VDC / 4.5Watt
Intelligent Controller with Webserver
Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I / O module, counter, timer, email
Modbus / TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet
16 x Digital input: Wet: 0 - + 50VDC
D / I count: 16bit, 50Hz
Power supply: PoE or 12 - 48VDC / 4.5 Watt
Intelligent Controller with Webserver
Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I / O module, counter, timer, email
Modbus / TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet
7 x Temperature sensor inputs (differential)
2/3-wire Pt100, Pt1000, Ni120, CU100, Cu1000
A/I resolution: 16bit
12 samples per second (Total)
Individual sensor configuration
Power supply: PoE or 12 - 48VDC / 4.5Watt
1 x RJ45 - 10/100 Base-TX Ethernet
Can be powered from a PoE
Integrated Web Server Setup
Logical functions with IF-THEN-ELSE
Rules, I / O, CGI counter, Timer, etc.
Email setup via Web browser
Modbus / TCP Protocol to 6 x Digital input (Wet Contact - external voltage for High)
Digital input has 16 bits counter
6 x Relay Power Output: 5A at 30VDC / 250VAC
Power over Ethernet (PoE) or an external DC power supply
Supply voltage: PoE or 12 - 48VDC / 5Watt
temperature range -25 ° C ~ + 75 DEG C
Intelligent Controller with Webserver
Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I/O module, counter, timer, email
Modbus/TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet
8 x Power relay output, COM NO
Relay switch: 30VDC, 250VAC 5A, only resistive load
Supply voltage: PoE or 12 - 48VDC / 5.5Watt
Intelligent Controller with Web Server
Logical functions, such as: IF-THEN-ELSE
No programming. Just select, click and finish
Supporter: I/O module, counter, hour, e-mail
Modbus / TCP protocol for SCADA software Seamless integration
IEEE 802.3af compatible power over Ethernet ( Poe)
1 x RJ45 - 100Mbit Ethernet
7 x Analog input: 0 - +/-2.5V, 0 - 20mA (ext. Resistors)
A/I Resolution: 16bit
10 Samples per Second
A/I Also to Thermocouller: J, K, T, E, R, S, B, B, C, L, M, LDIN43710
6 x Digital Output: 0 - + 50VDC / 700mA Open Collector
Supply voltage: POE or 12 - 48VDC / 4.5Watt
