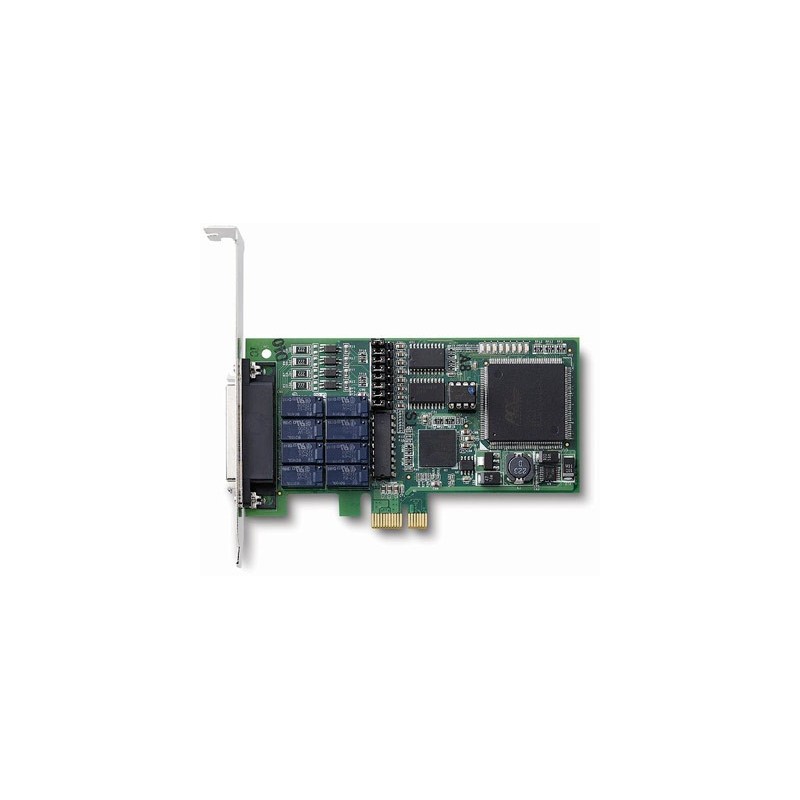

Adlink LPCIE-7250. 8 kanals relæ output, 8 isolerede digitale input, PCI Express, Low Profile

X1 PCI Express Interface
8-CH SPDT relay, non latching
8-CH isolated digital inputs
On-board LED indicators for relay status
On-board relay driving circuits
Relay output status read back

REL8OPT8PCI-LE
3.056,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

REL8OPT8PCI-LE (LPCIe-7250) provides 8-CH SPDT (Form C) relay outputs and 8-CH isolated digital inputs. The status of each relay output is represented by an onboard LED. When the relay is in SET condition, its corresponding LED will turn ON, and on the contrary, it is OFF. All digital input channels are non-polarity, optically isolated, and may be set to use RC filter or not. The devices are suitable for collecting digital inputs in noisy environments.

Dimensioner
107 x 162 mm
Indgange
8 optoisolerede (PC814). Begge ledere er ført ud for hver indgang ndgangsniveau: Ikke polariseret Logisk 0: 0 – 1,5 VDC Logisk 1: 5 – 24 VDC
Isolation
2.500 VDC
Software
Drivere til DOS, Windows 2000, XP, Win7 og Win8 Linux og Labview medfølger
Stik
miniDB50 m/klemmer
Udgange
8 relæer, 4 slutte (form A), 4 skifte (form C) Belastning: 120 VAC/DC 0,5 A / 24 VDC 1 A Skiftetid: Typisk 8 ms
