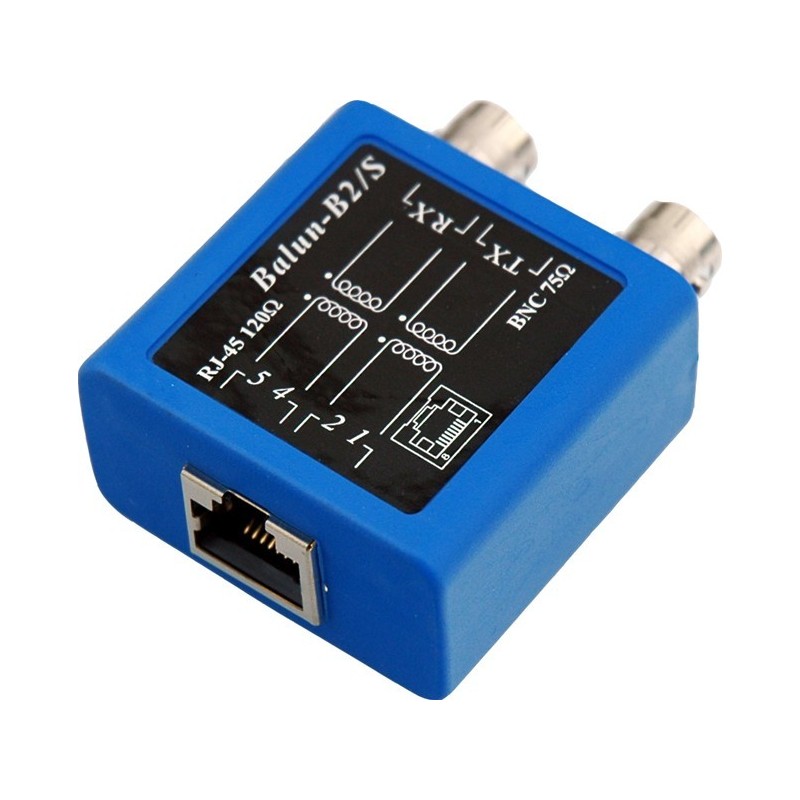

RJ45 for BNC Balun splitter for E1-T1 network

Splitter led from 1 x RJ45 to 2 x BNC
75 ohm Coax impedance to 120 ohm twisted pair (E1)
2Mbit to E1 / T1 network
NOT suitable from Ethernet to BNC !!
Two BNC box type
RJ45 Shielded - 2xBNC/F
RJ45 PIN ASSIGNMENT: P1(+) / P2(-) , P4(+) / P5(-)


TWINAX-BALUN
406.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Cable splitter with 1 RJ45 connector and 2 BNC connectors
Can only be used for E1 / T1 telecommunications network. Works in both directions
Cannot be used for conversion between RJ45 and BNC Ethernet
Works with both balanced and unbalanced E1
Converts between 75Ω COAX cable and 120Ω twisted pair E1 (2048 Kbit)
