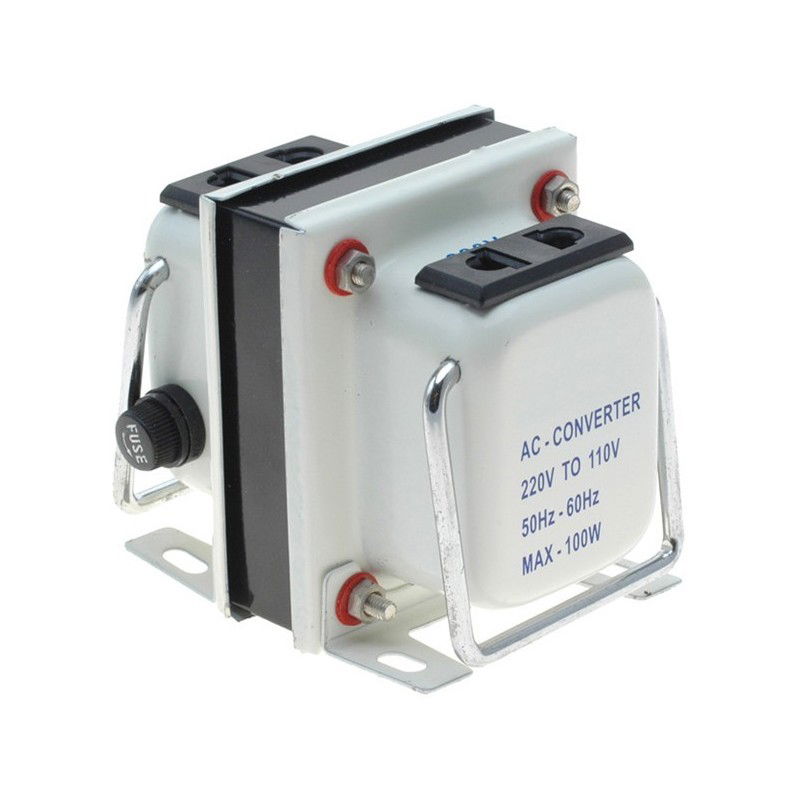

AC voltage converter between 110VAC and 220VAC, 100Watt, autotransformer, NOT galvanically isolated, only for LAB use

110VAC to/from 230VAC universal transformer
Connect 110VAC equipment to 230VAC mains voltage
Connect 230VAC equipment to 110VAC mains voltage
Cable with EU male plug and US male plug can be purchased separately - may NOT be used outside the LAB environment!!
The cable has 2 male plugs and is therefore very dangerous in unskilled hands !!!
No galvanic isolation between primary and secondary

CNV110V220V
364.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The transformer is used when the voltage from the supply network must be changed from 115 V to 230 V or vice versa. Converter cable for LAB use can be purchased separately, and has an American plug type at one end and a European plug at the other. This cable is used between the transformer and the voltage source. The equipment is connected to the available plug. Autotransformer. Note no galvanic isolation between primary and secondary

Indgang
115 eller 230 Volt, 50 – 60 Hz
Montering
4 stk. M5 huller
Stik
Benytter både amerikanske og danske strømstik (omformerkabel medfølger)
Udgange
115 eller 230 Volt, 50 – 60 Hz
Weight
1,2 kg
