Wifi bridge, Wifi Uplink, Ethernet/UART to Wi-Fi converter. 3 different interfaces Wifi, Ethernet and UART RS232/485. Roaming

Wifi Uplink or Ethernet WAN connection
1 x LAN port
1 x RS232 / RS485 for Modbus RTU
1 x Digital input / 1 x Digital output
Roaming - field strength controlled
IEEE 802.11a/b/g/n/ac Wi-Fi
Supply voltage: 9 to 48 VDC
DIN rail
Operating temperature -20℃ to +60℃
Dimensions: 131 x 108 x 31 mm

WLAN-AP-CNV
4,600.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

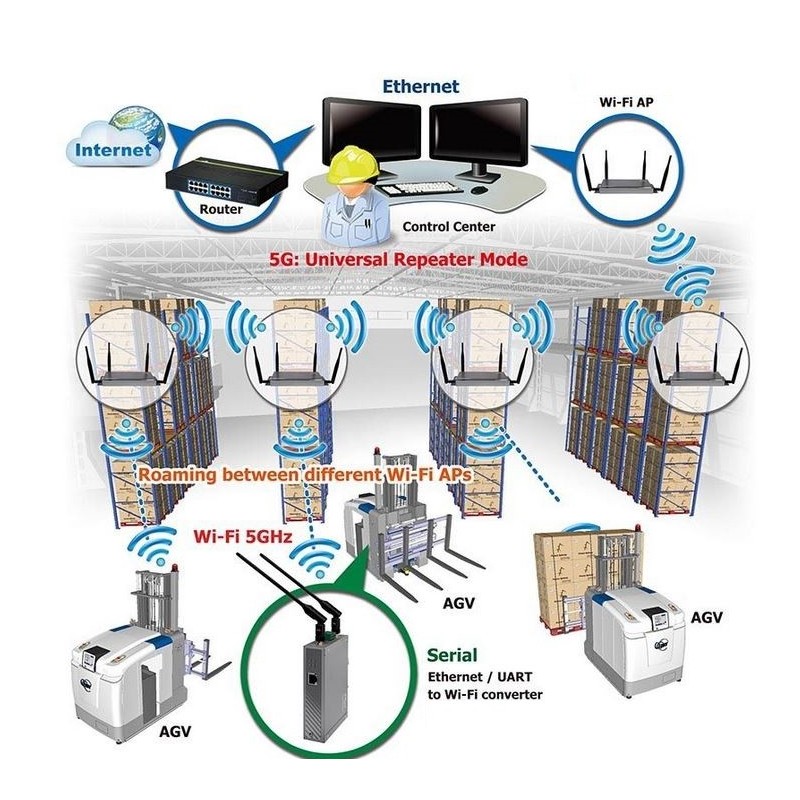

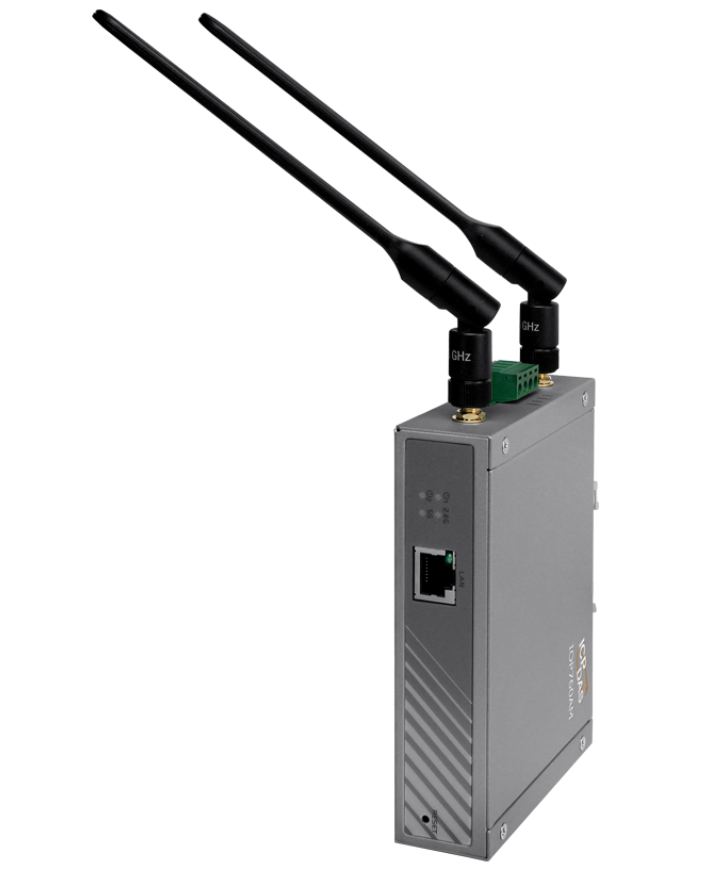

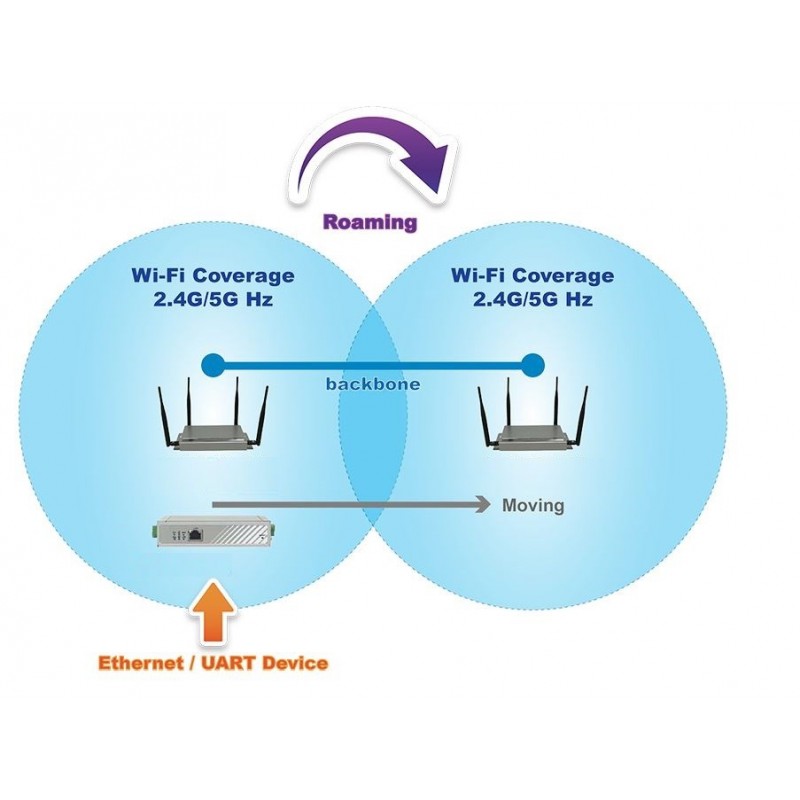

WLAN-AP-CNV is a wireless converter . The data can be exchanged via the three different interfaces Wi-Fi, Ethernet and UART. The Wi-Fi interface supports IEEE 802.11 b/g/n/ac standard. Users can select IEEE 802.11 b/g/n for 2.4GHz connections or select IEEE 802.11 ac for 5GHz connections. When the Wi-Fi strength is lower than the threshold setting, WLAN-AP-CNV can connect to another stronger one via the roaming function. The Ethernet interface can be connected by the Ethernet switch. All the Ethernet devices exchange data via the Ethernet switch and WLAN-AP-CNV. In the UART communication, data can be sent directly or formed by Modbus protocol.

Afstand
Op to 50 meters

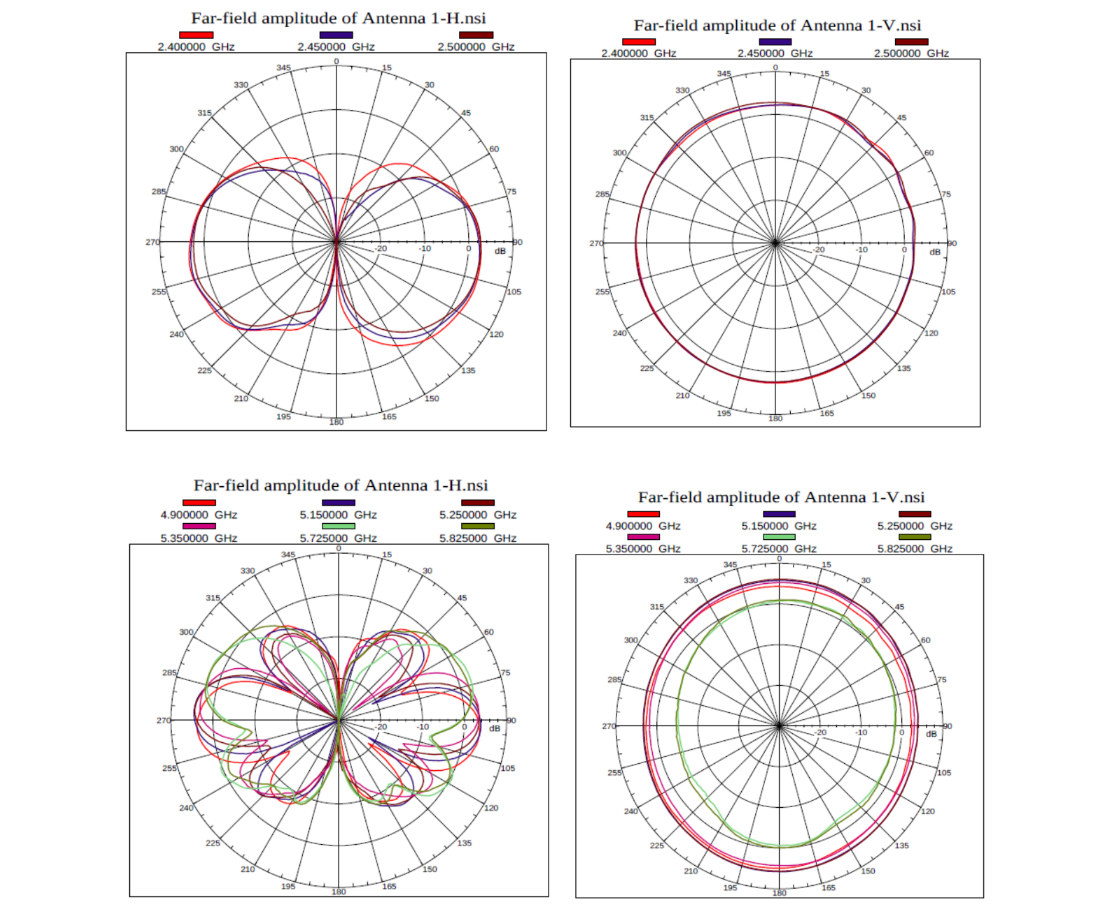

Antenne
5 dBi 2.4/5 GHz
Driftstemperatur
-20 ℃ to 60 ℃
Forbindelse
Max. 10 Clients (AP mode)
Indgang
1 x DI (“Logic 0”: 0~3V, “Logic 1”: 3.3V~30V)
Input
+9 to 48
Kanaler
2.4GHz 1~11 / 5GHz 36/40/44/48/149/153/157/161/165
Montering
DIN-Rail
Porte

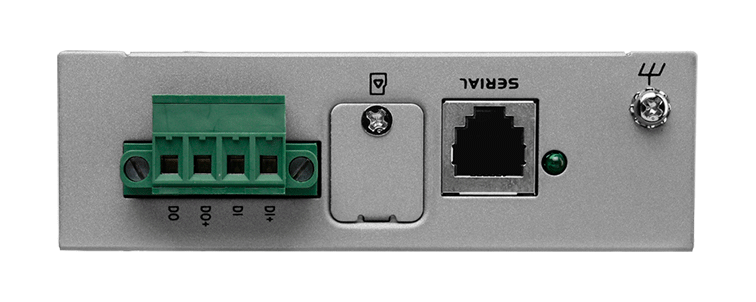

1 x RJ45 / 1 x RJ10
Protokol
WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK
Standarder
IEEE 802.11a/b/g/n/ac
Udgange
1 x DO (Relay Mode, up to 30V / 1A)
WiFi sendeeffekt
2.4GHz 300 Mbps(MIMO 2T2R) / 5GHz 866 Mbps(MIMO 2T2R)

4 other products in the same category:

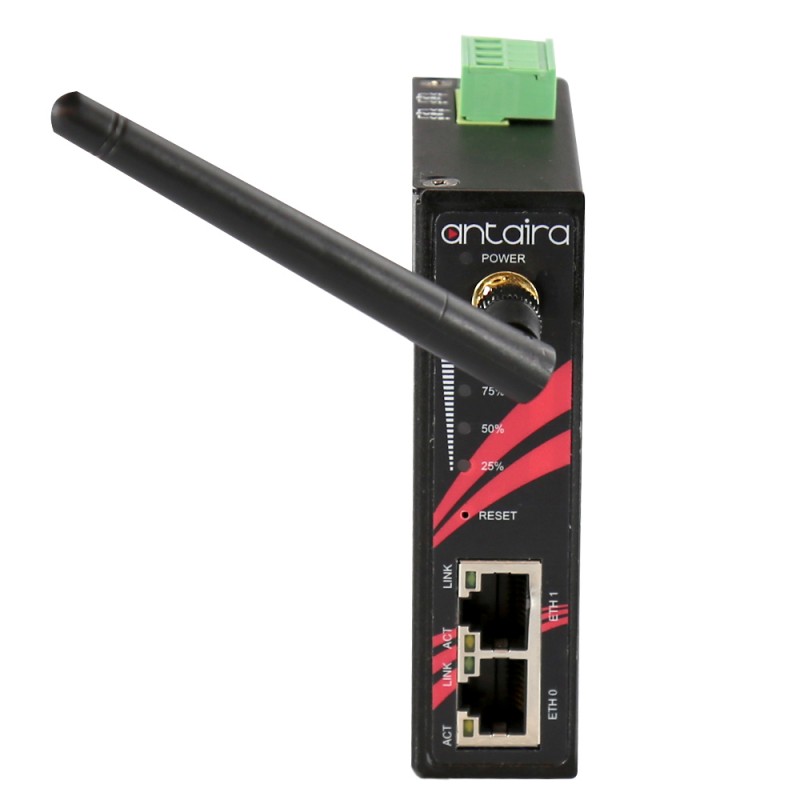

Wireless WiFi Industrial...
