PC ISA with ISA slot, for older OS with ISA slot. DOS6.22, Win CE 5.0 / 6.0, WIN 98, WIN XP pro. Windows 2000 support

PC WINDOWS 2000 XP 98 DOS
PC with ISA slot
Power supply 400Watt
LPT
RS232
256MB RAM
4GB Flash disk

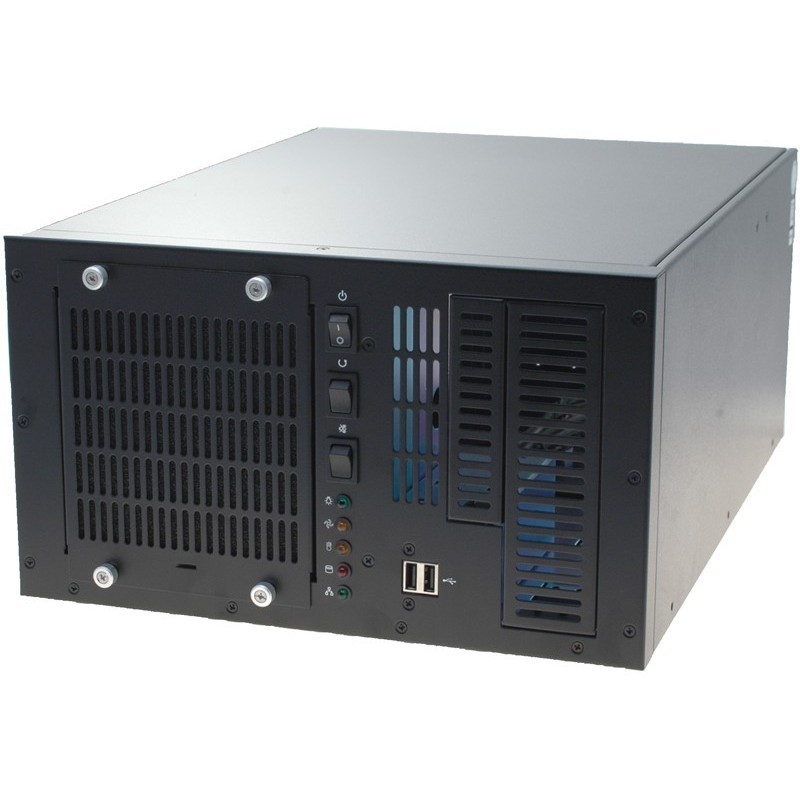

PHOTO IS MODEL!
CAN BE PROVIDED WITH PCI Contact sales!

IPC-ISA
12,430.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Industry PC with 100 ~ 800 MHz CPU and ISA slots.
With VGA and LAN driver for DOS 6.22 Windows CE 5.0, CE 6.0, Windows 98, Windows XP Professional, Windows Embedded Standard (XPE) and Windows 2000

To replace older DOS PCs and where older programs / ISA cards may have I / O issues with newer CPU cards.

Solutions in other enclosures and with several ISA slots can also be delivered. Contact our sales department for more information.

Great experience in relocating older systems to new PCs. Contact sales if you want OS installed.

CPU
DM&P Vortex86DX 800 MHz. Kan neddrosles til 100 MHz
BIOS
AMI BIOS
RAM
Monteret med 256 MB DDR2-RAM onboard. Kan ikke udvides
Netværk
1 x 10/100 Mbit Ethernet med RJ45-stik
Ledige Slots
5 x ISA
OS SUPPORT
Understøtter DOS, Windows 98, WIN 3.11
Driftstemperatur
0°C - 40°C (5-90% ikke-kondenserende)
Watchdog
Watchdog timer m/255 niveauer
Digital I/O
16bit GPIO
Strømforsyning
400watt AT
Grafik
Integreret XGI Volari Z9s 32 MB onboard RAM med DB15HDF VGA-stik. Max. opløsning 1280x1024
Drev-interface
1 x ultraDMA100 ide kanal. 44bens stik til 1 IDE enhed 3½”
Overvågning
System/CPU temperatur og spænding
Mus/tastatur
2 x mini-DIN6 PS/2 via medfølgende Y-splitter kabel
Parallelle porte
1 x SPP/EPP/ECP, bi-direktionel med DB25F-stik
Serielle porte
3 x RS232 med DB9M-stik. 1 x RS232/422/485 med DB9M-stik
Disketteinterface
1 x standard diskettecontroller til 3½”
