KVM Extender / Transmitter - DVI, VGA, USB, LAN

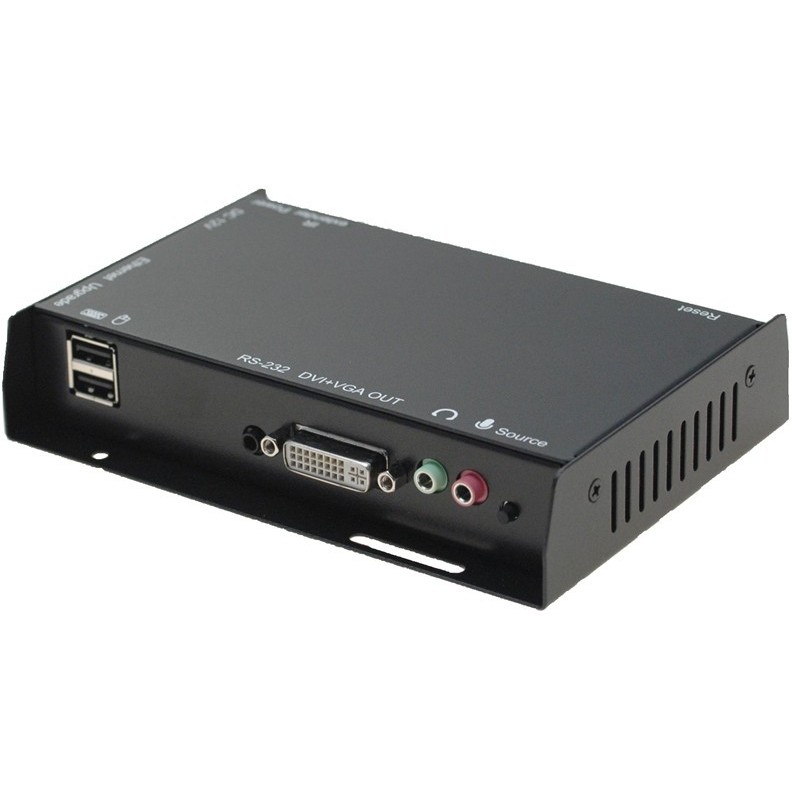

Receiver box: BOOST DVI-VGA UT
KVM Extender over the network CAT5e / 6/7
Transfer VGA or DVI
Resolution up to 1920 x 1080
2 x USB ports
More receivers can be connected to the same transmitter

can be connected via switched network or direct wired

BOOST-DVI-VGA-UR
3,785.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

BOOST-DVI-VGA Ux is a KVM extender (Keyboard Video Mouse), so a PC or server can be operated locally or elsewhere on your network. BOOST-DVI-VGA Ux transmit signals for both 2 x USB and DVI or VGA. More receivers can be paired with a single transmitter

Andet
Overfører ikke skærmens EDID, kan give problemer med skærme der ikke understøtter en opløsning på 1920 x 1080, benyt evt. EDID-GHOST
Billede
1 x DVI-I / VGA output
Dimensioner
35 x 191 x 122 mm
Lyd
2 x 3,5 mm jack (mikrofon og højttaler)
Netværk
1 x RJ45 10/100 Mbps
Opsætning
Transmitter og receiver parres ved hjælp af menu på skærmen
Strømforsyning
12 VDC 2A medfølger
USB
2 x USB A hun
