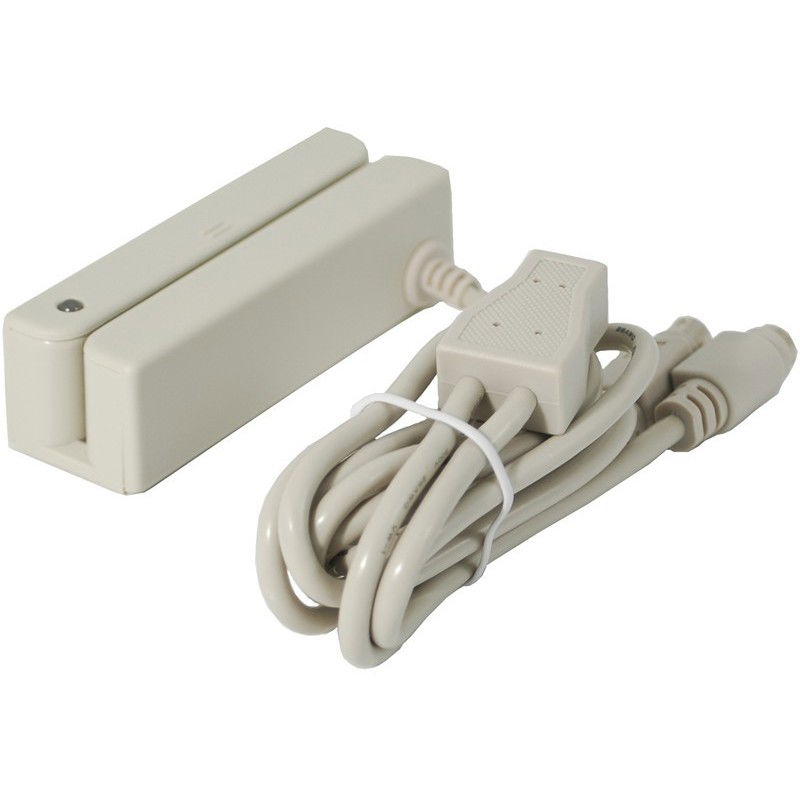

Magnetic card reader with PS2 connection

To track 1, 2 and 3
Connects via PS2 port
Software not required
data will be inserted where the cursor is (HID)
Sound, reading speed, line breaks and æ, ø and å can set
Weight: 200g
Dimensions: 100 x 34 x 28
cable length: 2 meters
supply voltage: 5VDC (from PC)

MCR123
993.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Magnetic card reader for all 3 tracks. Keyboard connection ensures easy installation. Powered by the PS2 keyboard port. 2 screw holes with M3 thread in the bottom ensure easy mounting on the substrate.

Connected in series with the keyboard via the PS2 port.

Software is not required since MCR123 works with all operating systems.

Read data is inserted where the cursor is as if entered (HID)

Many built-in setup options software;

among others. can be set audio, line changes, reading speed, language (including æ, ø and å), Prefix and Suffix

Dimensioner
100 x 34 x 28 mm
Driftstemperatur
-10-55℃
Forsyning
DC+5V ±5% (from PC)
Indikatorer og kontakter
Grøn lysdiode indikerer godkendt læsning og rød betyder fejl
Interface
Keyboard simulator interface (HID)
Kabel
2 meter
Læser
spor 1 (alfanumeriske data), 2 og 3 (numeriske data)
Strømforbrug
120mA
Weight
200g
