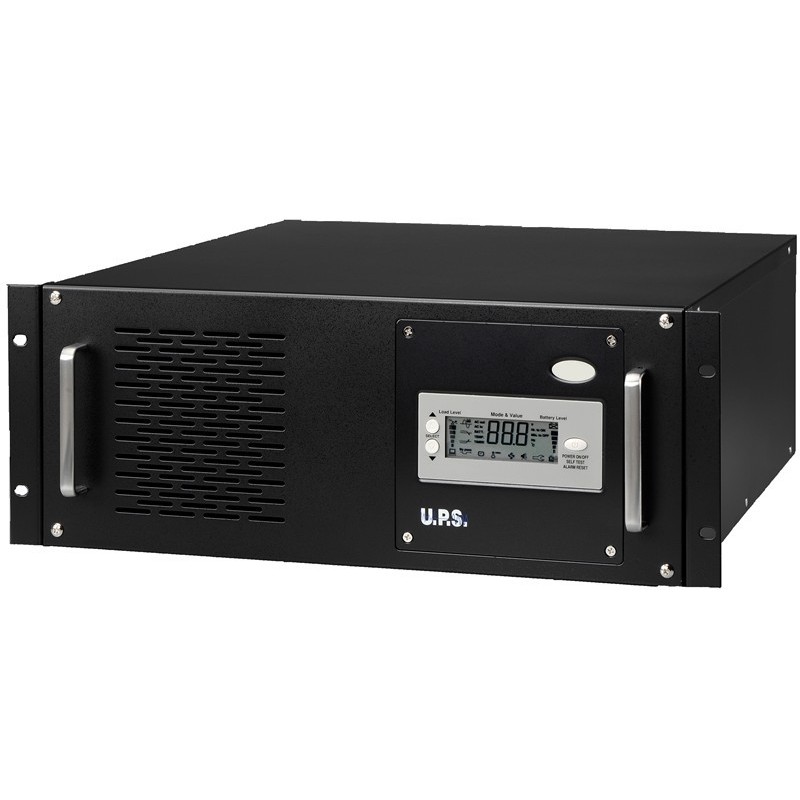

5 kVA / 3.5kW UPS, uninterruptible power supply, 19 "Rack, including 12 pieces. 12V / 7Ah batteries

5000VA / 3500W UPS uninterruptible power supply
4U high 19 "rack mounting
Simulated sine wave
Supports automatic shutdown via software

UPS5000R
7,608.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

UPS for 19 "rack mounting
Emergency power supply with sinus voltage 5000 VA capacity
Less than 3-hour recharge time
Alarm low battery and overvoltage mm | Connector: 10 x IEC ed and 1 x 230VAC input jack
Operating temperature: 0-40 °

Alarm
Bip hvert 3. sekund hvis batteri er aktivt, bip hvert sekund hvis batteriniveau er lavt og kontinuerligt bip ved overspænding
Batteri
12 x 12V 7Ah inkluderet
Beskyttelse
Mod over- og underspændinger, overbelastning og kortslutning
Dimensioner
4 U x 52 cm
Driftstemperatur
0-40 °C
Genopladningstid
mindre end 3 timer (90%)
Kapacitet
5000VA / 3500W
Montering
19” rack
Software
Der medfølger software, der giver information, om ladestatus, ind- og udgangsspændinger, e-mail advarsel, skemalagt test af UPS og meget mere.
Stik
10 x IEC stik til udgang, 1 x AC strømstik og 1 x skrueterminal til indgang
Støj
Under 40 dB (ved 1 meter)
Weight
68 kg
