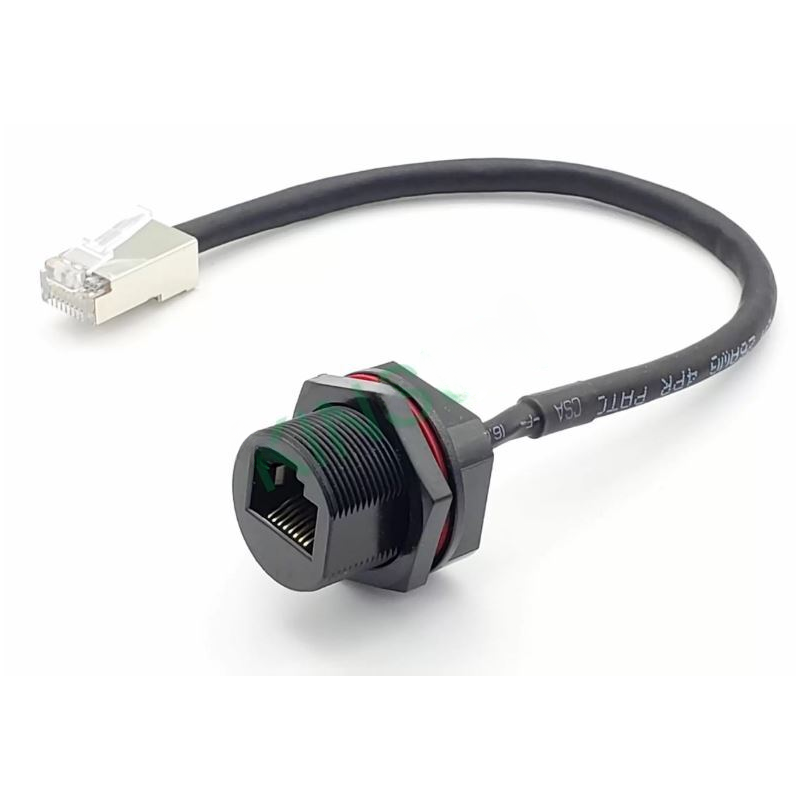

RJ45 waterproof female connector for chassis UTP with 10 cm cable, plastic, 21 mm thread

CAT5e and CAT6 (1000BastT) Ethernet speed
Space and cost saving
IP68 rating
In accordance with IEC/EN 60950-22
Plastic: for anti UV light & UL 94V-0 for low flammability rating
Packing: excellent in tensile strength and extensibility
10 cm (Special cable length can be ordered with volume orders)
Plastic housing: Engineering Thermoplastic, UL 746C (f1 quality)
Contact pins: Phosphor Bronze
Gasket: Silicone, UL50E/UL157 Multiple cable lengths OptionsRJ45 UTP female connector for chassis mounting.
10 cm UTP cable with RJ45 connector
Acquisition waterproof cap for female connector RJ45WP-P
Waterproof back.

RJ45WP-10FM
98.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Waterproof RJ45 Ethernet plug to RJ45 plug cable.
The waterproof RJ45 plug to RJ45 plug cable is suitable for several outdoor applications such as outdoor TV billboards, gateways, video surveillance equipment and fields that can stand in harsh environments. The connector has a small panel cut-out design of Ø21mm, which makes it perfect when it comes to miniaturizing product design.

INQUIRE NOW
There are three pairing options for the waterproof RJ45 Jack. The first is the waterproof hood. The other is the RJ Jack cable gland. The third is the RJ Jack Molding Cable. When connected, the connection system can meet IP68.
The IP68 waterproof RJ45 Jack to RJ45 plug cable can meet CAT5e and CAT6 or up to 1000BaseT network transmission speed. By using the Shielded Gound design, it helps to prevent the EMI effect.

This series of products complies with IEC/EN 60950-22. With UL746C (F1 quality) and UL 94V0, the PC plastic material gives the connectors good properties against UV light and low flammability. In addition, the sealing gasket with UL50E/UL157 is excellent in terms of tensile strength and elongation. To ensure the waterproof IP68 rating, we perform an air seal test for each piece before shipping to customers.

We have a long experience in designing waterproof connectors, we can promise that products are delivered on time to customers with fine quality. If you have any questions about our IP68 waterproof RJ45 Jack to RJ45 plug cable, please feel free to contact us!

Dimensioner
2,5 cm (ydre skive), 2 cm (indre cirkel)
