Module with 16 x digital outputs with Open Collector, RS485 bus. 10 - 30vdc.
RS485 Module with 16 digital outputs
16 x digital outputs, Open Collector
Output load: 30VDC / 100mA per Port
Common gnd
voltage: 10 - 30vdc
Your bracket
7 relay outputs (normally open contact)
Glavanisk isolated outputs
Switching time: ON: 5ms
RS485 bus
DIN bracket
10 - 30VDC / 1.5Watt

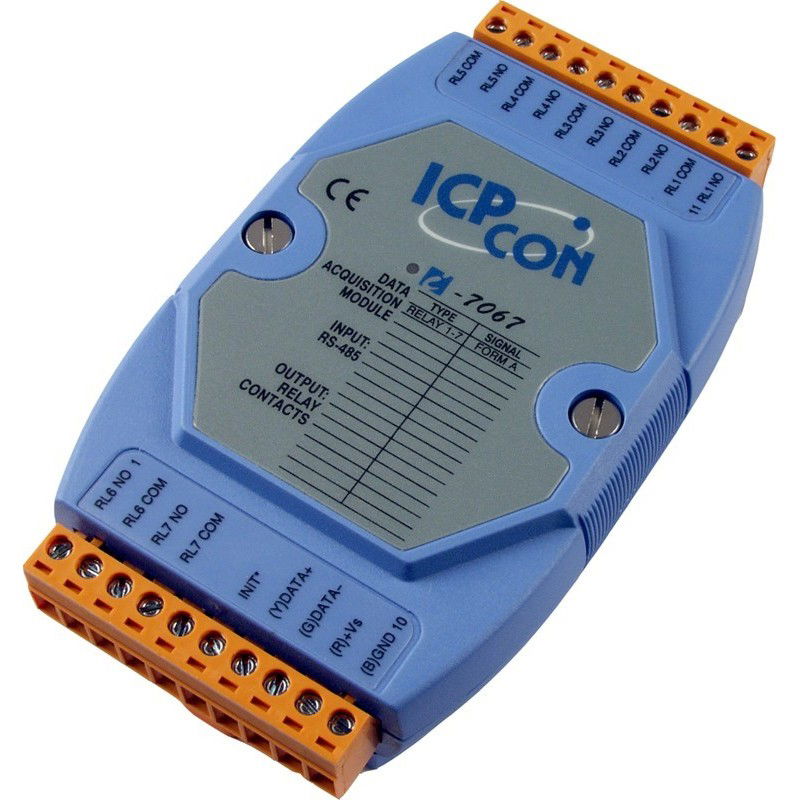

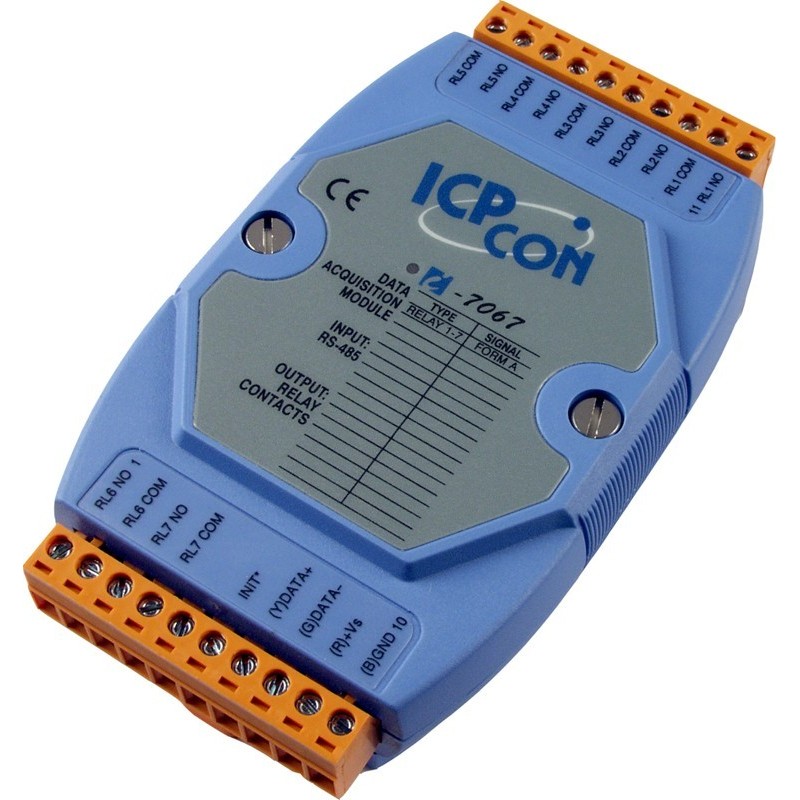

7-channel relay output data acquisition module, which can be communicated via the RS-485
M485-REL7-I is intelligently designed to allow monitoring of the signal processing system and ensure the value options. M485-REL7-I is a cost effective solution for a variety of valuable industrial control signals and systems. DCON utility can help users to configure and test the M485-REL7-In Relay Output module. There are lots of library functions and demo programs that allow users to easily develop programs for Windows, Linux and DOS operating systems. The communication interface is Modbus protocol over RS-485th Users can mount the modules on a DIN rail, a panel or a wall. Modules have a screw terminal to connect to the signals.
RS485 Module with 16 digital outputs
16 x digital outputs, Open Collector
Output load: 30VDC / 100mA per Port
Common gnd
voltage: 10 - 30vdc
Your bracket
8 digital outputs and 4 digital inputs
Open Collector Output
Photocouple Isolation
Digital input channels can be used as 16-bit counters
Configurable Power-on Value settings
Configurable settings for sure value
3750 Vrms insulation voltage
Dual Watchdog
Wide operating temperature range: -25 to + 75 ° C
RS485 module with digital I / O
7 digital input
8 digital output, 30volt / 30mA
RS485 interface
Baudrate 1200 ~ 115200 bps
Dual Watchdog
10 - 30 VDC, 1 W via terminal block
-25- + 75 °
DIN rail mounting
RS485 relay box with the display
4 x relay outputs 2 and connect switch 2
4 x isolated inputs
Supply 10 to 30
RS485 Communication port
16 bit counter
ON Voltage Level: 4 V 30 ~ V
OFF Voltage Level: 0 ~ 1 V V
Insulation Voltage: 3750 Vrms
Input Resistance: 3 kΩ, 0.25 W
Dual Watchdog
