12.1" Panel PC med PCIex udvidelse, i7/i5/i3, Celeron, Pentiom & Xeon support
12.1"
Touch
Barbone
LGA 1155 3 62 Gen. CPU
Max. 16GB RAM
3 x COM
6 x USB
2 x PCIe x8
Processor Intel® Celeron® Processor N3350
Intel® Apollo Lake SoC with integrated chipset
Projective capacitive touch screen
Full Flat Design
Waterproof ON/OFF Button
2 x USB
1 x COM (DB9)
1 x LAN Metallurgy Waterproof Connector
Full System IP65, IPX9K
Addons must be ordered separately: NFC / WiFi / auto dimming / high brightness Solution
System
Processor Intel® Celeron® Processor N3350
System Chipset Intel Apollo Lake SoC integrated
System Memory 1 x 204-pin DDR3L 1866MTs SO-DIMM up to 8 GB
I/O Chip EC ITE IT8528E
Watchdog Timer H/W Reset, 1sec. ~ 65535sec./1sec.step
H/W Status Monitor Monitoring SYSTEM Temperature and Voltage with Auto Throttling Control
SBC EBM-APL
Expansion
Expansion 1 x Mini PCIe
Storage
Storage 1 x 2.5" Drive Bay
Panel
LCD Size 15", 4:3
Display Type XGA
Resolution 1024x768
Pixel pitch 0.297mm(H) x 0.297mm(V)
Luminance 300 cd/m²
Contrast ratio 2000
Viewing angle 88 (U), 88 (D), 88(L), 88 (R)
Response time 16ms
Backlight LED
Touch
Type Projective Capacitive
Touch Light Transmission 87%
Touch Controller Onboard USB touch (EETI)
I/O
USB 2 x USB 2.0
SATA 1 x SATA III
COM Port 1 x RS-232/422/485
Other 1 x WiFi (Optional)
Display
Chipset Intel® Valleyview SoC integrated Graphics
Supports dual display
Resolution HDMI: Max. resolution 3840x2160 @ 30Hz
LVDS: Max. resolution 1920x1080 @ 60Hz
eDP: Max. resolution 4096x2160 @ 60Hz
Audio
Chipset Realtek ALC892
Audio Interface Line-Out
Speaker Output 2 x 5W
Ethernet
Chipset 2 x Intel® I211AT
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 1 x RJ-45
Mechanical Environmental
Power Type AT/ATX (ATX is default setting)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 20% ~ 80% Relative Humidity, Non-condensing
Weight 6.42 Kgs
Mounting
Kit Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
IP
Rating Whole System IPX9K, IP65
Vibration
est With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
System Fan
Fanless

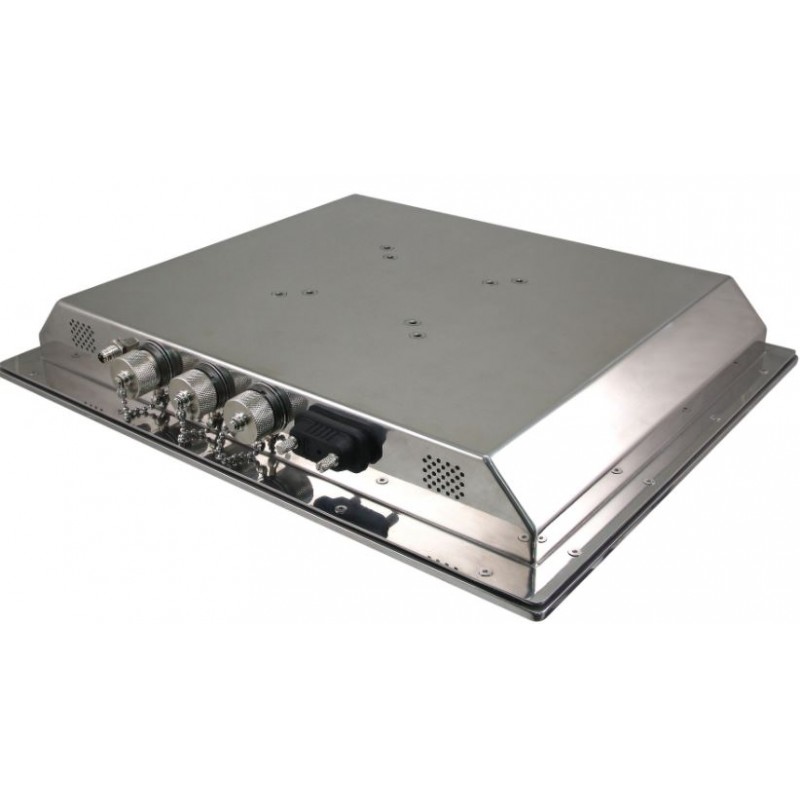

Construction
Front Silver Stainless
Rear Silver Stainless
Dimension
383 x 307 x 52.5 mm
Certifications
Certification Information CE
FCC Class B
Software Support
OS Information Win10
Power Requirement
Power Connector Lockable DC Jack
Power Requirement +12V ~ +26V
Adapter Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W Adapter (24V @ 2.5A Adapter) AC-DC Adapter
12.1"
Touch
Barbone
LGA 1155 3 62 Gen. CPU
Max. 16GB RAM
3 x COM
6 x USB
2 x PCIe x8
Industriel Panel PC 15"
Støvtæt kabinet med IP65 front
Opløsning: 1024 x 768
Resistiv touch
Intel® Core i5-430UM processor 3M cache 1,2 GHz
50W PSU
4GB DDR3 RAM
4 x RS232/485, 5 x USB2.0, 2 x LAN
32GB SSD mSATA
1 x 2.5" SATA, 1 x mSATA, 1 x mPCIE
24” TFT-LCD with Ultra-high Brightness up to 1,500 nits
Reolution 1920 x 1080
Onboard 8th Generation Intel® Core™ U Series Processor
2x DDR4 SO-DIMM Socket, Supports Up to 2400MHz, 64GB
Supports Triple Independent Display
Integrated USB 3.2 Gen 2 supports up to 10Gbps
M.2 E Key Socket for Wireless Module or Intel CRF Module
Supports Ignition Sensing Function (IGN) (with optional CFM module)
Supports 2x PoE+ Function (with optional CFM module)
1x PCI or 1x PCIe Slot for Add-on Card Expansion: Max. Length 180mm including Bracket (with optional riser card)
Wide Range Operating Temperature -20°C to 70°C
Designed with Rugged Aluminum Die-casting Front Bezel
True Flat IP65 Compliant Front Panel Protection
Supports Panel / VESA / Rack Mounting
21.5" TFT 1920x1080
standard 250Nits (on special request 100 or 1500 nits)
PCAB Multi Touch Screen, Support touch with glove/ Rain mode
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) Gen 11.
1 x SO-DIMM DDR4 3200MHz, MAX.32GB
M12 waterproff connectors
2 x Rj45 Intel Ethernet
1 x M.2 2280 NVMe SSD
1 x RS232
1x SATAIII
TPM 2.0
IP67K
VESA: 200x100 M4
Addons: "Optical Bonding", YOKE mount
541x337x56.2mm
10Kg
Stainless Housing SUS 316/ AISI 316
10% to 90% RH, NonCondensing
Working Temperature 0°C to 45°C
12Vdc (M12 Type)
CE, FCC
