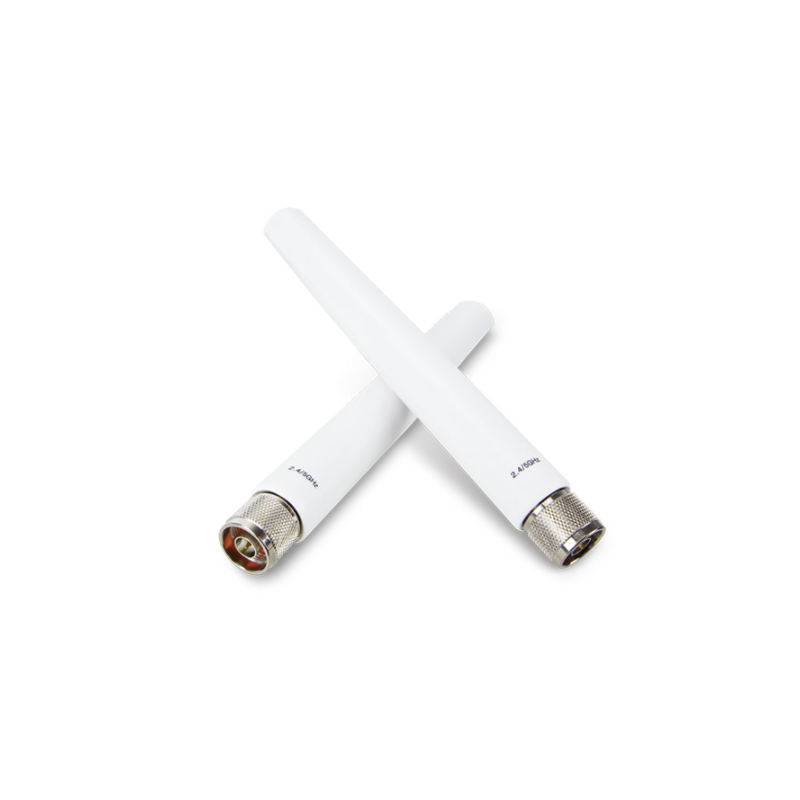

7dBi / 5dBi Wifi Dual-Band Omni antenna - 2.4GHz and 5GHz, N male, hard plastic housing. 1 pc. Length 18 cm

Good for mounting directly on the AP
1 pc. Omnidirectional antenna with N male for outdoor Access Point - dual band
Gain: 4.5 dBi at 2.4 GHz and 7 dBi at 5GHz
Vertical: 2.4GHz 80°, 5GHz 55°
Horizontal: 360°
Hard ABS plastic - white
50 ohms
N type male Brass
Temperature-20 - +65℃
Dimensions: ø 23 x L 180 mm
Weight: 65g

WLAN-OMNI8+
243.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Omni-directional antenna
When mounted vertically, the radiation is almost the same in all directions in the horizontal plane (horizontal dispersion is 360°).
Internally, they consist of a series of vertical dipoles that are in extension of each other. Therefore, they have gain (passive amplification).

When it comes to "point to point" connections, panel or satellite antennas are often the best choice.

Andet
Til inden og udendørs brug
Dimensioner
180x22mm
Driftstemperatur
-30℃ to + 65℃
Gain
4.5dBi for 2.4GHz 7dBi for 5GHz
Indgangsimpedans
50 OHM
Stik
N-Type han
Vertikal spredning
25°
