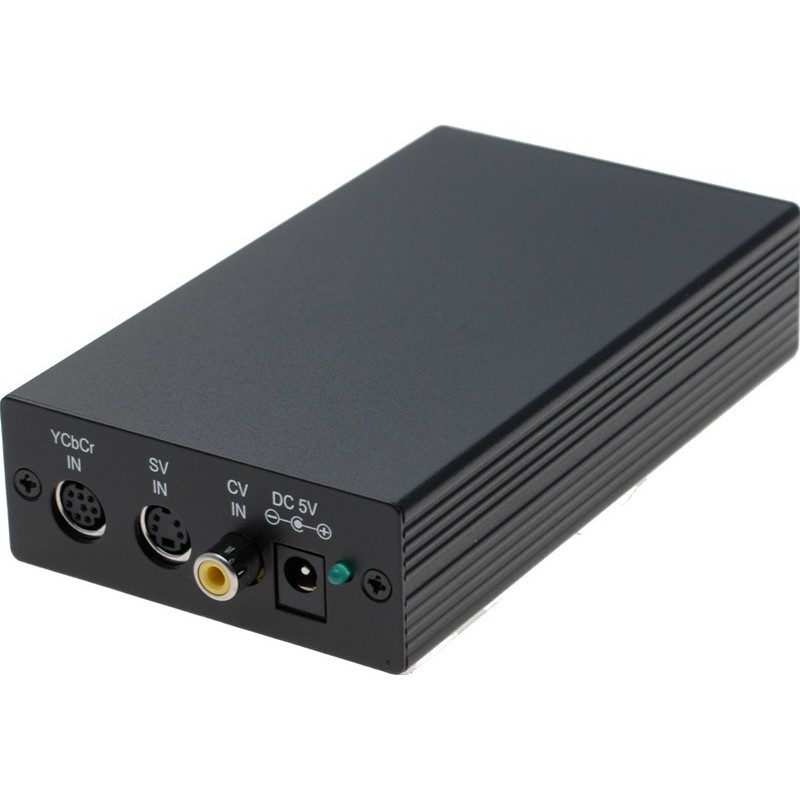

RGsB to VGA converter - V / H synchronization on G
Composite for VGA - RCA / Phono
S-VIDEO for VGA
Component (YCbCr) for VGA
OSD menu on screen
Cable included
Power supply included 5VDC / 2A
Indgangssignaler: Composite VIDEO, S-VIDEO, YCbCr og RGsB (sync på grøn)
Udgangssignaler: VGA (640 x 480 v/50-85Hz), SVGA (800 x 600 v/50-85 Hz), XGA (1024 x 768 v/50-85 Hz), WXGA (1280 x 768 v/50-60 Hz) og SXGA (1280 x 1024 v/50-60 Hz) HDTV: 720 x 480, 720 x 576, 1280 x 720 og 1920 x 1080 v/50 og 60 Hz
Opsætning: Betjenes ved knapper på fronten af enheden, menu valg vises via OSD
Stik: Indgange: S-VIDEO (miniDIN 4 pins), YCbCr og RGsB (miniDIN 8 pins) og RCA/phono til composite VIDEO. Udgange: DB15HD
Forsyning: 5 VDC, 2A, 230 VAC adapter medfølger
Medfølgende kabler: DB15HD (VGA-kabel) med 2 hanstik til skærmtilslutning, YCbCr og RGsB miniDIN 8 pins til 3 x RCA/phono hun, composite VIDEO 2 x RCA/phono han og DB15HD han til 3 x RCA/phono han
Materiale: Metalkabinet lakeret i sort
BNC male to RCA / phono Female Adapter
Composite AV / RCA / S-Video Adapter for HDMI
Upscale for 4K
4K @ 60Hz, 4K @ 30Hz, 1080P @ 60Hz, 720P @ 60Hz.
Automatic PAL and NTSC switch
5VDC / 1A included
Max. 720p / 1080p
Composite (Phono) for HDMI
S-VHS to HDMI
Automatic PAL and NTSC Switching
With Phono Audio Input - Purchase Option. BNCF-PHONOM connector
5VDC / 2A included
CVBS Composite Video and Sound for HDMI Converter
NTCS / PAL Compatible
Switch between Resolution of 720 Pixel and 1080 Pixel - Scalering
3 x Phono (RCA) for 1 x HDMI She
Audio Input With RCA connection (phono)
BNCF-PHONOM canbe usefull
Mini USB - USB cable 0.5m included
Plug Play No driver
HDMI 1.2 Compatible
HDMI output: 1080p @ 60Hz, 720p @ 60Hz
Size: 66 x 55 x 20 mm
Analog video to HDMI converter with video scaler
Composite (CVBS) in
Component (YPbPr) in
VGA in
2 x HDMI in
2 x USB 2.0 for memory stick with media playing files
1 x HDMI out
Resolution of HDMI output: 480i, 720p, 1080p, 4K2K @ 30Hz.
Remote control setup (incl. but excl. CR2032 battery).
Supply voltage: 5VDC / 1A (PSU included)
Can be powered via the USB port (optional cable).
Dimensions: 172 x 130 x 43 mm (W x D x H)
