GSM Controller with 2 x current relay, 2 x Power MOS output, 2 x AI, 4 x DI, 8 x Temp. Bat backup. 230 VAC

2 x 230VAC power relay /16A – resistive load.
2 x DC switched outputs up to 40VDC/6A, also as PWM for LED, FAN, etc.
2 x independent inputs: 230VAC and up to 24VAC/24VDC, SMS alerts for power failure
SIM card and SD card
Backup battery (not included) as an option – Li-Ion 3.7V (14500)
Switch appliances on and off with SMS messages
GPRS M2M function, TCP/IP Get to directly send input status to Server
Get XML status from server to set device outputs.
Scheduled automatic switching on and off of appliances
Sends power failure warning and recovery.
Restarting appliances, such as servers.
Monitoring of 2 x A/D inputs AC/DC voltages with autodetect
4 x digital inputs DIN1, DIN2, DIN3, DIN4 for DC voltage.
Universal bus (1-wire) for temperature and humidity sensors.
Thermostat function.
Alarm function: Temperature alarm, Humidity alarm, A/D limits, DI change
Alarm in case of jamming of a GSM signal.
Up to 12 alarm numbers, each can be set for different events
Up to 1000 authorized users and 2 administrator numbers.
Bluetooth
All inputs are SO compatible

GSM-IO-EN-F+
2,156.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

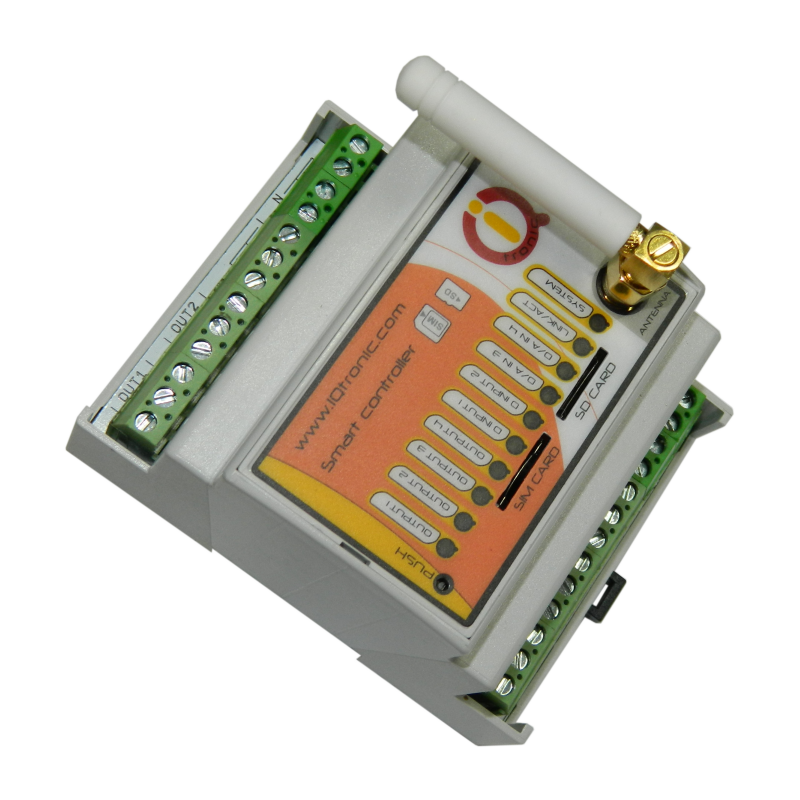

The GSM-IO-EN-F+ is a DIN rail GSM power controller/gateway and is a highly sophisticated GSM smart controller intended to control electrical appliances connected to the device's output power socket. Can send SMS messages and make calls to the device's SIM card number using a mobile phone. The GSM-IO-EN-F+ can also be controlled wirelessly via Bluetooth using the control software terminal. An interactive voice self-service (IVR) is another way to control your device.
Controlled by phone, tablet or computer according to collected information from external sensors. Easily via SMS, phone call or Bluetooth.

M2M as GET or SET XML was added for easy collection and transfer of measured data to the cloud.
