Intel® 12/13 th-Gen Core™ 35W/ 65W LGA1700 CPU up to 16 cores/ 24 threads
4x GbE and 4x USB3.2 Gen 1 with screw-lock
1x hot-swappable HDD tray
1x M.2 2280 Gen4 x4 NVMe
2x full-size mPCIe sockets
4-CH isolated DI and 4-CH isolated DO
VGA + DP
TPM Support
Rugged, -25°C to 60°C fanless operation
212 x 165 x 63 mm low-profile design
1x 3-pin pluggable terminal block for 8-48V DC input with optional ignition power contro

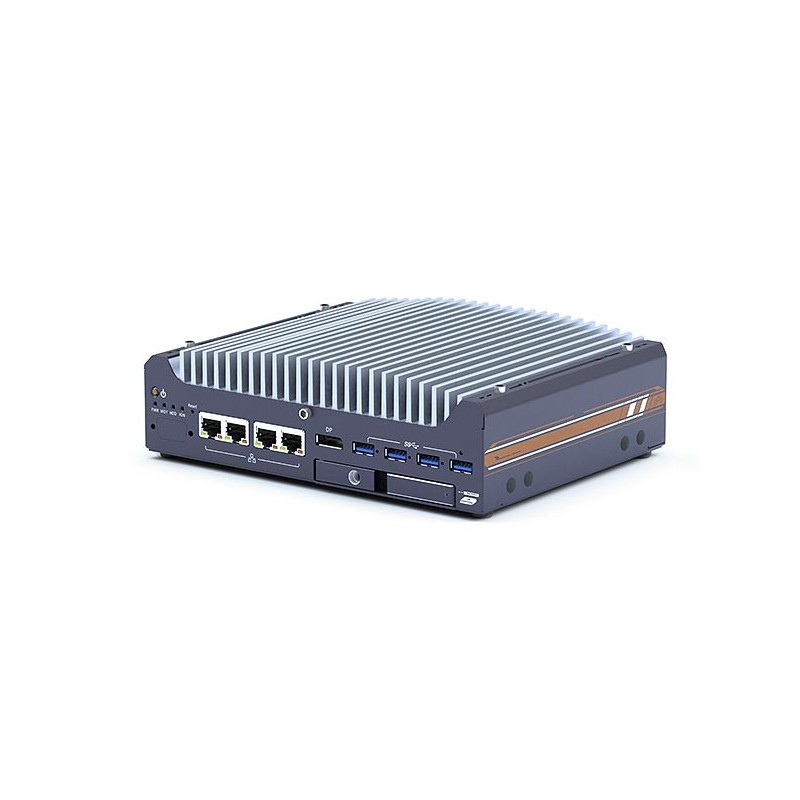

Is one of the most compact fanless embedded computers based on the Intel 12/13th -Gen Alder Lake platform. It measures only 212 x 165 x 63 mm and can fit into limited spaces such as in robotic arms and AMR applications. Despite its compact size, it does not compromise on performance. Built on Intel's 7nm process, Intel 12th generation processors have up to 16 cores/24 threads to deliver up to 1.8x the performance compared to previous Intel 10th or 11th generation platforms. It is a compact fanless embedded computer that can provide the ultimate computer for various industrial applications.
It has rich I/O features. It has four GbE and four USB3.2 Gen 1 ports for multiple camera connections. In addition, it has a Gen4 x4 M.2 NVMe slot for the latest NVMe SSDs, supporting read/write speeds of up to 7000 MB/s. It also has a second hot-swappable HDD tray to hot-swap the storage drive without powering down the system or removing the chassis. There are two mPCIe and one M.2 Key slot to install WiFi or 5G/4G for wireless communication needs. In addition, it is also equipped with 8x DIO, 2x COM ports and dual monitor outputs for your application needs.
Power consumption: With i7-12700 (65W mode): 141.4W (Max) @ 24V With i7-12700 (65W mode): 146.4W (Max) @ 48V With i7-12700TE (35W mode): 106.6W (Max.) @ 24V with i7-12700TE (35W Mode): 111.8W (Max.) @ 48V with i5-12400 (35W Mode): 105.1W (Max.) @ 24V with i5 -12400 (35W mode): 110.9W ( Max) @ 48V with i5-12400 (65W mode): 120.5W (Max) @ 24V with i5-12400 (65W mode): 126.2W ( max) @ 48V
Manual omskifter til 2 x RJ45. NB: Max 10MBit.
32" TFT CCTV LCD MONITOR
High resolution 1920x1080
Vesa mount 200x200mm
Professional design for CCTV 24/7 operation
7 International Language OSD Menu
HDMI input (DVI compatibel)
PIP/PBP function
BNC video looping out
3DNR (3D noise reduction) function
Anti Burn-in function prevent LCD panel from Bunr-In
remote control is not included need to be ordered seperatly
Intel® Atom® x6414RE/x6212RE Processors (formerly Elkhart Lake)
GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
1x M.2 B-Key 3052 support 5G module
Optional 1x 2.5’’ SSD (needs to be ordered)
3x 2.5G Ethernet port
3x full-size Mini PCI-E sockets
4x COM (RS232/422/485)
2x USB 3.1 & 2x USB 2.0
Supports DIN-rail mount, wall mount
TPM 2.0
Extended operating temperature from -20°C to 70°C
9V~36V DC wide-range power input Over/Under/Reverse voltage protection
9"
Resistive ARM/NXP i.MX8MMini 1.6GHz
2GB
RS-232 / RS-485
USB
GLAN
Audio
Mini PCIe
eMMC
microSD
