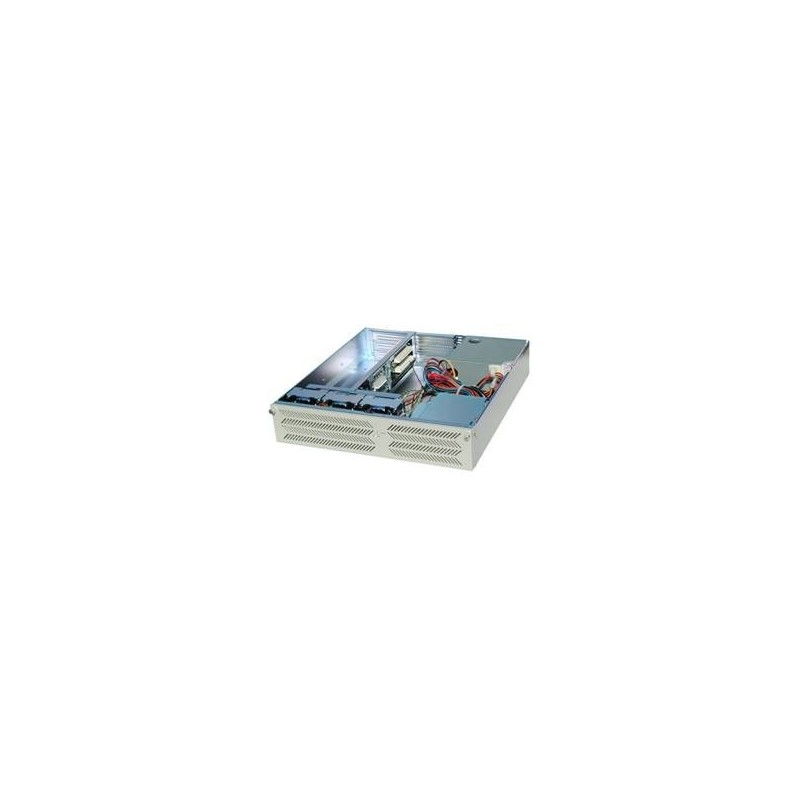

2U IPC med Intel Core 2 Duo

2U PC fuldt bestykket Core 2 Duo system, u/OS.

IPC2U-CUST
15,342.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

19” Industri PC med Intel Core processor.

Med Intel Core 2 Duo, i 2U kabinet.

CPU
Sokkel 775 til Intel Core 2 Duo. Monteret med 3 GHz Core 2 Duo E8400
Chipset
Intel Q45 / ICH10DO
BIOS
4 Mbit Award flash BIOS
Digital I/O
4 indgange og 4 udgange (TTL)
Dimensioner
88 x 427 x 450 mm (H x B x D)
Drev
1 x ATA/66/100/133. 6 x SATA300. 1 x standard diskettecontroller til 3½”
Drev
Monteret med 3½” 250 GB SATA harddisk. Monteret med DVD-RW drev
Driftstemperatur
0°C - 40°C (5-90% ikke-kondenserende)
FSB
800/1066/1333 MHz
Grafik
Integreret Intel GMA4500 med DB15HDF VGA-stik
Hukommelse
2 x 240-pin (dual channel) DDR3-SDRAM. Maks. 8 GB, PC3-6400/8500. Monteret med 2 GB DDR3-RAM
Kabinet
2U kabinet
Ledige Slots
1 x ISA16 bit. 2 x PCI 32 bit
Lyd
ICH10 ACL888 Codec
Netværk
1 x 1000 Mbit Intel 82567 med RJ45-stik. 1 x 1000 Mbit Intel 82574L med RJ45 stik
OS SUPPORT
Understøtter Windows XP, Vista, Windows 7 (ikke Windows 8)
Overvågning
System/CPU temperatur og spænding
Porte
1 x RS232 med DB9M-stik. 1 x RS232/422/485 med DB9M-stik
Porte
1 x SPP/EPP/ECP, bi-direktionel med DB25F-stik
Strømforsyning
PS400ATX, 230VAC
Tastatur/mus
2 x mini-DIN6 PS/2 via Y-splitterkabel
USB
6 x USB 2.0 (Hi-Speed) 2 x ført ud i fronten
Watchdog
Watchdog timer m/255 niveauer
