1 port serial port server, Multi Mode Fiber, RS232 / RS422 / RS485 - Korenix JETPORT 5601F-M

External COM port via Ethernet and Intenet - for fiber cable

Device server with multimode fiber and RS232 / 422/485 port

2,146.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number ETH1SER-UNI2F
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -10 til 70° C

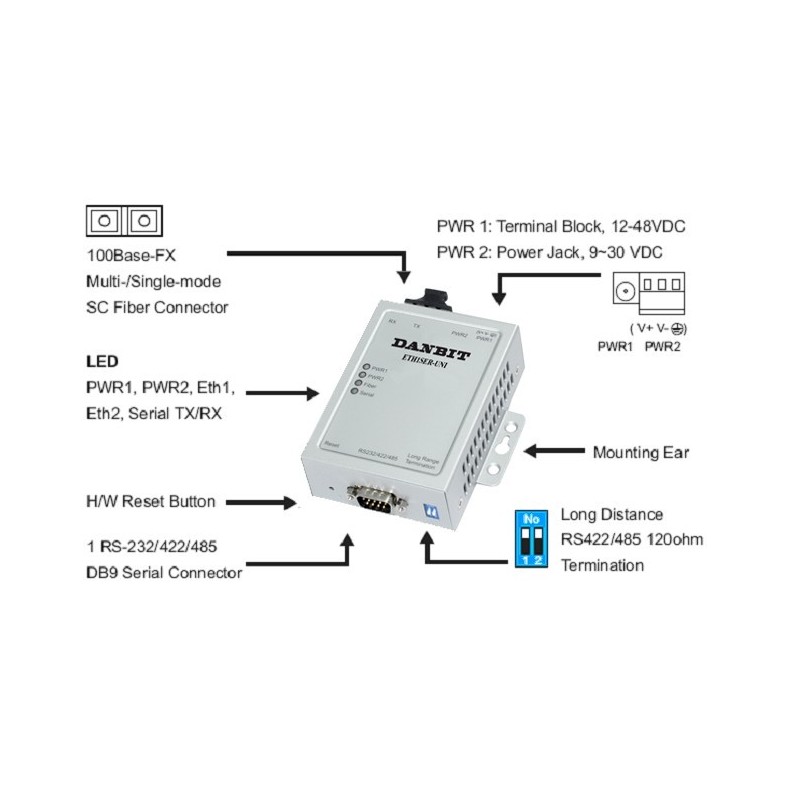

Kabinet Metalkabinet. 30 x 96 x 99 mm. (H x B x D) – m/holder til DIN skinne
Netværk 100Base-FX via duplex SC lyslederkabel. Til multimode fiber – maks. 2 k
Porte 1 x RS232/422/485 port med hastigheder fra 110 bps til 460 Kbps på DB9-stik. Databit: 5/6/7/8, Stopbit: 1/2 Paritet: Lige/Ulige/Ingen. Flowkontrol: RTS/CTS, DTR/DSR, Xon/Xoff
Protokol TCP, UDP, HTTP, HTTPS, Telnet, DHCP, ICMP
Signaler RS232: TxD, RxD, RTS, CTS, DTR, DSR, RI, GND. RS422 og 4-tråds RX485: Rx+, Rx-, Tx+, Tx-, GND. RS485: Data+, Data-, Rx+, GND
Skærm Lysdioder viser Tx/Rx, netværks- og Power-tilstande
Software Windows 2000,XP, 2003 ,Vista, Windows 7 32 bit
Strømforsyning 12 - 48 VDC på skrueterminaler eller 9 - 30 VDC på DC jack (230 V adapter medfølger)

ETH1SER-UNI2F for network connections via optical fiber up to 2 km. For local area and / or internet. Can be set up with a built-in WEB server, telnet and with Windows setup program. Ideal for installations where parts of the network use fiber cable. See our other equipment with fiber interface (network card, switches, media converter, etc.) in the network chapter (chapter 20). Typical applications are in industrial environments where electrical disturbances are critical. With large temperature range. Supplied in metal housing with mounting brackets. Bracket for YOUR rail included
