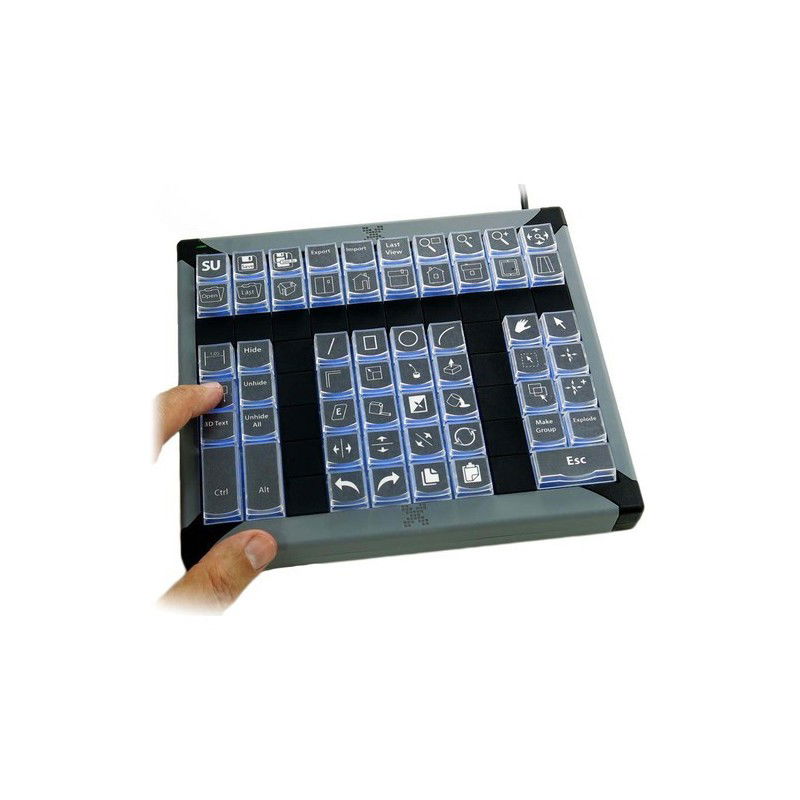

X-Keys 60 Key Programmable Keyboard for KVM Switch, USB, Backlight

USB Programmable Keypad for KVM Control, 60 keys.
USB - HID
Specially designed for controlling KVM switch
Program for button macro: MacroWorks 3.1
Easy and simple programming
Works with all operating systems
Built-in memory with 1000 places
Blue and red addressable backlight
Dimensions: 210 x 184 x 41 mm

KEY-NUM-P60KVM
3,012.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Optimized for controlling a KVM switch, these programmable keys can send any key combination or string of keystrokes, reducing operator error and training time. Anything an operator can do on a keyboard can be replicated and assigned a clearly labeled key. Dedicated keys maximize efficiency and reduce training time.

Note: KVM-X dongles send pure USB HID keyboard codes and are only intended for use with hardware that does not have a traditional operating system behind it (like a KVM). If the X keys connect directly to a Windows, OS X or Linux computer, our standard X key products may be better suited to suit your needs.
Many simplified electronic devices such as KVM switches are not compatible with composite USB devices. The multiple endpoints on a composite USB device can be confusing just like our standard X keys. This version of our firmware emulates the pure USB keyboard to ensure compatibility with such devices.

Specially designed to work with KVM switches
Easy to program and duplicate
No software required for operation
This version of our X-keys XK-60 is configured to work with KVM (Keyboard Video Mouse) switches to control multiple computers from a single workstation. Our free Windows-based programming tool makes it easy to assign keystrokes, key combinations, and strings (with or without modifiers) to clearly labeled, dedicated keys. The X-keys emulate a standard USB keyboard and eliminate problems with most KVM input restrictions.

Programming can be saved as a file and easily copied to multiple X-keys for multi-station installations. Programming includes backlight level and color (blue, red or combination).

Easily customize an input keyboard with professionally printed keys, blockers or molded keycaps.

X Keys Planning PDF

What would you put on an X keys? Test a few layouts with our editable PDF planner. Edit online or download. Open the PDF file, click any key, and type. Print the result at 100% for a full-scale footprint. Download XK-60 Planning Guide here or Landskab's XK-60 Planning Guide here.

Farve
Black
Andet
HID Boot Keyboard
Dimensioner
Driftstemperatur
-20 to 60 C
Forsyning
Power source: USB port, 5 VDC nominal voltage Current draw - NO backlight: 18 mA Blue backlight full: 38 mA Red backlight full: 57 mA All backlights: 75 mA
Features
Programmable
IP-Tæthed
IP 40, typical indoor office environment
LED
Backlighting: blue and red LEDs, individually addressable
OS SUPPORT
Any OS via USB HID Programming: Windows XP through 8, Mac OS X 10.4 through 10.10
Software
MacroWorks 3.1 for Windows (XP or newer)
Stik
Wired USB 2.0 standard “A” plug
Tastatur/mus
60 single keys + programming button
Tilslutning
USB
Weight
283 g
