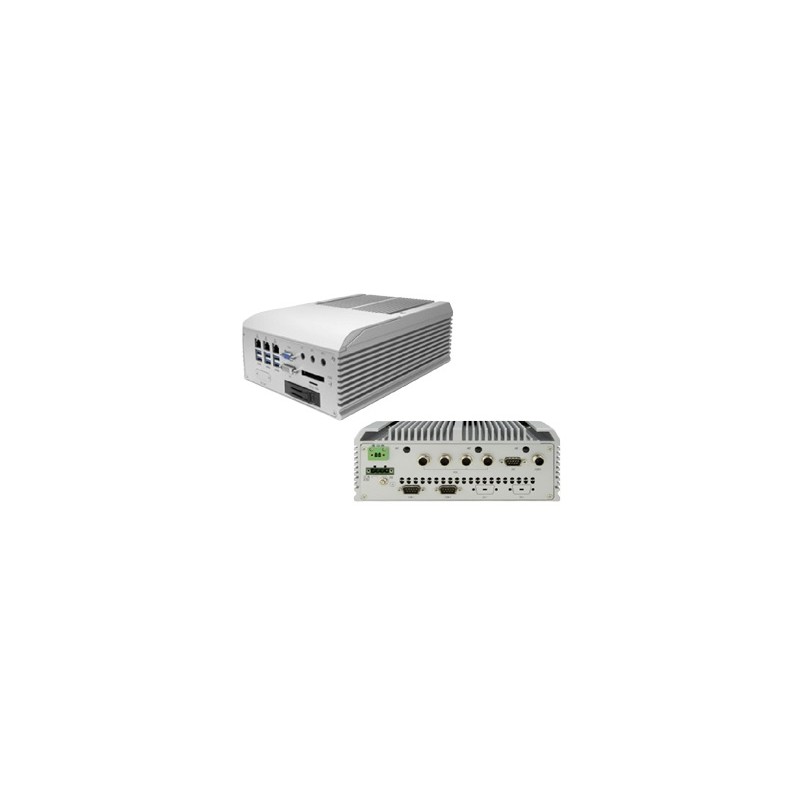

In Vehicle PC is approved for use in the aotomotive industry, with Gen. 6 CPU i3 / i5 / i7 or Xeon processor

Fanless Design

2*RS-232/422/485 and 8-bit isolated DIO
4 x 802.3af Gigabit PoE ports by M12 connectors
RTC Battery service windows Support
3 x mPCIe slots for Optional WiFi/BT/3G/4G/GPS Modules
1 x M.2 (NGFF) B-Key(2242) socket for optional LTE Module
3 x SIM card sockets
2 x reserved DB9 connectors(CN1/2) for optional Serial Ports or CAN BUSWide
ange DC Power Input (9~36V)
Wide temperature range from -40°C to +85°C

IPC-AUTO-F
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

We offer a wide range of Industrial and In-Veivhel PCs. This is one of our newer models bsseret on 6.gen Intel processor.
Can offer customized, so the supply of CPU, RAM SS and OS installed ready for use.

Contact our sales department for further information .

CPU
Intel® Xeon® E3/6th &7th generation Core™i7/i5/i3, processor in LGA1151 socket
Compositions
Aluminum alloy
Chipset
Chipset Intel® C236
Ethernet
1 x Intel® i219LM PCIe controller w/ iAMT 11.0 (except i3) 2 x Intel® WGI211AT GbE controllers 4 x Intel® WGI211IT GbE controllers for PoE
USB
6 x USB 3.0 ports, front side
OS SUPPORT
Windows 10 IOT (For 6th/7th Gen Intel CPU) Windows 7 / Windows 8.1 (For 6th Gen Intel CPU) Linux (Kernal 4.x )
Dimensioner
225(W) x 267 (D) x 90 (H) mm
Tilslutning
3 x RJ-45 ports for GbE, front side 4 x M12-female 8P connector, IP67 for GbE, A-coded, rear side
Watchdog
1~255 levels reset
Strømforbrug
Max. 120W (w/o I/O card)
Montering
Support Wall-mount
Antenne
6 x SMA-female connectors’ holes for external antennas
Digital I/O
8-bit digital I/O, 4-in/4-out w/ 1*DB-9 male connector, 2KV isolated protection, rear side
Arbejdstemperatur
-40 ~ 70°C, ambient w/ air flow, EN50155 ClassTX, w/ 35W TDP CPU (CPU throttling may be happened while it run full loaded, CPU power can be configured under BIOS to achieved higher operating temperature)
Weight
6.5Kg
Grafik
Integrated Intel® HD Graphics
Spændingsforsyning
DC 9~36V input ( w/ 4-pin DV input terminal block,combining remote power on/off switch
SATA-interface
3 x Serial ATA port with 600MB/s HDD transfer rate
Storage
1 x CFast socket, can be outside accessible 1 x external 2.5” SATA3 6Gb/s Drive Bay 1 x internal 2.5” SATA3 6Gb/s Drive Bay
Grafikudgang
1 x DB-15 female connector for Analog RGB, Max. resolution : 1920 x 1080 @ 60Hz 1 x DVI-D female connector for digital video output, Max. resolution : 1920 x 1080 @ 60Hz
Audio
Mic-in/Line-out
System Memory
2 x 260-pin DDR4 SO-DIMM sockets, supporting 400 MHz SDRAM up to 32GB
Approval
CE/FCC Class A, E13 Mark
Chok/Vibration
IEC61373 Category1, Class B
mPCIe
2 x mini-PCI Express Slots interconnected with SIM card sockets for optional WiFi/BT/3G/LTE/GPS (PCIex1+USB2.0, Full Size) 1 x mini-PCI Express slot for optional WiFi/BT/GPS (PCIex1+USB2.0, Half Size)
luftfugtighed ved drift
10 ~ 95% @ 70°C (non-condensing)
M.2
1 x M.2 (NGFF) B-Key(2242) socket interconnected with SIM card socket for optional LTE module
