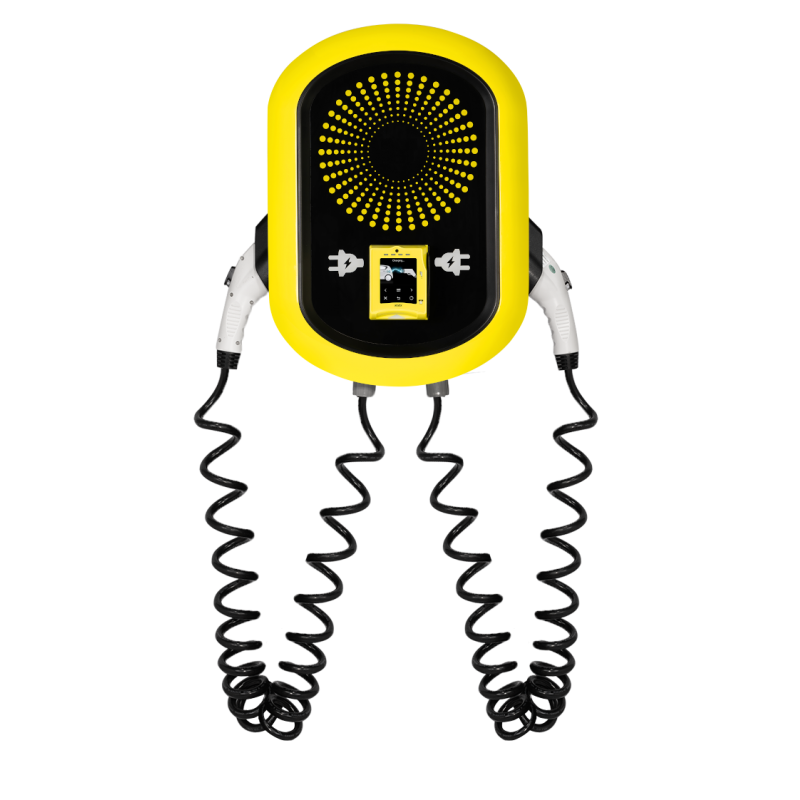

Universal electric car charging stand for all EV vehicles
Allow two electric cars to charge at the same time
Smart design
Dynamic management of charging
Interface protocol: OCPP 1.6
Payment for parking and charging by payment card
Monthly fees apply
AC Input 230-400 VAC +/- 10 (2 or 3 phase)
Total Power output 2 x 22kW / 2 x 32A Max (load sharing)
Payment: Payment card, Google Pay, Apple Pay (option: MobilePay)
Communication: 4G
IP degree: IP55
Operating temperature: -25 C° to 55 C°
Dimensions: 520 x 360 x 260 mm
Charger cable not included. The user uses the cable that comes with their car.
This dual electric car charger with VPOS Touch payment terminal is a good and simple solution for charging electric cars.
Lader accepts almost all payment methods: card payment, Google Pay, Apple Pay, Pre-Paid card, MobilePay, Monyx App and so on...
It has many smart features such as: dynamic charging, different pricing at different times of the day, payment without the use of an App.
Excellent solution for selling your charging and parking at the same time. Can be used in hotels, workplaces, parking lots, etc.
EV plug: Type 1 or 2 according to IEC 62196-2 for 32Amp
Charger cable not included. The user uses the cable that comes with their car.
Farvebånd til 200 kort (til PRINT-ID/PRINT-ID-MAG)
Evolis R3011 color ribbon
125kHz RFID TAG with screw hole
50 mm diameter x 2.5 mm
Suitable for guard rounding as a checkpoint
ASK 64 bits,
Manchester encoding; 10 digits in HEX
With RFID, the code reads Decimal: 12 digits
Fanless
4 x COM (DB9, with power output, +5VDC/+12VDC, selectable by Jumper)
2 x COM (Internal, reserved for VFD Customer Display and MSR)
1 x DB25 Parallel Port
5 x USB 2.0 (External, 4 x bottom/ 1 x side)
RJ-45 Gigabit LAN
VGA
1 x 12VDC (Output) Jack for Customer Display or 2nd Display
1 x RJ-11, +12/+24 VDC (Cash drawer)
+12VDC 60W, 4-pin Connector with Lock
355 x 302 x 204 mm
Dual Band RFID card reader for USB - Decimal/HEX
8-10 characters Decimal/HEX - 32/40bit
125 kHz, 13.56 MHz, NFC
125kHz: EM4001, EM4002, EM4200
Mifare: ISO 1443A/B/15693
HID - keyboard emulation
Reading distance: up to 10 cm
Supplied via USB
USB interface
ID format setting with DIP switches - see diagram
Hard copy form with the product
operating temp. -25° to +70°C
Dimensions: 88 x 56 x 18 mm
