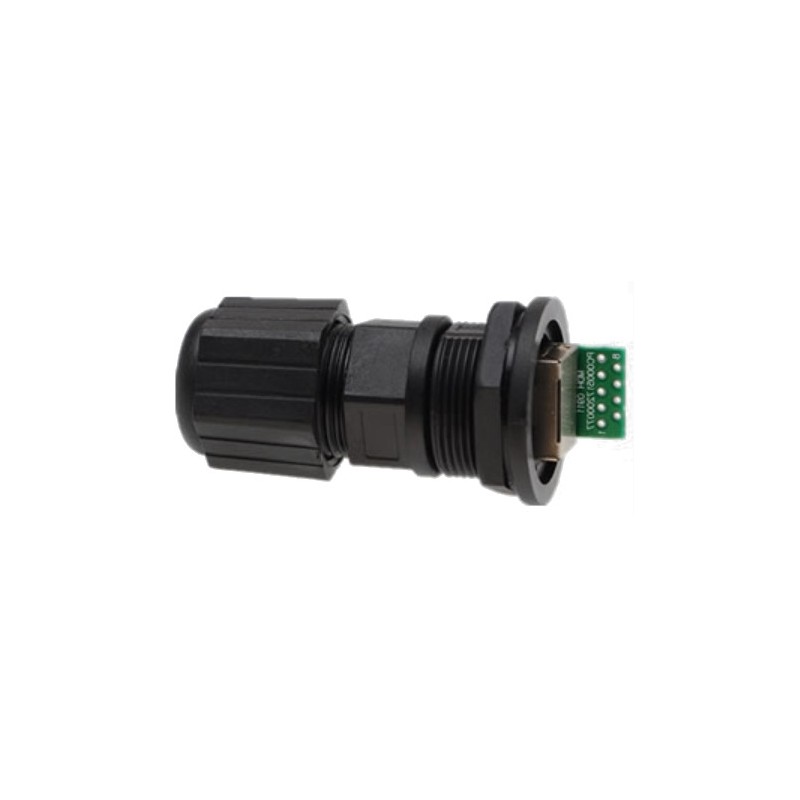

M25 RJ45 - PCB IP67 waterproof connector for panel mounting

Set consisting of chassis and connector part and cap
Plug for cable mounting
Cap to chassis: 3.1 cm (outer disc)
Threaded plug: 3.1 cm (outer disc), 2 cm (inner circle)
Waterproof - IP68 tight
28mm hole in chassis

Outdoor RJ45 coupler
RJ45 cables with bend relief:
It may be necessary to remove about 3mm of bend-relief
cables with extra shackle the trigger must often be removed
Page-wings at the release may have to be removed/minimized.
2 x RJ45 shielded she
IP68 waterproof
8PC8C

IP65 waterproof and dustproof RJ45 connector (Female)
up to 1000V and 1.5A
Push/pull locking system
UL certified
Operating temperature: -40°c~80°c
Certificates: CE, ROHS, CCC, ISO9001: 2008 Standard.
Anti vibration
Dimensions: 71mm x 22.5mm
Diameter: 5.5-7mm
Contact resistance: <30mOhm
Insulation resistance > 500MOhm
Durability: 500 hours
Material: Zinc Alloy

Cable: 26-24 AWG

Waterproof hood with thread and strap
For RJ45WP-10FM
For RJ45WP-20FM
For RJ45WP-60FM
