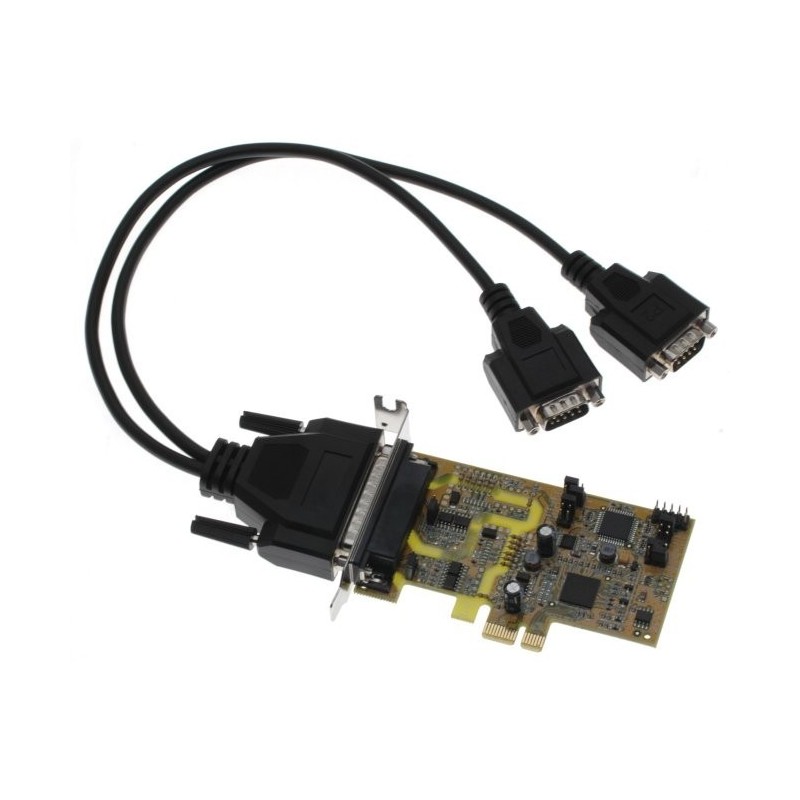

2 x RS422 / 485 serial card PCI express with LP backplate

2 RS422/485 serielle porte til PCI Express

RS485-2PCIE-L
444.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

PCI Express serial card with 2 RS422/485. With a 128-byte FIFO buffer, less CPU-demanding transfer of data is ensured. Both high and low back plate are included

Drivere
Windows 2000, XP, Vista, Win7, Win8 og Linux
FIFO
128 byte FIFO
I/O
Plug & Play
Maks. hastighed
921,6 Kbit/s
PCI
PCI Express (x1). Fungerer i alle PCI Express slot
Porte
2 x RS422/485
Profil
Bagplade til både høj og lav profil medfølger
Stik
2 x DB9 han (blækspruttekabel)
UART
16C950
