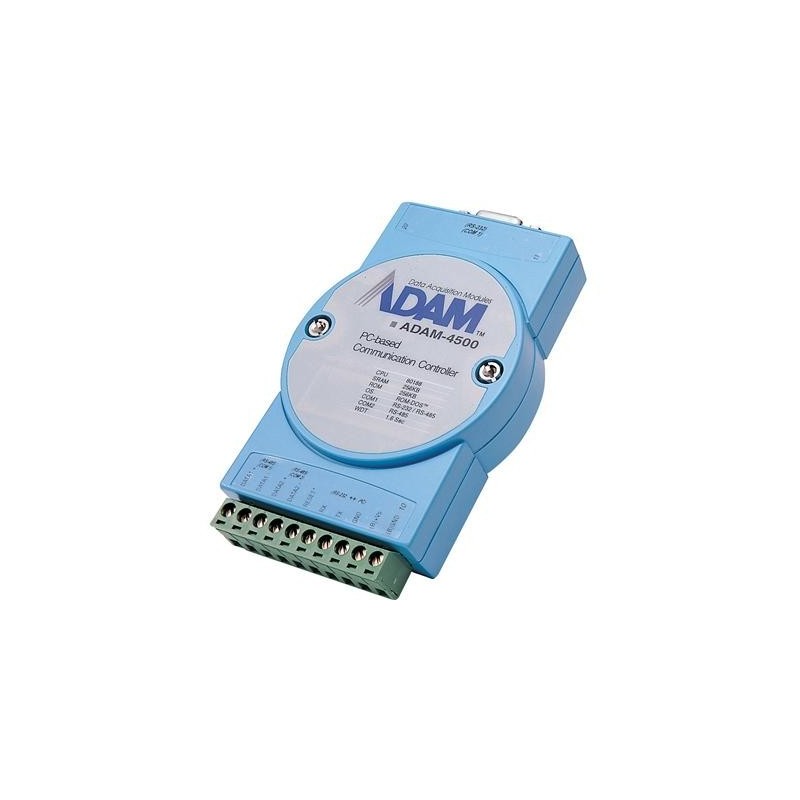

Residual storage: Stand alone PC - Based on Intel 80188 processor, ADAM 4500

The M485 PC can be used as stand-alone PC. It has built-in ROM-DOS that can perform user programs written in C ++ or similar. and compiled to 80188 compatible code. The controller includes a "mini BIOS" that supports basic BIOS call to clock, calendar and serial ports. The file structure is constructed in the same way as on a standard PC with both config.sys and autoexec.bat.

Type: PC with 80188 16bit microprocessor & nbsp; & nbsp; & nbsp; & nbsp; & nbsp ;

Serial Ports: COM1: RS232 / 485, COM2: RS485

Other: Boot ROM-DOS, Flash ROM 256KB , 170KB to use

S-RAM 256KB, 234KB to use

Real time clock, watchdog timer & nbsp; & nbsp;

Software Software for download of application programs

Slot: COM1: DB9 female

         COM2:Screw Terminal

Utilities:  10-30V _{DC , 2W}
