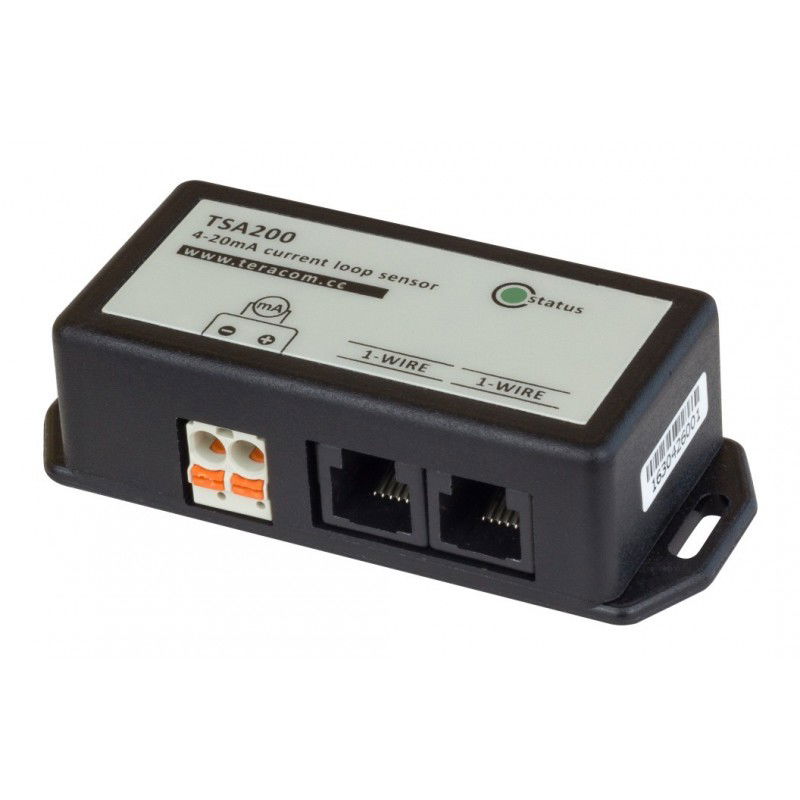

Current transmitter, 0-20mA / 4-20mA, 10 bit resolution, with 1-wire for data collector, 2 x RJ11

0-20mA 4-20mA Transmitter for 1-wire output

2 x RJ11 for daisy chaining

10-bit resolution

0-20mA and 4-20mA, 0.01mA resolution (+/-2%)

Galvanic isolation

IP30 tight

Good long-term stability

Each device has a unique 64 bit serial number

TSA200
1,203.20 SEK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

TSA200 is a 1-wire current loop transmitter with 0-20mA / 4-20mA input range. Current loop input is galvanically isolated from the interface.

The device communicates via a 1-Wire bus. Each sensor has a unique 64-bit serial code. This makes it possible to connect multiple sensors to the same 1-Wire bus.

The 1-wire current transmitter TSA200 has two RJ11 connectors for cascading to the next sensor.

The TSA200 can be connected to almost any industrial sensor with a 0-20/4-20mA output. Output readings in mA can be converted to other units using the offset and multiplier in the controller.

The sensor can be used to measure electrical and non-electrical parameters - liquid levels, air pressure, gas concentration, illumination, acidity (pH), etc.


TSA200 is a passive device, for some sensors an external power supply is needed - typically 12/24/36VDC.


Download technical info from the manufacturer's website:

https://www.teracomsystems.com/sensors/1-wire-current-loop-transmitter-tsa200/
