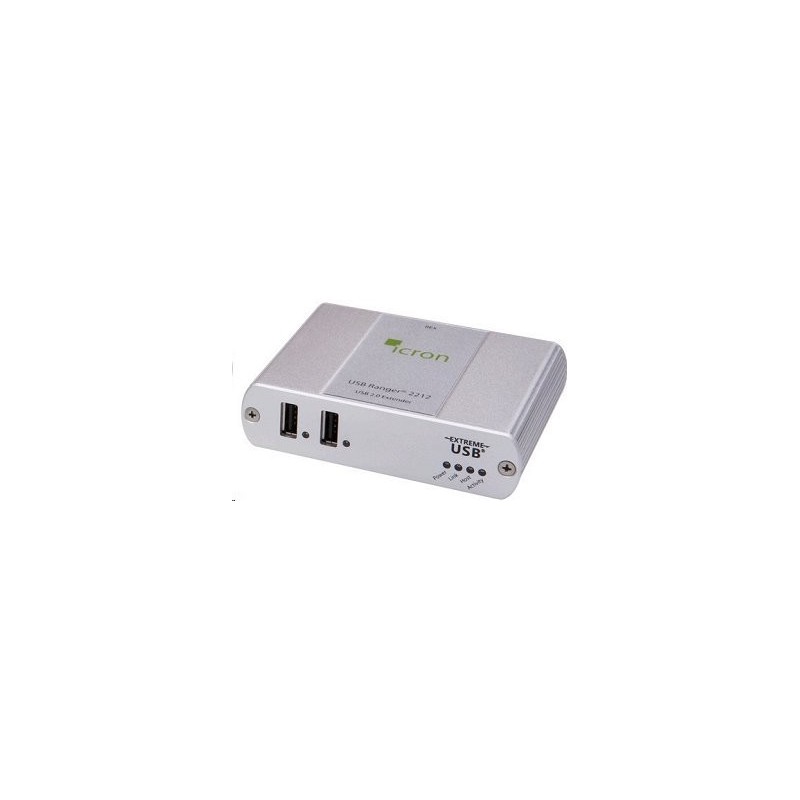

Icron USB Extension - LOCAL and remote unit
Up to 100 meters over UTP / STP
2 x USB port - Version: USB 1.1 and 2.0
24VDC / 1A PSU incl. the remote unit
PSU kan be connected two LOCAL or remote unit
Support up to 11 USB units from 3 USB Hubs
The maximum length of a normal temperature. USB cable is 5 meters but BOOST USB100-2 is an easy option to extend it up to 100 meters between a PC and a USB device. The connection between the transmitter and the receiver is established with a UTP / STP network cable. BOOST USB100-2 functions as a USB hub as remote module provides 2.4 USB ports available. Connection is made easy since no software is required. Multiple USB devices can be connected using hubs
Extension: Up to 100 meters
Extension cable: UTP / STP cable w / RJ45 plug
USB version: USB 1.1 and 2.0
Ports: 2 x USB A female
supply: 24 VDC 1A included
Other: Requires only supply the local module.
Extra ports: up to 11 USB devices can be connected using. up to three hubs
Accessories: USB cable for PC connection included
USB 3.0 Extender / Active Repeater
Integrated IC Chipset
He - She
High Speed 5Gbps
black | 10m
2meter USB cable with USB A male and USB A female connector
Ferrite
AWG28
USB3.0
Gold plated connectors
Black
Icron USB Extension - Local Extender device and Remote Extender device
USB 2.0: Up to 480Mbps
USB 1.1: Up to 12Mbps
1 x USB-B (LEX unit)
1 x RJ45 (LEX unit) to 4 x USB-A (REX device)
1 x RJ45 (REX device)
Dimensions: 100mm x 76mm x 26mm
up to 600mA to each USB port (REX device)
Up to 100 meters above the UTP / STP to 4 x USB - version: USB 1.1 and 2.0
5VDC / 3A PSU (REX device)
Operating temperature: 0 ° C to 50 ° C,
Optisk isoleret USB hub med 4 porte
Beskytter USB-enheder og pc’er mod overspænding
4000 VAC isolation på USB porten til PC’en.
Porte er ESD beskyttet
Egnet til medico miljø
