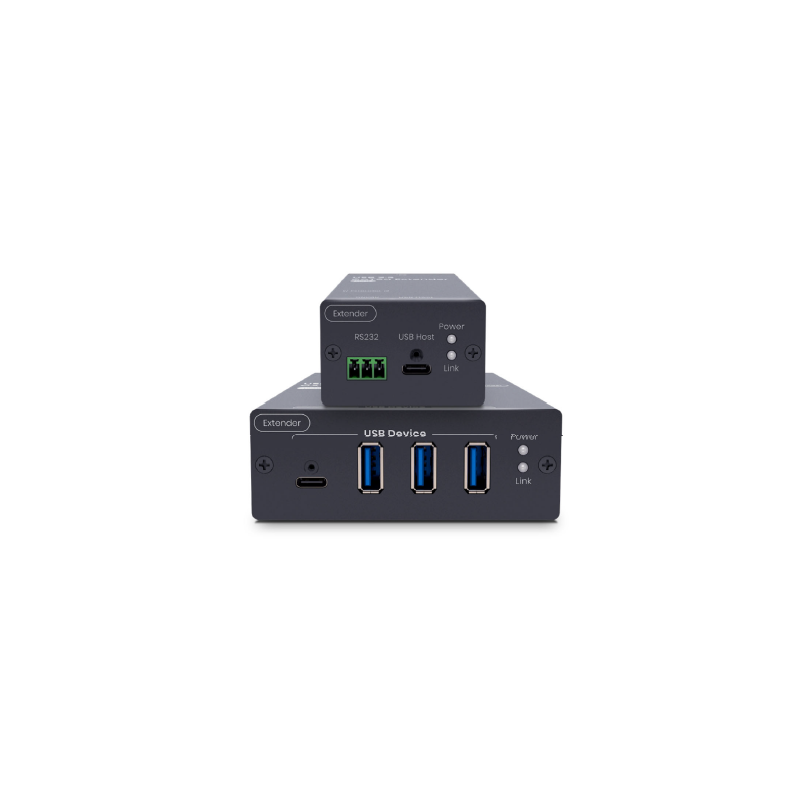

4 Port USB 3.2 Extender up to 100 m above CAT6a / CAT7 network cable. 5Gbps. Optimized for USB cameras, video over USB,

Extremely fast USB extender - ideal for USB cameras and the like.

USB 3.2 Gen 1 extender with data rate up to 5 Gbps
Supports all USB 3.1, 2.0, 1.1 units while full bandwidth
Set of transmitter and receiver with the 4 port hub
4 x USB 3.2 ports Gen 1
Power from the USB port: up to 1.2 A (6 W) per. USB port
2 x 24VDC 1A / 2,7A power supplies included
100/1000 Ethernet channel; LAN through
Single cable, CAT 6a / 7 up to 100 m
Point-to-point connection
Supports all USB transfer types (control, interrupt, isochronous and bulk)
Optimized for camera - and video recording devices

BOOST-USB100-3.2
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

BOOST USB100-3.2 is the latest innovation in ExtremeUSB-C ™ technology. BOOST USB100-3.2 allows simultaneous transmission of USB 3.2 Gen 1, 2.0 and 1.1 protocols across a single link with automatic connection communication between the host and the devices for maximum interoperability and ease of use. BOOST USB100-3.2 specially designed and improved for better performance with USB 3 cameras and video recording devices, and provides support for higher frame rates and resolution than standard products. BOOST USB100-3.2 is easy to install; Plug and Play (no software drivers required) and works with all major operating systems: Windows, MacOS ™, Linux® and Chrome OS ™.

In addition, this ExtremeUSB-C ™ -based USB 3.2 Extender (remove -the expansion) CE class B certified and backward compatible for use with all USB 3.2 and 1 units such as conference cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, touch screens, docking stations, USB video converters and audio devices.

Rev: LO

Driftstemperatur
0 - +50°C
Ethernet
1 x RJ45 100/1000 og 1 x RJ45 Link port
Forsyning
24VDC, 2,7A - stik med skruelås
Hastighed
Maks. USB3.2: 5Gbps, USB2.0: 480Mbps, USB1.1: 12Mbps
Kabinet
Aluminium - Silver anodized
Mål og vægt
232 x 137 x 33 mm, 930g
Porte
4 x USB 3.2 Gen. 1
USB
Op til 2,1A (6W) per USB port
