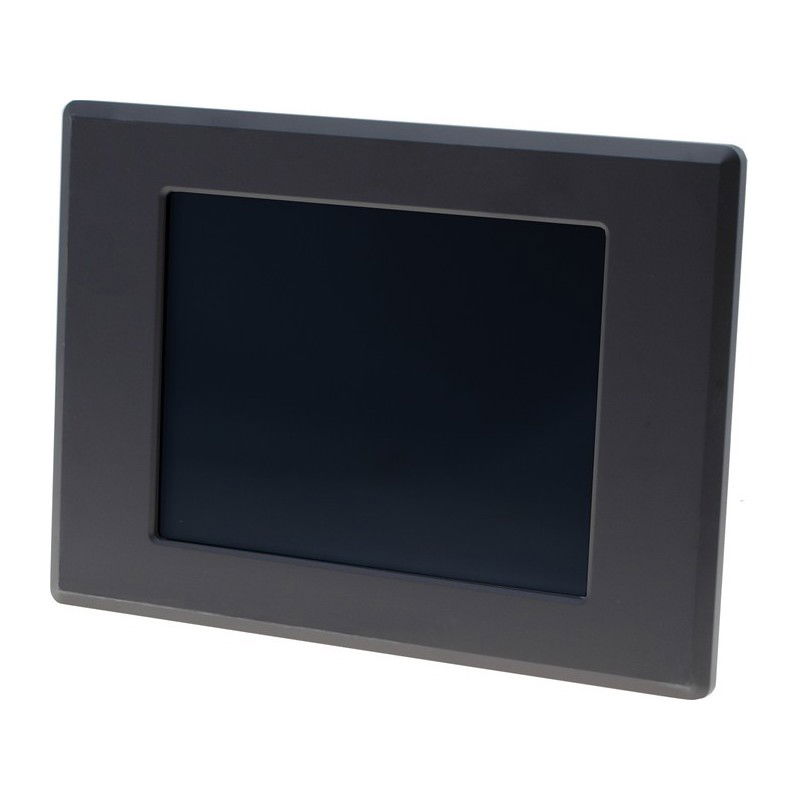

8.4" TFT screen in 4: 3 format
for industrial purposes - Very robust
mounting in panel, on wall or in rack cabinets
VESA 75 mounting holes
Dim - Outline: 264 x 189 x 56 mm
Dim - Cut Out: 220 x 160 mm
Cabinet: Metal
12VDC
MON8.4 "P + is in black metal housing and is intended for industrial use and for panel mounting. You can freely select where the buttons for adjusting the screen are to be placed.
19 "TFT Screen
Touch
Vulnerable
IP65 Closed
Stainless Steel Cabinet
VESA Mount
Waterproof Cables
Waterproof Plug Connector at the Base of the Cabinet.
12VDC, AC Adapter
17 "TFT monitor - stainless steel cabinet
full IP67
Touch
1280 x 1024 - 5:4 format
Brightness 300 cd/m²
VGA, DB15HD
VESA75
450 x 378 x 62 mm (H x W x D)
Weight: 7.5 kg
Supply voltage: 12VDC
230V AC / 12V DC / 1.5A PSU incl.
Special cables with IP67 sealed connectors are included.
17 "waterproof IP66 all around closely monitor steel cabinet
Projected Capacitive Touch (USB)
Resolution 1280 x 1024 to 5: 4 format
350 Nits
1 x VGA M12, 12-pin cable with waterproof jacket
1 x waterproof HDMI with waterproof jacket
1 x buttons on the back
1 x M12 USB touch with waterproof jacket
1 x Power input 9-36V DC, with on / off button on the side
VESA 75 x 75 mounting
Option acquisitions: available with capacitive touch with USB interface
Option acquisitions: available with 316 stainless steel cabinet
