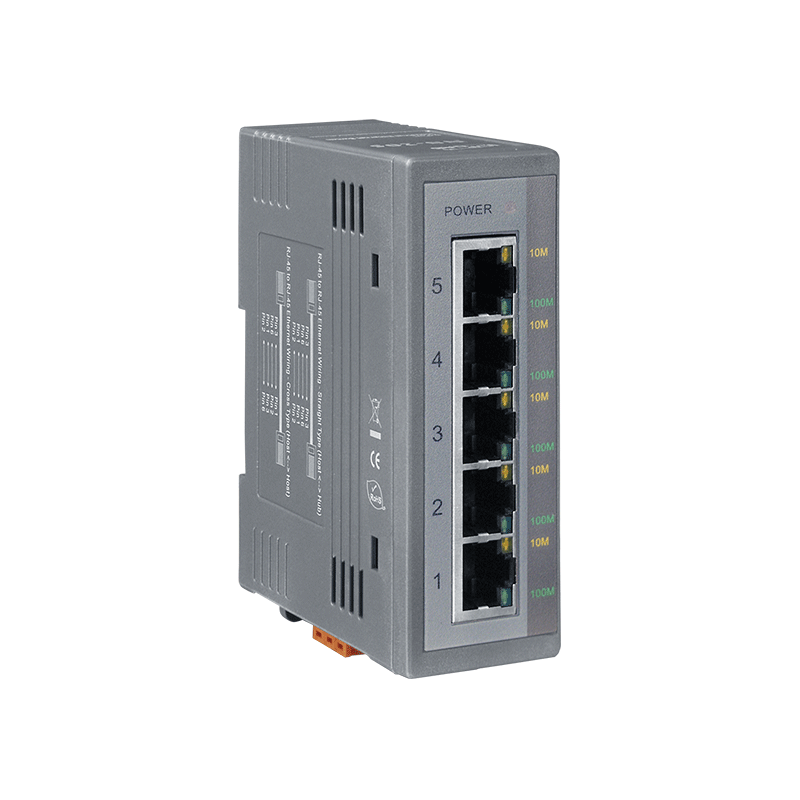

5 port switch 10/100/1000Mbit RJ45 DIN rail - Unmanaged, -40 - +70°C, 10-30VDC

Unmanaged 5 port Ethernet switch
5 x 10/100/1000Mbit, RJ45
Operating temperature: -40 - +70 °C
10 - 30VDC

ESW5+D
1,700.00 NOK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

5-port 10/100 Mbit Ethernet industrial switch.

With RJ45 connector and for DIN rail.

Dimensioner
33 mm x 78 mm x 107 mm
Forsyning
Forsynes med 10 – 30 VDC 1,5 W
Indikatorer og kontakter
On/off, link og aktivitet
Miljø
Driftstemperatur -40 til +70° C
Montering
DIN-skinne
Porte
5 x RJ45 porte, 10/100 Mbit, automatisk detektering af lige/krydset kabel
