AC / DC power supply for DIN mounting.
Input 115-230VAC
output 24VDC 5A (120W)
Adjustable from 22 to 27vdc
Screw terminals
Dimensions: 55 x 110 x 105mm
Operating temperature: -25 ° C - + 70 ° C

AC / DC power supply for DIN installation.
Input 115-230Vac
Output 12VDC 6A (72W)
Adjustable from 10 to 15.5VDC
Screw terminals
Goal: 50 x 120 X 50mm
Operating temperature: -25°C - +70°C

12 volt linear power 3.6Watt
minus on center hole
3.5mm / 1.2mm Power Jack connector
Net adapter type
1.8 meter cable

SFX PSU to ATX(PS2) mounting holes
Designed for use in most ATX or Micro-ATX cases
150mm (L) x10mm (H) x 86mm (W)
5.91" (L) x 0.39" (H) x 3.39" (W)
0.8mm

Output 24VDC at 42A (1000W)
Input 90VAC - 305VAC
Input-output by terminal block
Remote ON/OFF and DC OK signal
Dimensions 140x41x290mm

Input voltage 95-265VAC
Manual Select voltage: 5V / 7.5V / 9V / 12V
Adapters for 3.5 x 1.35mm, 4.8 x 1.7mm, 5.5 x 2.5mm
Main DC connector 5.5 x 2.1mm
Digital with Microprocessor Control
Battery Level, Battery Life Led Indicator
Over Discharge, Overload, Short Circuit Protection,
Over Charge, Surge Protection

Net adapter with mini UPS 12W, 2,1A
Connection to 5.5 x 2.1mm
Entrance 95-265 VAC
Exit 12VDC 1A 12W
3.7V Lithium-Ion 18650 type Battery (2600mAh)
short circuit protection
Backup time: 6W is less than 30min
Backup time: 12W is less than 10 min
dimensions 87 x 59.8 x 29 mm

AC / DC power supply for your rail mounting
AC Input: 85 - 264Vac
Effect: 60W
Output voltage: 24V / 2.5A
Screw terminal
Adjustable output voltage for 24 to 29V
Working temperature: -30 - + 70 ° C
Dimensions: 90 x 54.5 x 62.5 mm (H, D, B)

AC / DC power supply for your rail mounting
AC Input: 180 - 500VAC
Effect: 60W
Output voltage: 48V / 1.25A
Screw terminal
Adjustable output voltage for 48 to 57VDC
Working temperature: -30 - + 85 ° C
target: 125 x 102 x 32 mm (H, D, B)

AC / DC power supply for your rail Mounting
AC Input: 180 - 500VAC
Effect: 60W
Output voltage: 12V / 5A
Screw terminal
Adjustable output voltage for 10.8 to 13.2v
Working temperature: -30 - + 85 ° C
target: 125 x 102 x 32 mm (H, D, B)

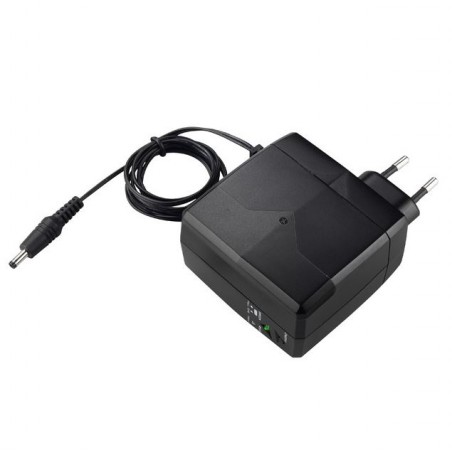

Mini UPS 12VDC, 25Watt
Battery Capacity 2600mAh
DC Male Jack, OD 4MM, ID 1.7mm
Dimensions: 68mm x 42mm x 74mm
Weight: 280g

Input voltage 85-264VAC, 120-370VDC
Output voltage 12VDC
Output current 2A
DIN rail mounted
Operating temperature -30 ° C to + 70 ° C
Dimensions 90mm x 35mm x 54 5mm
RoHS, TUV EN 60950-1, UL 508

Mini redundant power supply with 700W output
80 Plus gold efficiency
Low ripple and noise
OCP, OVP, OTP, FFP and short circuit protection
Interchangeable modular design
Internal 4cm fan, ambient temperature (50℃)
MTBF > 100K hours at 25℃
100% Hi-pot tested Line input fuse protection
In accordance with EN62368
PS2 form factor 150 * 86 * 190mm (W * H * L)

Power supply 24VDC, 500mA
Max. power: 12Watt
1.5meter cable with ferrite core filtering
3.5 / 1.3mm power jack connector.

MAX 12V 0.7A (8.4 Watts)
USB to 2.1x5.5 mm plug
To supply 12V/0.7A, the 5V input must be a minimum of 2A
A PC USB2.0 port provides max. 5V/0.5A (2.5 Watt)
A PC USB3.0 port provides max. 5V/0.9A (4.5 Watt)
Laptop is typically 5V/0.2A (1 Watt)
For power consumption above what a USB port can supply - use an external 5V power supply
The power is dependent on the 5V supply (P=V*A) (Power=Voltage * amps)
1 meter cable

Top Class 3-phase 30.000VA / 30.000Watt Online UPS / back-up power
Input: 3 x 305 - 478VAC 50 / 60Hz
Output voltage: 3 x 380 - 415VAC 50Hz or 60Hz
backup time by 2 x extra Battery Bank: up to 30min at 50% load
LCD Display
three-phase
True sine wave - noiseless output voltage
Tower with Tower Battery Pack
Dimensions: 1000 x 815 x 300 mm
Weight: 225 kg

Professional ON-LINE UPS. Life-critical equipment, Serverrum etc.
UPS is separate battery boxes with Hot-swappable battery design
Double-conversion UPS with noiseless output voltage
Select if the UPS should be installed in the rack or stand as Tower
Nominal input voltage: 200 - 240VAC at 100% load
Voltage range: 110 - 300VAC at 50% load
Output voltage: 200 - 240VAC (230VAC 50Hz)
On-line means that battery backup is always connected - no power switching
Each battery box contains 20 pieces. 9Ah batteries - must be purchased
Intelligent UPS with power management, communications ports, display and alarms
Dimensions: UPS and battery box: 606 x 438 x 133 mm (3U)
Noise level: Less than 58 dbA @ 1 m

UPS with DIN bracket for control panel, electrical cabinets, rack cabinet like.

Compact all-in-one to the DIN rail UPS 500VA / 300watt
Output voltage: 230VAC / 50Hz - genuine sine wave
Line-interactive means switching at power failure (2-6ms)
Nødforsynings time: 50% load for about 12 minutes
Noise level: Less than 40 dbA at 1 meter
output voltage is sine wave
4-6 hour recharge time to 90% capacity
Auto restart on mains supply restored
Battery: 1 pc. 12V / 7Ah - see manual for life
Dimensions: 250 x 135 x 115 mm | Weight with battery: 2.8 kg
Operating temperature: 0 - + 40 ° C

For flat fuses
12Vdc
splash proof hood prevent water ingress
Cable diameter 5mm
Cable total length 24CM
Delivered without fuse
MAX. 30A

To prevent loss of data during power failure
Compact Tower UPS 1000VA / 600Watt
Output voltage: 230VAC / 50Hz
Line-interactive means switching at power failure (2-6ms)
Battery time: 25% load for about 18 minutes
Noise level: Less than 40 dbA at 1 meter
Modified sine wave (staircase curve)
4-6 hour recharge time to 90% capacity
Auto restart on mains supply restored
Supports automatic shutdown via software download USB and RJ45 port, touch display
Battery: 2 pcs. 12V / 7Ah - see manual for life
Not suitable for printers and scanners
Dimensions: 320 x 182 x 130 mm
Weight with battery: 8.2 kg
Operating temperature: 0 - + 40 ° C
