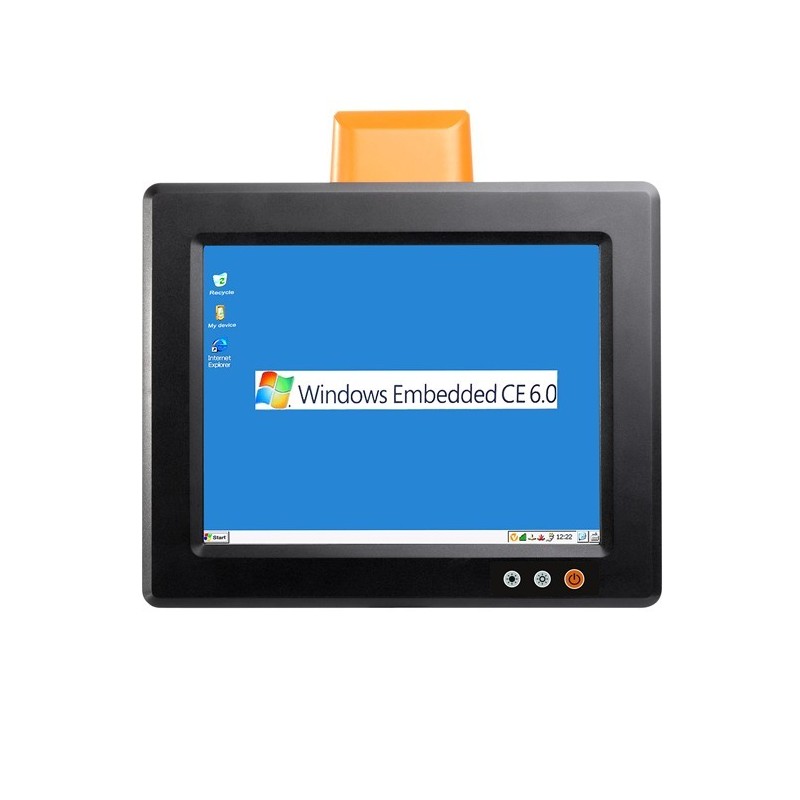

Panel pc bil 10" touchskærm CE

PC til bil med 10” lysstærk skærm, med touch

IPC-AUTO-T10CE
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Panel PC til bil.

Automotive panel pc.

Læsbar i sollys.

Understøtter Windows CE 6.0.

CPU
Ti OMAP3530 Cortex A8 600 MHz CPU
Chipset
OpenGLES 1.1 og 2.0, OpenVG1.0
BIOS
TMS320C64x+ DSP Core
Antenne
Orange cap antenne (Monteret foroven)
Betjening
Power tænd/sluk (tryk 1 sek. for at boote eller tryk 3 sek. for at slukke modulet). Lysstyrke justering
Driftstemperatur
-20°C - 60°C
IP tæthed
IP65
Lager
2GB Flash ROM
Ledige Slots
1 x SD/MMC port (max 16 GB)
Lyd
2 x højttaler
Materiale
Aluminiums kabinet
Montering
VESA montering. VESA til bil montering
Netværk
1 x RJ45. 10/100 Mbit. Med mulighed for WLAN: 802.11a/b/g/n og SIRF-III GPS
OS SUPPORT
Understøtter Windows CE 6.0
RAM
Monteret med 256 DRAM
Serieporte
1 x RS232 (COM4) fuld port. 1 x RS232 (COM3) 4 tråde
Skærm
10.4” FTF LCD. 800 x 480. 600:1. Leveres med touch (Touch er resistiv type)
Strømforsyning
1 x DC indgang, 8~36 VDC DC-DC adapter (9-58 VDC indgang, 24 VDC udgang), DC-DC adapter (18-68 VDC indgang, 24 VDC udgang), AC-DC adapter (100-240 VDC indgang, 12 VDC udgang)
USB
2 x USB 2.0. 1 x USB 2.0 OTG
VGA
SVGA 800 x 480
Weight
2 kg
