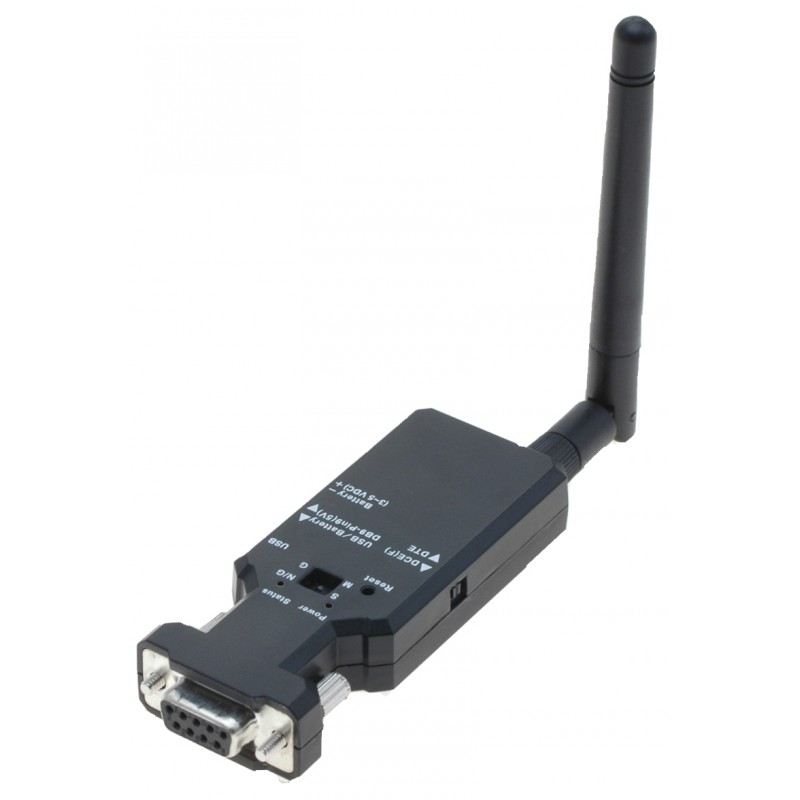

Wireless RS485 / 422 connection via Bluetooth up to 50meter. Detachable antenna. -40 - + 85 ° C, 5 - 40VDC

Range up to 50 meters in line of sight
point to point, multipoint
signal: RX +, RX (TX +, TX-), GND
connectors: DB9 female
Bluetooth version 2.0 + EDR
Frequency: 2.400 to 2.4835 GHz
Tx power: Max. 4dBm
Rx sensitivity: -96 dBm
Antenna: Rubber SMA female - external - 2dBi
Supply voltage: 5 to 40VDC, max. 17mA
Operating temperature: -40 to + 85 ° C
Dimensions: 87 mm x 34 mm x 18 mm. Antenna: 11 cm

BLUETOOTH-RS485
508.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

RS485 / RS4222 communication via Bluetooth 2.0. Wireless transmission of data between serial ports - up to 50 meters
BLUETOOTH-RS485 is a transmitter / receiver via Bluetooth.
Can also be used in couples where two adapters to the serial RS485 / RS422 port. The couple creates, operating system, transparent connection via a Bluetooth radio signal. The range is up to 50 meters with the supplied antennas.
1 adapter with DB9 female connector.
Bluetooth ver. 2.0 + EDR, Class 1, 79 channels.
Serial Kommunication: 2400 bps - 230,400 bps

Specifications:
Coverage: Up to 50 m
third Connection: Point-to-point (pico networks)
fourth Signal: TxD, RxD, GND, CTS / RTS
fifth RS-232 Interface: D_SUB 9-pin female
6th Standard: Bluetooth specification version 2.0 + EDR
7th Profiles: Serial Port Profile
8th Data Bit: 8 bits
9th Frequency: 2400 two 2.4835 GHz
10th Hopping: 1600 / sec, 1MHz channel space
11th Modulation: GFSK-1 Mbps, 2 Mbps DQPSK, and 8-DPSK-3 Mbps
12th Tx. Power: Max. 18 dBm (Class 1)
13th Rx. Sensitivity: -86 dBm typical
14th Antenna: Chip antenna or SMA female + external antenna
15th Antenna Gain: Chip antenna max. 1 to 2 dBi
16th Power Supply: +5 two +6 V DC
17th Current Consumption: Max. 90 mA
18th Operation Temperature: -20 to +75 Degrees Centigrade
19th Dimensions: 88 mm (L) x 34 mm (W) x 15mm (H) (BT-232B), Antenna: 11 cm
Remark: All contents are the subject to change without notice.
