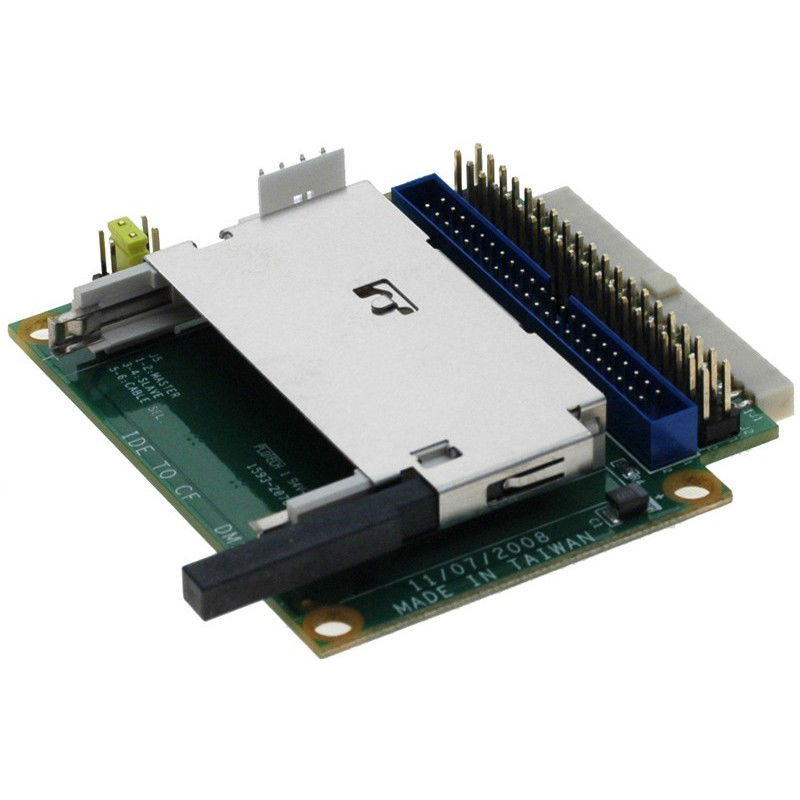

Adapter from IDE to Compact Flash memory card

CompactFlash card interface for PC IDE bus
Suitable for PCs where the CF card is a disk drive

CNV-IDE-CF
351.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The compact reader will be seen as a hard drive connected to the IDE interface. This solution is advantageous within an embedded system and tunnel clients where there is room for a regular hard drive. You can now get CF cards up to 64 GB, but also with an industrial CF card of 16 GB, which has space to install an operating system. With one of these CF card adapters it is thus possible to have a system without a regular hard drive. The transfer speed is typically 10 MB/s depending on the type of CF. CF cards have a lower power than a hard drive. Note the use of adaptrar, it ends with industrial CF cards that can be booted from.

Andet
Strøm via alm. FDD- strømkabel
Tilslutning
40 pin hanstik 44 pin han- og hun-stik

4 other products in the same category:

CF konverter til IDE, 44 pin

CF konverter til IDE, 44 pin

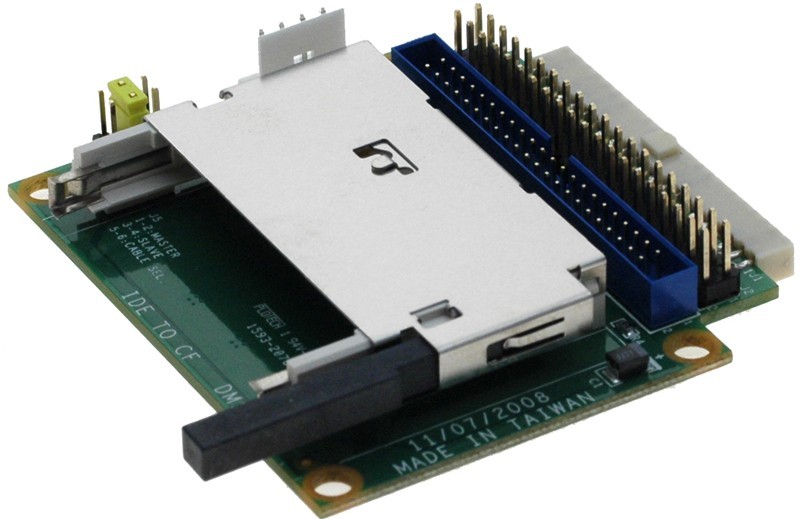

40-pin / 44-Pin IDE to Compact Flash Adapter Board FB4632 / A.

40-pin connector 2.54mm (female type) / 1 44-pin connector 2.0mm (female type)
CompactFlash socket supports (type I / II)
2-pin power connector (FB4632)
upports master / slave select jumper
Onboard access LED indicator
1 fix hole
Dimension: 56.0 mm x 40.0mm

Price 307.00 DKK
Product code: CNV-FLASH-IDE-I+
