Older CPU Card Socket LGA775 CPU PICMG 1.3 Q35 Chipset, WINDOWS 2000, XP, VISTA, Windows 7 Support

Q35 chipset Core 2 Quad/ CORE 2 DUO / Celeron 400 sequence processor (conroe-L)
FSB 800 / 1066 / 1333 MHz
2 x Gigabit Lan
VGA   (GMA 3100), CRT support
SATA II
2 x COM
4X USB 2.0

I775-Q35
DKK3,714.00
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

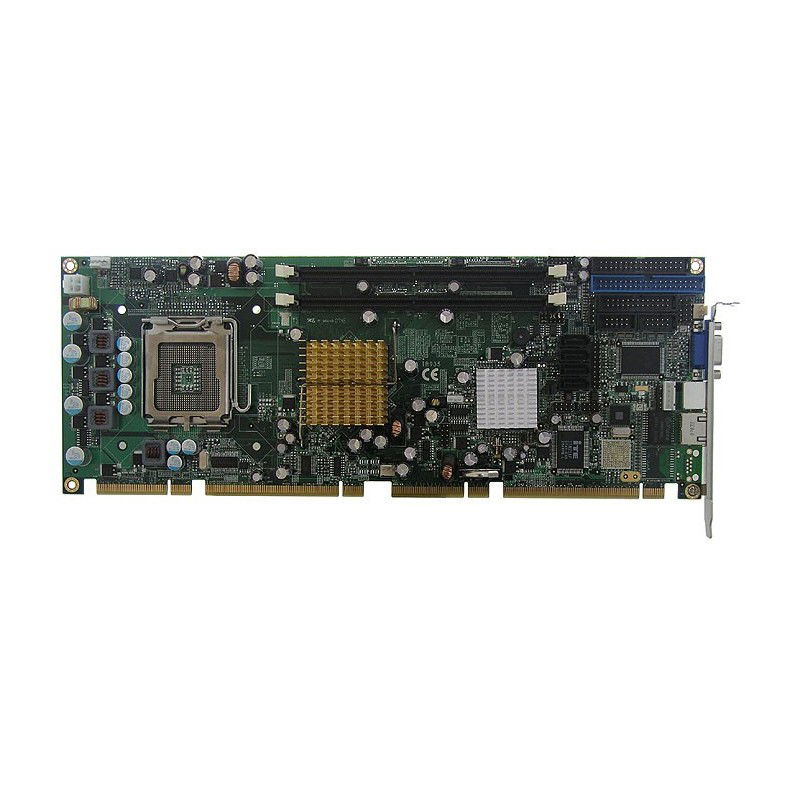

PICMG 1.3 CPU Card with SATA-300 and 2 x Gigabit
CPU Cards Suitable for Older Software Versions.
This CPU Card Supports Windows 2000, Windows XP, Windows Vista, Windows 7.

We offer a complete solution where CPU cards are received in the PC cabinet ready for use.

Contact our sales department regarding. opportunities and prices.

CPU
Intel Core 2 Quad/Duo, Celeron 400 serien. LGA775 sokkel
BIOS
4 Mbit Award flash BIOS med ACPI understøttelse
Chipset
Intel Q35 / ICH9
RAM
2 x 240-pin (dual channel) DDR2 maks. 4 GB, PC2-5400/6400
FSB
800/1066/1333 MHz
Netværk
1 x 1000 Mbit Intel 82566DM med RJ45-stik, 1 x 1000 Mbit Intel 82574L med RJ45 stik
USB
4 x USB 2.0 (Hi-Speed)
Driftstemperatur
0 - 60o C ved 10 – 90 % ikke-kondenserende luftfugtighed
Watchdog
Op til 255 sekunders timeout
Lyd
ICH9 AC97 Codec
Digital I/O
4 indgange og 4 udgange (TTL)
Strømforsyning
Via PICMG bussen og ATX 12V stik (Se kapitel 19 for strømforsyninger)
Grafik
Integreret Intel GMA3100 (1 x DB15HDF VGA-stik)
Drev-interface
1 x ATA/66/100/133, 4 x SATA300
Overvågning
System/CPU - temperatur og - spænding
Mus/tastatur
2 x mini-DIN6 PS/2 via Y-splitterkabel (medfølger)
Parallelle porte
1 x SPP/EPP/ECP, bi-direktionel, med 1 x DB25F-stik
Serielle porte
1 x RS232 (DB9M), 1 x RS232/422/485 (DB9M)
BUS-interface
PICMG 1.3 (PCI Express)
Disketteinterface
1 x FDD diskettecontroller til to 3½” eller 5¼” drev (maks. 2,88 MB)
