Power supply for T & D log-WL5XX series 5VDC
Power supply 230vac for 5 volts
for TD log-wl500gsm
Radio base station retrieves Log data from loggers
base station is a link between loggers and PC
base station data from 100 wireless loggers
Frequency Band Base Station and Data Logger is 870MHz
Up to 150meter - depending on conditions
Greater distance with repeaters (radio-relay stations)
Transfers the log data via GSM 3G GPRS mobile network
USB interface to PC for setup:
base station, connection dock for data Like (Optical )
Protocol: SMTP (POP before SMTP AUTH (login) FTP, SMS
SMTPS (SMTP over SSL)
Temperature: -10 - + 55 ° C
Dimensions: 96 x 66 x 39 mm | Power supplied
only for T&D loggers
LOG WL500GSM series allows you to mix and match a variety of wireless radio communications loggers with different data collectors to meet your needs.

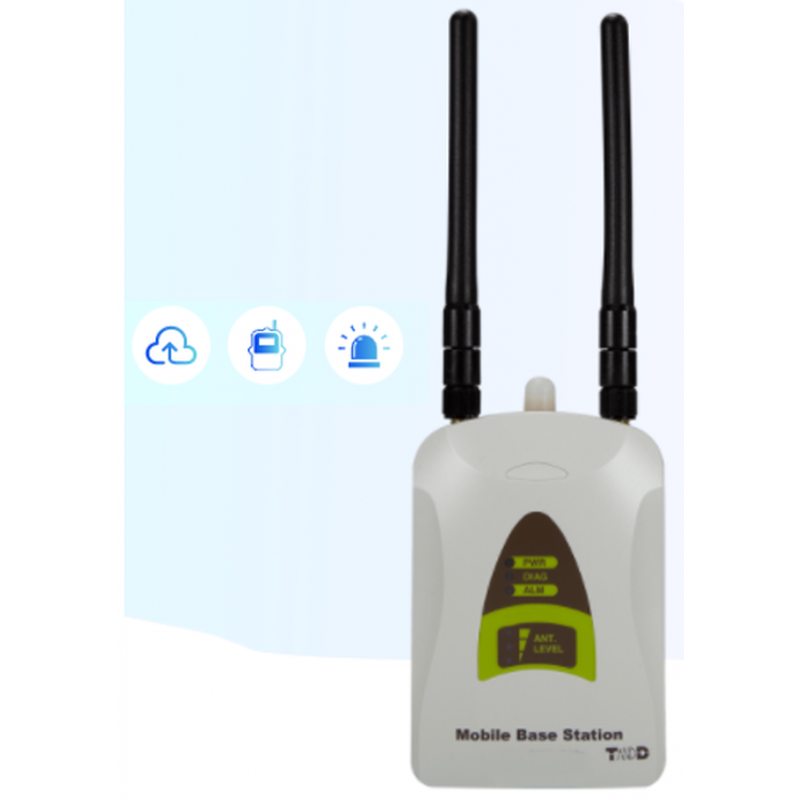

LOG WL500GSM is a data collector equipped with 3G mobile networking. It collects data from nearby dataloggers via wireless radio communications and send them automatically via 3G mobile phone network to the set FTP server or email address.
It is perfect for situations where you have no PC or LAN available, for example. During transport, in greenhouses or on construction sites. As long as you can provide power, you can collect and transfer data without worry and stress.
LOG WL500GSM can be combined with any of our data loggers LOG-WL500 series. And up to 20 loggers can be registered for simultaneous use. Use our software to make settings for mobile communications.
Since it uses the mobile network to transmit data, is all you need to do to ensure a power source and be in the mobile field to send data to an FTP server or to a registered email address.
After a warning message can be sent automatically via email or SMS and / or by connecting a buzzer or lamp to the contact end, you can create an alarm On-site. It can also be used with our free TD WebStorage Service, making it easy to monitor data, see graphs and check warnings from any PC or mobile device's browser.
Power supply 230vac for 5 volts
for TD log-wl500gsm
Wall bracket for log-wl500gsm
Power supply for LOG-WL500GSM
100 - 230vac for 6VDC
Cable length: 1.8m
Connector: Power Jack 3.5 / 1.3mm
Wireless Temperature Logger with Wifi, Bluetooth
Battery operation from 10 days (1 measurement per minute auto-upload)
Battery operation up to 1 year (1 measurement per hour auto-upload)
Longer battery operation with Bluetooth turned off during logging
2 x 8,000 measurements in memory with Date and time stamp
2 pcs. external thermistor sensors
Accuracy: +/- 0.3 ° C at -20 - + 80 ° C, +/- 0.5 ° C up to 110 ° C
Measuring solution: 0.1 ° C
Sensor response time: approx. 75 seconds
Free Cloud service: T&D WebStorage
LCD display shows current measurements
PC software: tools and presentation included
USB port
Dimensions: 78 x 58 x 26 mm
Battery type: AA
Free T&D WebStorage Cloud Service
LOG Data collection program DAQ to LOG Mxxx series
Interface: USB, COM port, Ethernet via Server devices
Real-Time log view
Alarm limit defining
processing and export tool < br> Powerful program conversion algorithms
Professional graphic display of Log data
Supports Windows OS
Web-based data logger for temperature and moisture
-55 - +125°C, -40 - +80°C, 0 - 100% RH
4 pcs. 1-wire bus to 16 sensors, each
Max. 64 pcs. Temperature or temperature / humidity sensors
Max. Distance to sensors: 180 meters
Tasks: 50 Scheduled, 50 Conditional, 20 Override
Email Alarms, custom (encrypted email servers, such as Gmail)
RTC watch with NTP server synchronization
No Software Required
Configurable Logging
Graph (Logged Data)
HTTPS / TLS encrypted
Static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site Updated
for DIN rail / wall
Supply voltage: PoE or 9 - 28VDC, 134mA
Dim: 98 x 78 x 36 mm
CO2 - CO - temperature - humidity
measurement of carbon monoxide and carbon dioxide
alarm device at high concentration
color LCD display with touch
CO 9-1000 ppm
CO2 0-9999 ppm
Electrochemical sensors (NDIR CO2 sensor)
temperature of -10 - + 50 ° C, humidity 0 to 100% RH
Up to 450,000 logs with date and timestamps
APP: iOS APP and Android APP, powerful software
DCON, Modbus RTU / TCP and MQTT protocols
RS-485 2-wire / Ethernet RJ45
Relay output for local alarm or building management
Power supply: PoE and 12 - 48VDC ca. 3.5Watt
IP43 sealed enclosure (CO2 + temperature sensor)
Dimensions: 114 x 106 x 56 mm
DIN or wall mounting bracket
