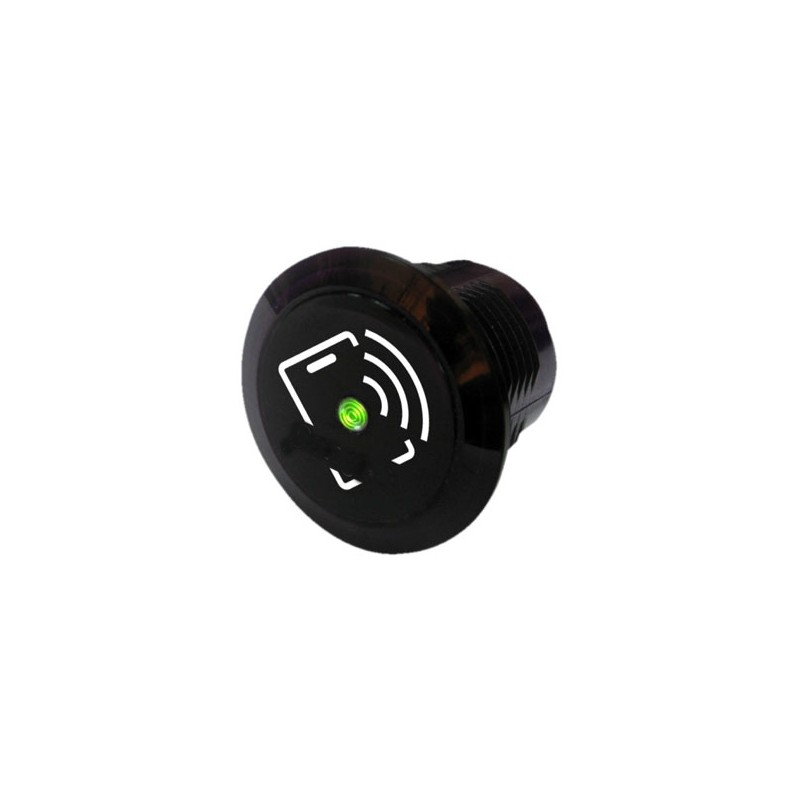

Compact Access Control for Mifare RFID
40mm in diameter, 30.2mm long
Thread is 28 mm
Can hold up to 1000 Mifare TAGs/cards
Relay output COM, NO, NC (changeover switch)
Adjustable hold timer - (potmeter) 0.5 - 100 sec.
Users are created with "master card"
Users are removed with "master card"
No software, no PC or terminal
3 different LED colors
Makes sound when programming
IP54 sealed front
Supply voltage: 12VDC / 70mA
No physical interface
Compact and smart RFID access control for door, elevator, cabinets, drawers, locks and the like. Built-in antenna, relay and variable timer that can be mounted as an independent contact controller with the possibilities for a maximum of 1,000 RFID card access with variable door release time adjusted by potentiometer. It can set a specific card as master card, clear single card as well as delete all cards at Master card programming.
Net adapter 12V, 1A - Switch mode
Output: 12VDC / 1Amp
230VAC input
Power plug: 5.5 / 2.5 mm
Cable color: + Red, - White
2 x 230VAC power relay /16A – resistive load.
2 x DC switched outputs up to 40VDC/6A, also as PWM for LED, FAN, etc.
2 x independent inputs: 230VAC and up to 24VAC/24VDC, SMS alerts for power failure
SIM card and SD card
Backup battery (not included) as an option – Li-Ion 3.7V (14500)
Switch appliances on and off with SMS messages
GPRS M2M function, TCP/IP Get to directly send input status to Server
Get XML status from server to set device outputs.
Scheduled automatic switching on and off of appliances
Sends power failure warning and recovery.
Restarting appliances, such as servers.
Monitoring of 2 x A/D inputs AC/DC voltages with autodetect
4 x digital inputs DIN1, DIN2, DIN3, DIN4 for DC voltage.
Universal bus (1-wire) for temperature and humidity sensors.
Thermostat function.
Alarm function: Temperature alarm, Humidity alarm, A/D limits, DI change
Alarm in case of jamming of a GSM signal.
Up to 12 alarm numbers, each can be set for different events
Up to 1000 authorized users and 2 administrator numbers.
Bluetooth
All inputs are SO compatible
Easy install
Simple to set up
Promotes hands hygiene and germs free at workplace
Hands hygiene traceability
Interface: Wire, RS232, RS485, Wiegand
Power require: 9-12VDC/AC / 1A
With Relay to be connected to electronic door lock
Weight: 110g
Size: 90 x 85 x 40 mm
Accessories for DOOR-MAGNET+
angle bracket for outward door (outswing)
The kit consists of 1 part
heavy aluminum profile
target: See drawing
Door magnet with holding power up to 45 kg
Aluminum + steel and vandal-proof
Supply voltage for team: 12 or 24VDC, 4 Watt
Automatic switching between 12 and 24VDC
The door is locked with applied voltage
No holding power without tension
Operating temperature: -10 - 55°C
Magnet: 70 x 31 x 20 mm
Amatur plate: 60 x 32 x 8 mm
Weight: 300g
Purchase additional access control - see Accessories
