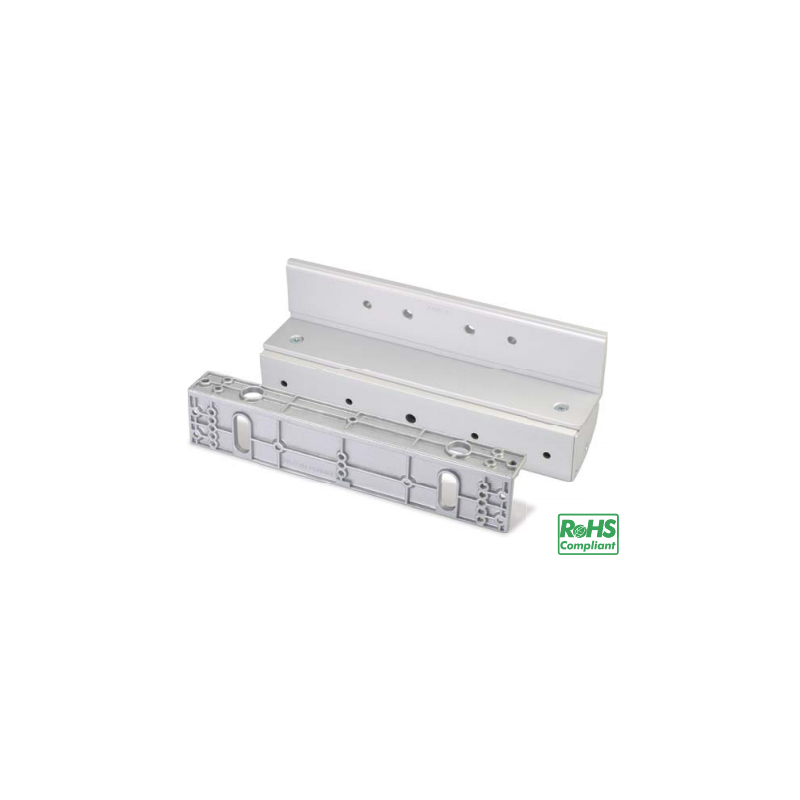

Z-bracket for door magnet DOOR-MAGNET-LOCK6 If to be mounted on inward door

door magnet with clamping force up to 545kg
Aluminum housing and vandal proof
Supply voltage for team: 12VDC or 24VDC, 0.5A / 0,25A
No holding power at any voltage
Operating temperature: -10 to + 55°C
Magnetic: 267 x 68 x 40 mm
Door-plate: 185 x 61 x 16 mm
Mounting plate for the frame: 267 x 40 x 8 mm
Anti-magnetic feature
Weight : 4,9kg

Electric door lock that is locked without tension.
Holding force 1000 KG
supply: 12 / 24V DC 130 / 65mA when activated
Suitable for Scandinavian types
Operating temperature: -20 ° C to + 40 ° C
Multi voltage 12-24V AC / DC
approved for use in fire-resistant doors E120 / A120 / EI120
Fail secure (PTO): SL 510
Fail safe (PTL): SL 511
Latch bolt adjustable left / right
Built in "By status" sensor
Status monitoring: latch, anti-thrust bolt & amp; live handle
Mechanical key override

Compact Access Control for Mifare RFID
40mm in diameter, 30.2mm long
Thread is 28 mm
Can hold up to 1000 Mifare TAGs/cards
Relay output COM, NO, NC (changeover switch)
Adjustable hold timer - (potmeter) 0.5 - 100 sec.
Users are created with "master card"
Users are removed with "master card"
No software, no PC or terminal
3 different LED colors
Makes sound when programming
IP54 sealed front
Supply voltage: 12VDC / 70mA
No physical interface

Output contact for access control with cunduct / breaking function
robust plastic house with steel Back plate
Contact: NO / NC / COM
Momentary Contact press
Contact: Max 3A
Size: 86 x 86 x 42 mm
Passive Exit Button
