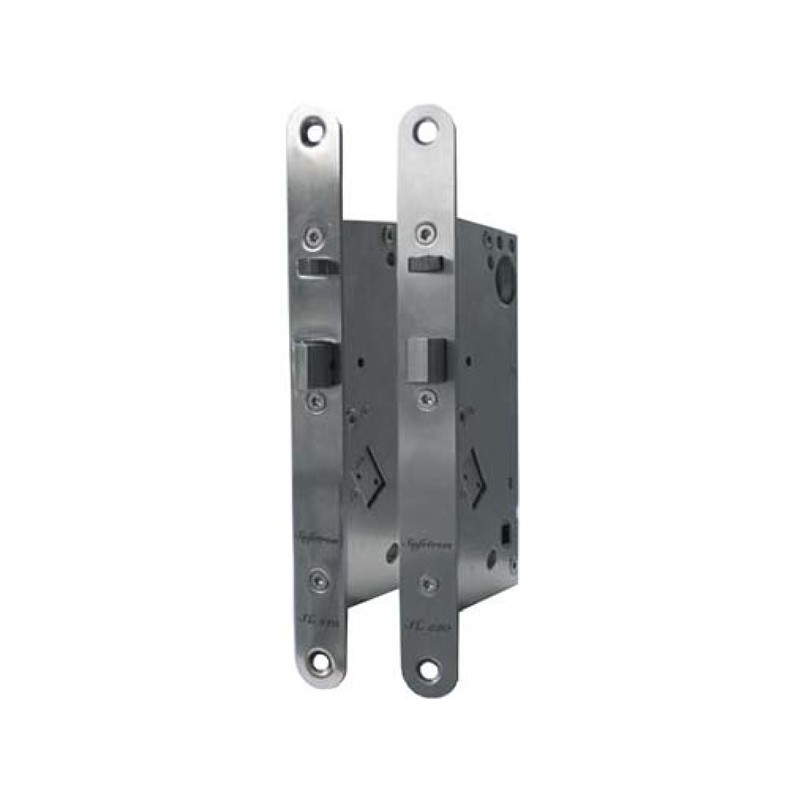

Electric door lock that is locked without tension.
Holding force 1000 KG
supply: 12 / 24V DC 130 / 65mA when activated
Suitable for Scandinavian types
Operating temperature: -20 ° C to + 40 ° C
Multi voltage 12-24V AC / DC
approved for use in fire-resistant doors E120 / A120 / EI120
Fail secure (PTO): SL 510
Fail safe (PTL): SL 511
Latch bolt adjustable left / right
Built in "By status" sensor
Status monitoring: latch, anti-thrust bolt & amp; live handle
Mechanical key override
Suitable for use in high-traffic applications. Suitable for security applications such as perimeter doors, entrance doors, gates and other applications in office, commercial and industrial premises as well as entrance doors and common areas in residential areas.
Active: Locked with or without excitement
Tilbehør: Strømforsyning til IRISID-7111-U1
stand-alone adgangskontroller Mifare
Miniature electronic holding magnet for cabinets
Supply voltage 12 VDC, minimum 140mA
Holding force: Up to 36 kg
with Bond sensor - Relay output COM, NC
Bond sensor is a closed indicator - Can inform the controller
Operating temperature: -10 ~ 55ºC
IP65 Stainless steel with epoxy filling
Magnet dimensions: 70 x 38 x 26 mm
Holding plate dimensions: 80 x 32 x 18.5 mm
Weight 350 g
door magnet with clamping force up to 545kg
Aluminum housing and vandal proof
Supply voltage for team: 12VDC or 24VDC, 0.5A / 0,25A
No holding power at any voltage
Operating temperature: -10 to + 55°C
Magnetic: 267 x 68 x 40 mm
Door-plate: 185 x 61 x 16 mm
Mounting plate for the frame: 267 x 40 x 8 mm
Anti-magnetic feature
Weight : 4,9kg
