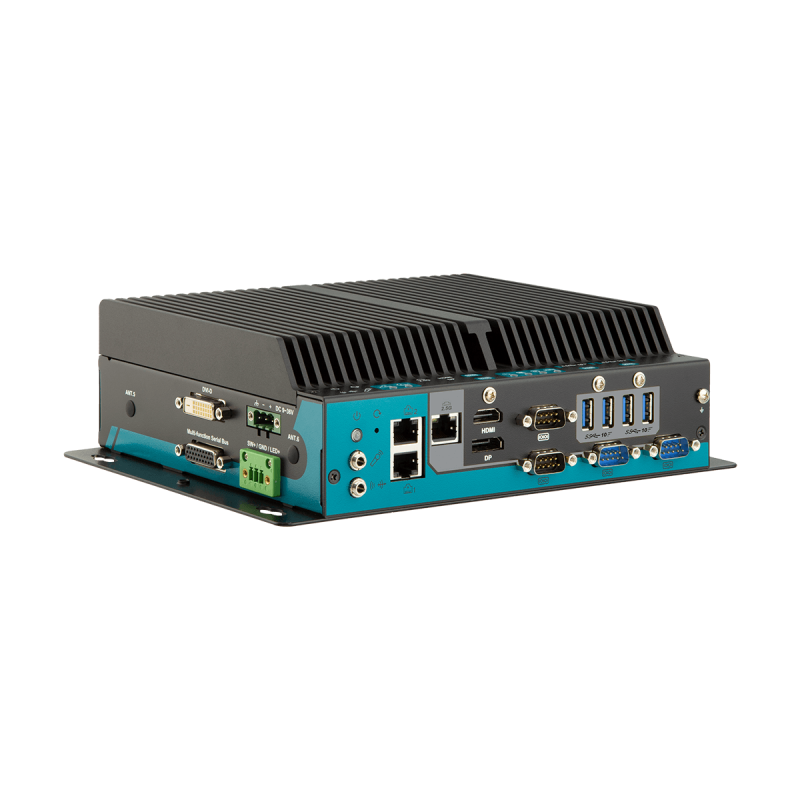

Fanless Embedded PC with 11th Gen. Intel® i7 CPU (Option: i3 and i5)
11th Gen. Intel® i7 CPU (Optional: i3, i5)
2 x 260-pin DDR4 SO-DIMM (64GB Max)
1 x M.2 M-Key, 1 x 2.5” HDD/SSD
16 x I/O, 4 x COM, 3 x LAN(2xPoE), 4 x USB3.1, Remote PWR
Video output: DVI-D, HDMI, DP
Mounting: Wall-mount (Option: DIN-rail or VESA)
Power Input: 9~36 VDC
Dimensioner: 210x180x70mm (WxDxH)
Operating Temp.-10 ~ 60 °C With airflow
Robust and stable industrial embedded PC with 11th Gen. Intel® Core ™ in CPU.
Can be supplied complete with CPU, RAM and SSD / HDD. Can be supplied with other configuration, contact sales.
Voltage supply is purchased separately
- CPU
- Soldered onboard Intel® i7/ i5/ i3 Processor (Default: i3 CPU Tiger Lake-U)
- Chipset
- soc
- Certifications
- CE, FCC Class A
- Chok/Vibration
- 5~500Hz 3 Grms X,Y,Z axis w/ SSD, 40G peak acceleration (11 m sec. duration), operation w/ SSD
- Digital I/O
- 8 x DI, 8 x DO w/ 1.5KV isolation
- Dimensioner
- 210 x 180 x 70 mm
- Driftstemperatur
- -10 ~ 55 °C
- Hukommelse
- 1 x M.2 M-Key 2242/2280, 1 x 2.5” HDD/SSD
- Hukommelse
- 2 x 260-pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 64GB
- Input
- DC 9 ~ 36V (3-pin terminal block: V+, V-, GND)
- Montering
- Wall-mount (standard) DIN-rail or VESA mount (optional w/ CTOS bracket)
- Netværk
- 2 x RJ-45 ports for GbE LAN (PoE complies with IEEE802.3af), 1 x RJ-45 ports for 2.5 GbE LAN (iAMT support w/ i5/i7 skus)
- Porte
- 2 x RS232 (DB-9 male connectors), 2 x RS232(Default) / 422/ 485 (RI/ 5V/ 12V) (DB-9 male connector/ Switch via BIOS)
- Udvidelser
- 1 x full mPCIe slot, 1 x M.2 B-Key 2242/3042/3052
- USB
- 4 x USB 3.2 Gen2 (2 w/ independent full speed), 1 x USB 2.0 onboard for encryption dongle (Type A)
- Video
- 1 x HDMI 2.0b, 1 x DisplayPort 1.4, 1 x DVI-D connector
- Weight
- 3.7kg
4 other products in the same category:
Embedded PC EN-50155 Certified for Railway use, Xeon, I3,I5,I7 CPU sypport, 6xEthernet, 4x USB, VGA, DVI-D
CPU support gen.6/7 Intel® Xeon® E3/ 6th & 7th generation Core™ i7/ i5/ i3 processor in LGA1151 socket
Fanless design
4 x 802.3af Gigabit PoE ports by M12 connectors
Support RTC battery service window
2 x mPCIe slots for optional Wi-Fi/ BT/ 3G/ 4G/ GPS modules
1 x M.2 (NGFF) M-Key(2242) socket for storage module
1 x SIM card sockets
Dimensions (W x D x H) 225 x 292 x 90 mm
Wide temperature range from -40°C to 70°C
Wide range DC power input (9~36V)
EN-50155 certified
Embedded PC, 1Ghz, Fanless, Vesa 75, 1GB RAM, 1920x1440,
& nbsp; Embedded PC with Low Power Saving & nbsp;
Processor: Vortex86DX3
1920 x 1440 Pixels
Network: LAN, WIFI, LTE, 3G
1 x MPCIe & amp; SIM card
1 x SD & nbsp;
3 x USB
1-2 LAN RJ45
GPIO
Up to 2GB RAM DDR3
OS support: (Windows 7, XP, etc.) Linux, and windows embedded us.
Supports Azure IoT Edge & nbsp;
8 "Panel PC, 800x600, resistive touch, USB, RS232, Fanless
8 "Panel PC with touch screen
CPU: Intel Baytrail-D J1900
3 x USB (1 x USB on front panel, 2 x USB internal)
3 x RS232
OS: Windows 7 , 8.10, Linux
1 x Intel RJ45 LAN
Supply 9-34V DC
64 GB / 1 x mSATAIII
2GB RAM (Optional 16GB)
Windows 7.8,10, Linux
Optional: capacitive touchscreen
