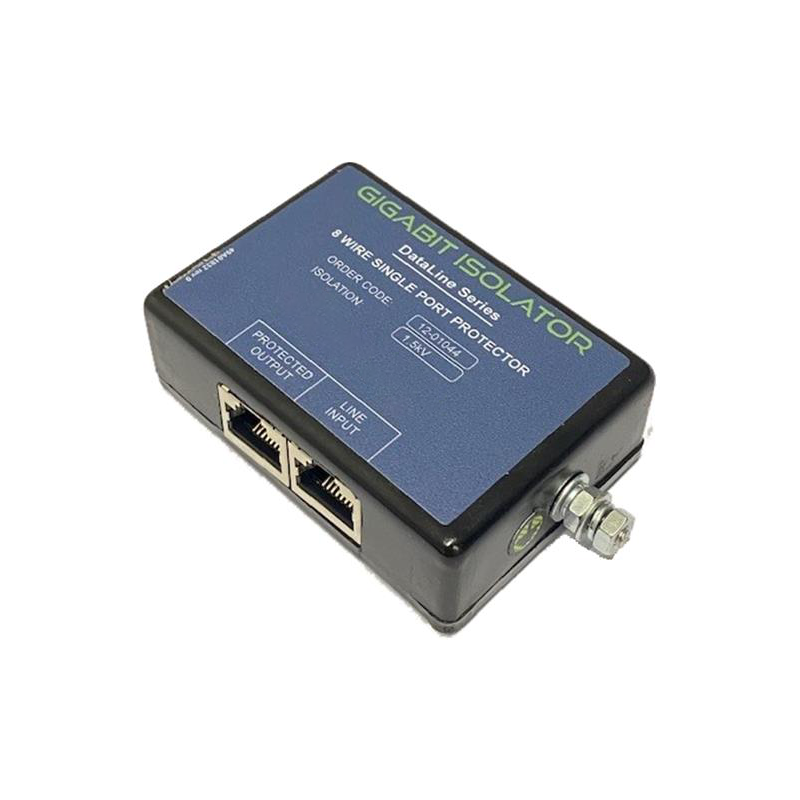

Isolator for 1000 Mbit network, one port
Insulation on all 4 pairs.
Transient protector - Remember the earth connection (screw)
2 x RJ45 female
Max. Discharge current (fine LL): 40A (8/20 microSec)
Max. Discharge current (coarse LE): 2.5 kA (8/20 microSec)
Residual voltage: <5V (1.2/50 microSec)
Hi-Pot (Pri to Sec) isolation: 1500Vrms, 1mA, 60 seconds
Cannot transmit PoE
Dimensions: 72 x 50 x 25 mm
Galvanic network isolation. Provides optimal protection with galvanic isolation between input and output.
Transient protection up to 40Amp for 20micro seconds.
Transient protection for 10/100 Mbps network
4kV to ground.
2 x RJ45 female
Ground wire is to be connected.
Surge Protection for 10/100 / 1000Mbit network
Review voltage: 5V / 300mA
review loss: Less than 0.2dB
2 x RJ45 female (in / out)
Protected Pin: 1 - 8 (data)
Threshold at 15V
Max Transient current: 5 - 15k Amp
Operating temperature: -40 - +70°C
Moisture: less than 90% RH
Size: 112 x 38 x 30 mm
Weight: 150g
Earth cable of more than 2.5kvmm must be shorter than 1 meter
Earth resistance must be less than 4 ohms
Nothing can protect against a direct lightning strike
PoE surge protection for 10/100/1000Mbit networks
Supports PoE voltage 48VDC / 40Watt
Nominal discharge: 2.5kA, max. 5kA (8/20myS)
Response time: less than 1ns (nano-second)
Transmission loss: below 0.2dB
2 x RJ45 female (in / out)
Protected pin: 4/5, 7/8 (power supply + data), 1 - 8 (data)
Operating temperature: -40 - +70°C
Humidity: less than 90% rh
Dimensions: 93 x 55 x 35 mm
Weight: 73g
DIN bracket
Ground cable of more than 2.5kv must be shorter than 1 meter
Ground cable thickness: Min. 2.5 sq.mm
Ground resistance must be less than 4 ohms
Nothing can protect against a direct lightning strike
Insulator for up to 80mbit network speed
1 Port
1 x RJ45 female
1 pc ½meter cable with RJ45 male
12kv isolation voltage.
Unable to transfer PoE
